Omron FH-L550 Setup Manual

2-1-3
FH-L Series
Vision System FH-L series is the small and low-cost BOX type Sensor Controller having functions and
high-speed needed to built into a machine, and safety
, reliability, and maintainability as an industrial
controller.

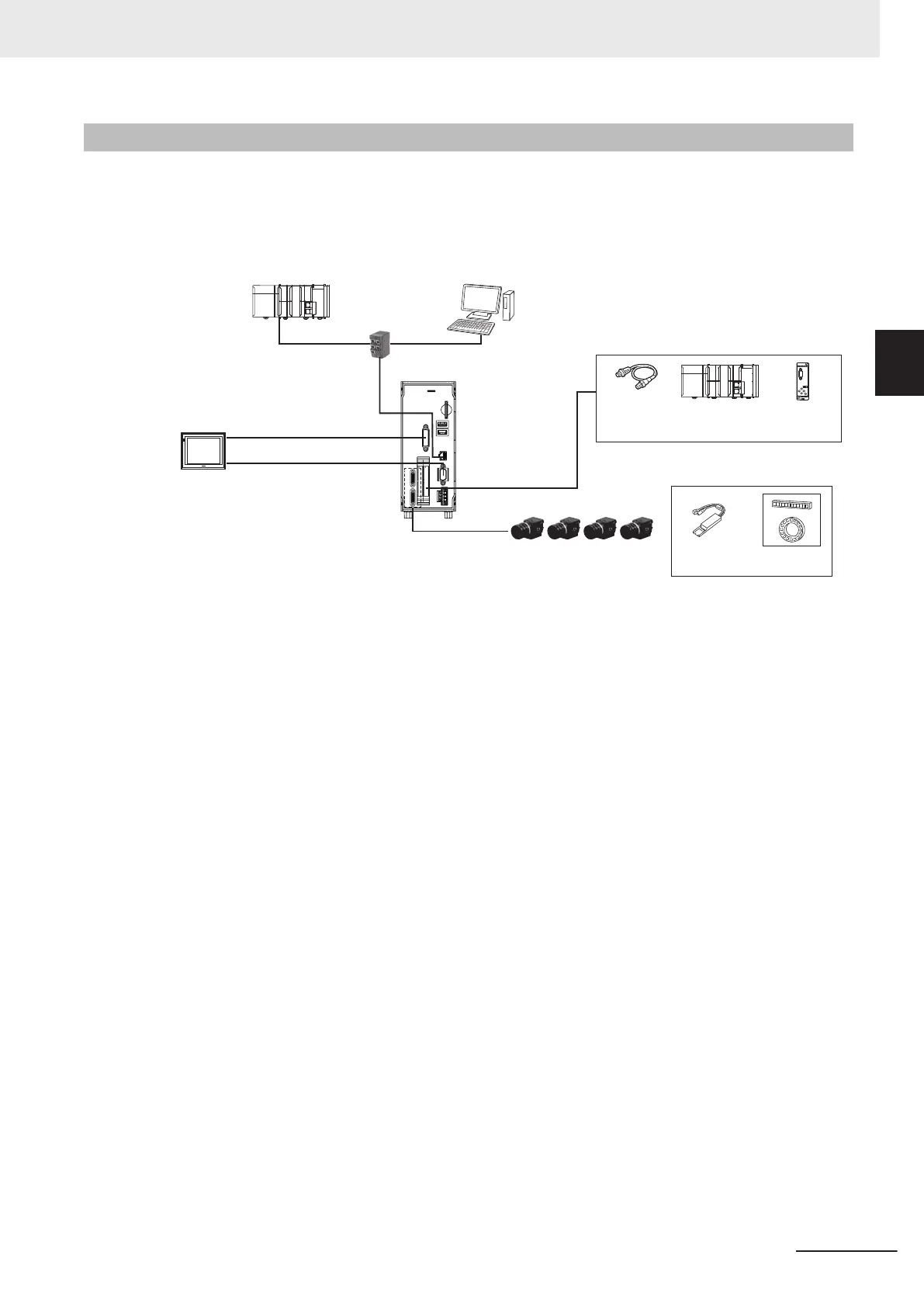

This series can connect with up to four cameras and transmits images faster than that in the conven-
tional models.
cable tor Touch Panel
interface
Touch Panel Monitor
FH-MT12
special cable for
Touch Panel Monitor
PLC for I/O control
Personal
computer
Lighting
Controllers
External
Lightings
Cameras
Ethernet Cables
*1
special cable for
cameras
special cable for I/O
PLC for
I/O control
Vision System
FH-L Sensor Controller
Industrial Switching Hubs for
EtherNet/IP and Ethernet
Trigger input
sensor
Lighting
Controllers
*1. To use STP (shielded twisted-pair) cable of category 5 or higher for Ethernet and RJ45 connector.
2 Overview of FH series
2-5
FH Series Vision System Hardware Setup Manual (Z366-E1)
2-1 Overview of System
2
2-1-3 FH-L Series

Omron FH-L550 Specifications

General

Brand	Omron
Model	FH-L550
Category	Machine Vision Systems
Language	English
