l

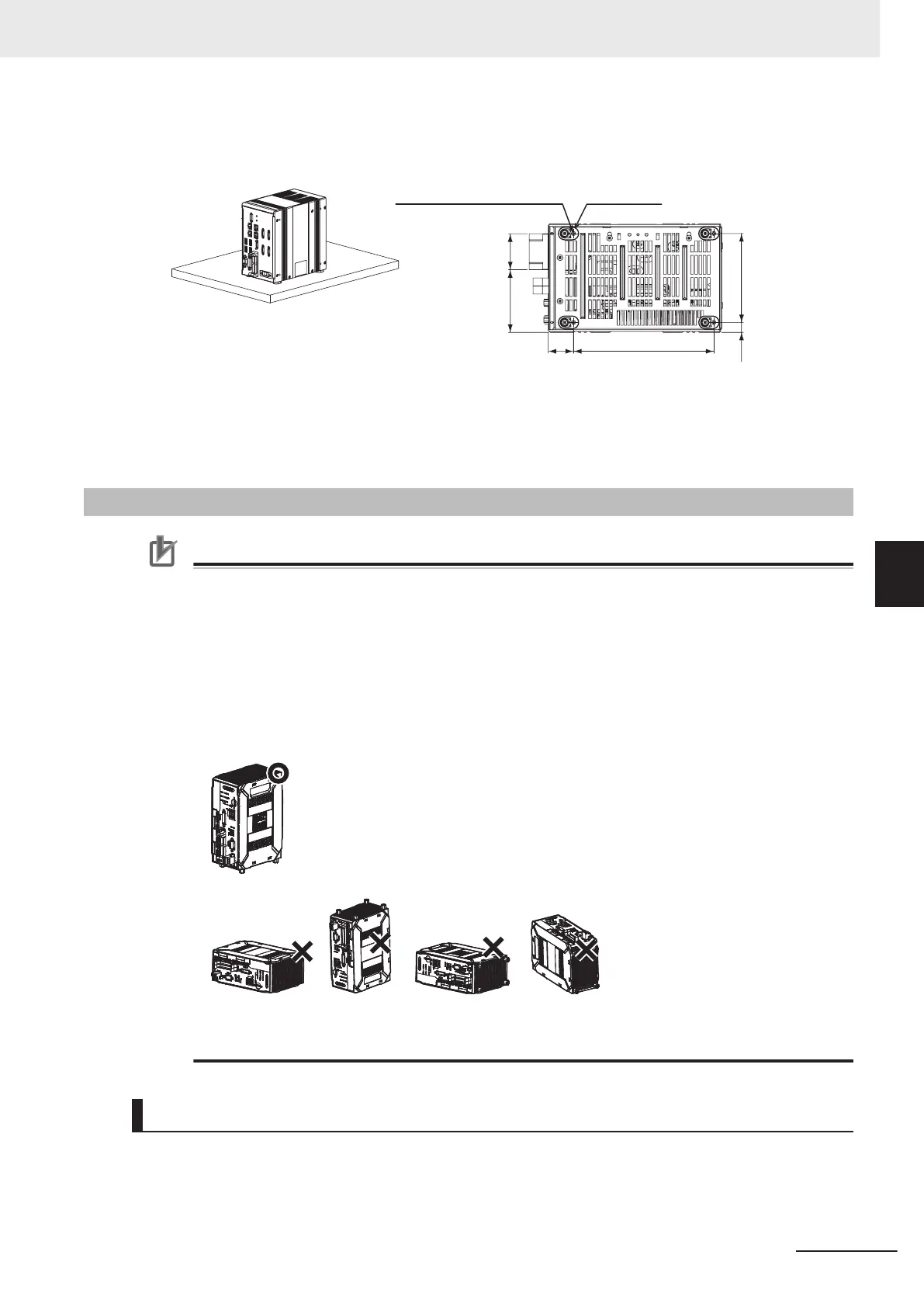

Bottom Mounting
38.1
26.7
148.5
10.5
94
66.2
4-M3 depth 4.5 (mounting screw hole) Insulating leg: 4
• Bottom
(Unit: mm)
* Do not remove the Insulating leg. Fix the Insulating leg to secure the
ventilation path.
* Recommended tightening torque: 0.54 N•m to 0.6 N•m
* The tolerance is ±0.2 mm.
5-8-3
FH-L Series
Precautions for Correct Use
Ambient Temperature
•
Install and store the product in a location that meets the following conditions:
• Surrounding temperature of 0 to +55°C (-25 to +70°C in storage)
• Relative humidity of between 10 to 90%
• Do not let the ambient temperature exceed 55°C (131°F).
• Provide a forced-air fan cooling or air conditioning if the ambient temperature is near 55°C
(131°F) so that the ambient temperature never exceeds 55°C (131°F).
Orientation of Product
• For good heat dissipation, install the product only in the position shown below so as not to
block the ventilation holes.
• Do not install the product in the following positions.
• For good ventilation, provide a clearance of 50 mm or more above the Sensor Controller
away from other devices in the normal floor mounting. For the right and left sides, back side,
for other devices, or Sensor Controller 25 mm or more.
Accessibility for Operation and Maintenance
Connect the cable with securing the connector length and the minimum bending radius to the Sensor
Controller.
5 Setup and Wiring
5-33
FH Series Vision System Hardware Setup Manual (Z366-E1)
5-8 Installation in a Control Panel
5
5-8-3 FH-L Series
