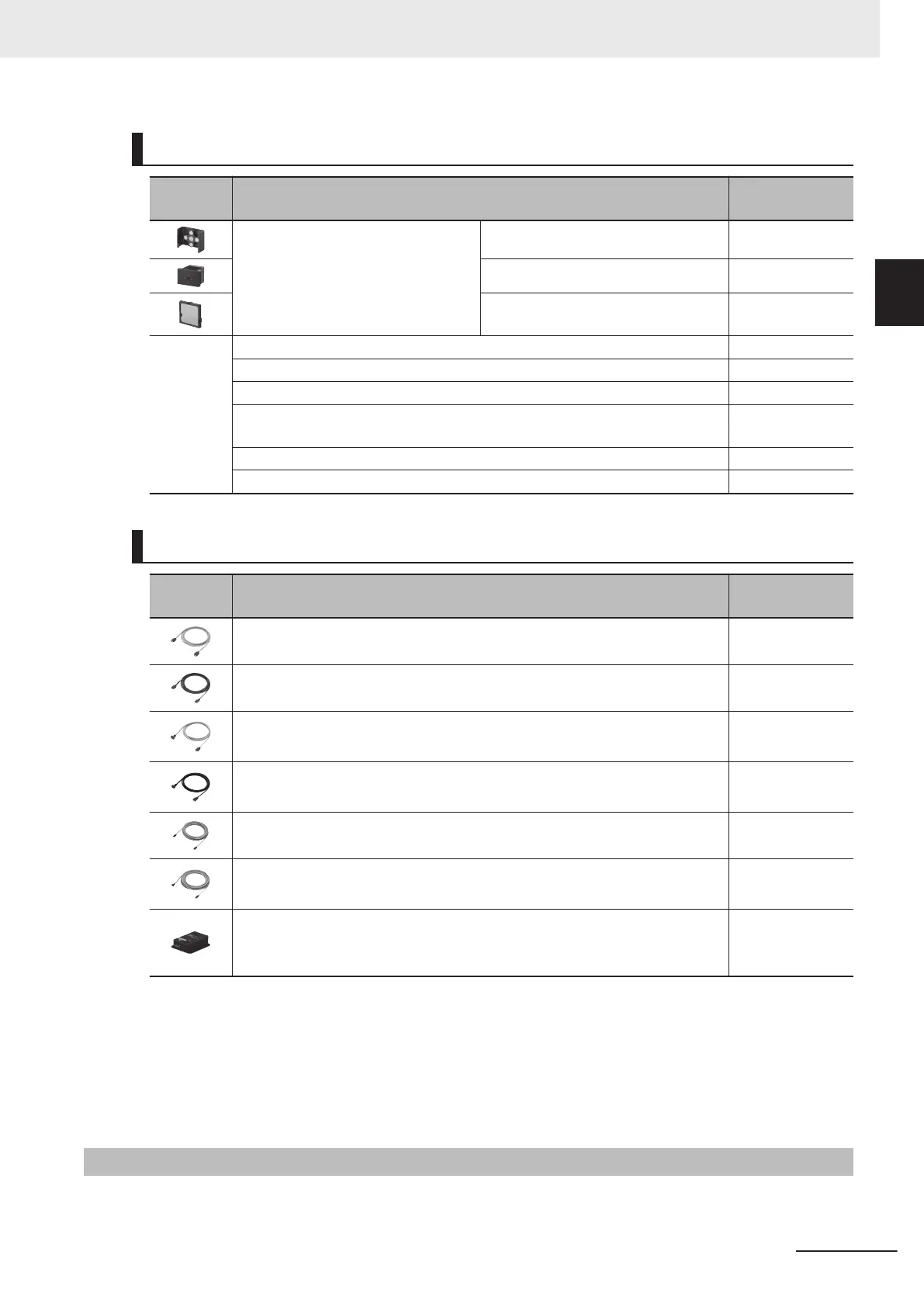

Camera Mounting Bracket
Appear-
ance
Description Model
For Intelligent Compact Digital Cam-
era
Mounting Bracket FQ-XL
Precise Mounting Brackets FQ-XL2
Polarizing Filter Attachment
(Packaged item)
FQ-XF1
-
Mounting Base for FZ-S£, FH-S£05R, FH-S£X
FZ-S-XLC
Mounting Base for FZ-S£2M
FZ-S2M-XLC
Mounting Base for FZ-SH£
FZ-SH-XLC
Mounting Base for FH-S£, FZ-S£5M£, FH-S£X05, FH-S£02, FH-S£04,
FH-S£X12, FH-S£21R
FH-SM-XLC
Mounting Base for FH-S£12
FH-SM12-XLC
M42 - F Mount Conversion Adapter FH-ADF/M42-10
Camera Cable
Appear-
ance
Description
Model
*1
Camera Cable
Cable length: 2 m, 3 m, 5 m, or 10 m
*2
FZ-V3 £M
Bend resistant Camera Cable
Cable length: 2 m, 3 m, 5 m, or 10 m
*2
FZ-VSB3 £M
Right-angle Camera Cable
*3
Cable length: 2 m, 3 m, 5 m, or 10 m
*2
FZ-VSL3 £M
Bend resistant Right-angle Camera Cable
*3
Cable length: 2 m, 3 m, 5 m, or 10 m
*2
FZ-VSLB3 £M
Long-distance Camera Cable
Cable length: 15 m
*2
FZ-VS4 15M
Long-distance Right-angle Camera Cable
*3
Cable length: 15 m
*2
FZ-VSL4 15M
Cable Extension Unit
Up to two Extension Units and three Cables can be connected
(Maximum cable length: 45 m
*2
)
FZ-VSJ
*1.
Insert the cables length into £ in the model number as follows. 2 m = 2, 3 m = 3, 5 m = 5, 10 m = 10
*2. The maximum cable length depends on the Camera being connected, and the model and length of the Ca-
ble being used. For further information, please refer to 3-3-4 Cable Connection T
able on page 3-42 and
3-3-5 Cable Extension Units on page 3-46.
When a high-speed digital CMOS camera FH-S£02/-S£04/-S£12 is used in the high speed digital mode of
transmission speed, two camera cables are required.
*3. This Cable has an L-shaped connector on the Camera end.
1-2-3
Monitor
1 Confirm the Package
1-7
FH Series Vision System Hardware Setup Manual (Z366-E1)
1-2 Sold Separately
1
1-2-3 Monitor
To Next Page
