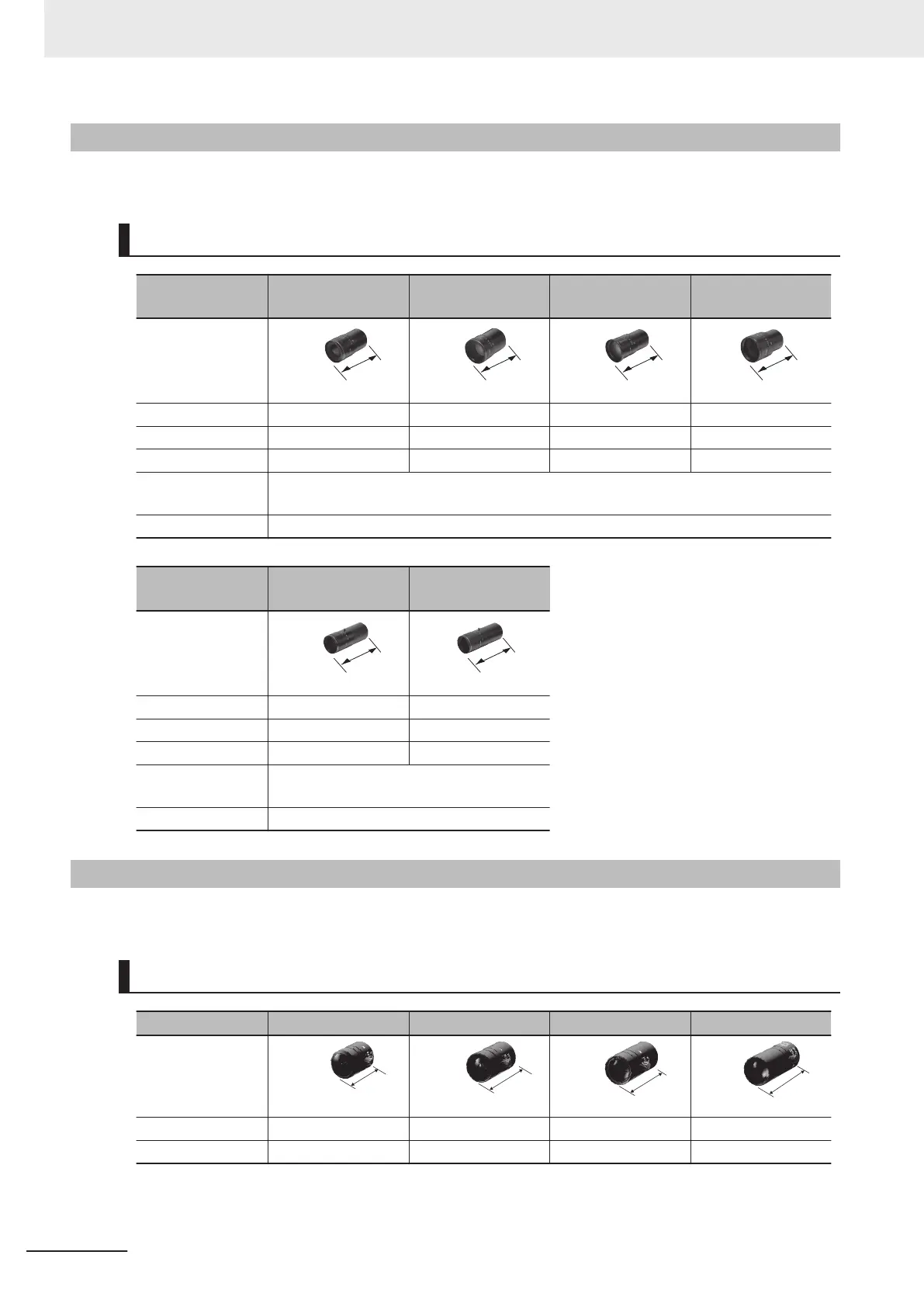

M42-mount Lens for Large Image Sensor (VS-L/M42-10 Series)
FH-S£12 is recommended.
Specification
Model
3Z4S-LE
VS-L1828/M42-10
3Z4S-LE
VS-L2526/M42-10
3Z4S-LE
VS-L3528/M42-10
3Z4S-LE
VS-L5028/M42-10
Appearance/
Dimensions
(Unit: mm)
94
58.5 dia.
80
58.5 dia.
108
64.5 dia.
94.5
66 dia.
Focal length (mm) 18 25 35 50
Aperture (F No.) 2.8 to 16 2.6 to 16 2.8 to 16 2.8 to 16
Filter size M55.0 P0.75 M55.0 P0.75 M62.0 P0.75 M62.0 P0.75
Maximum sensor
size
1.8 inch
Mount M42 mount
Model
3Z4S-LE
VS-L1828/M42-10
3Z4S-LE
VS-L2526/M42-10
Appearance/
Dimensions
(Unit: mm)
129.5
55.5 dia.
134.5
54 dia.
Focal length (mm) 85 100
Aperture (F No.) 4.0 to 16 2.8 to 16
Filter size M52.0 P0.75 M52.0 P0.75
Maximum sensor
size
1.8 inch
Mount M42 mount
3-4-6
Lenses for Small Camera (FZ-LES Series)
FZ-SF, FZ-SFC, FZ-SP, and FZ-SPC are recommended.
Specification
Model FZ-LES3 FZ-LES6 FZ-LES16 FZ-LES50
Appearance/
Dimensions
(Unit: mm)
12 dia.
16.4
12 dia.
19.7
12 dia.
23.1
12 dia.
25.5
Focal length (mm) 3 6 16 30
Aperture (F No.) 2.0 to 16 2.0 to 16 3.4 to 16 3.4 to 16
3 Configuration
3-54
FH Series Vision System Hardware Setup Manual (Z366-E1)
