Omron FH-L550 Setup Manual

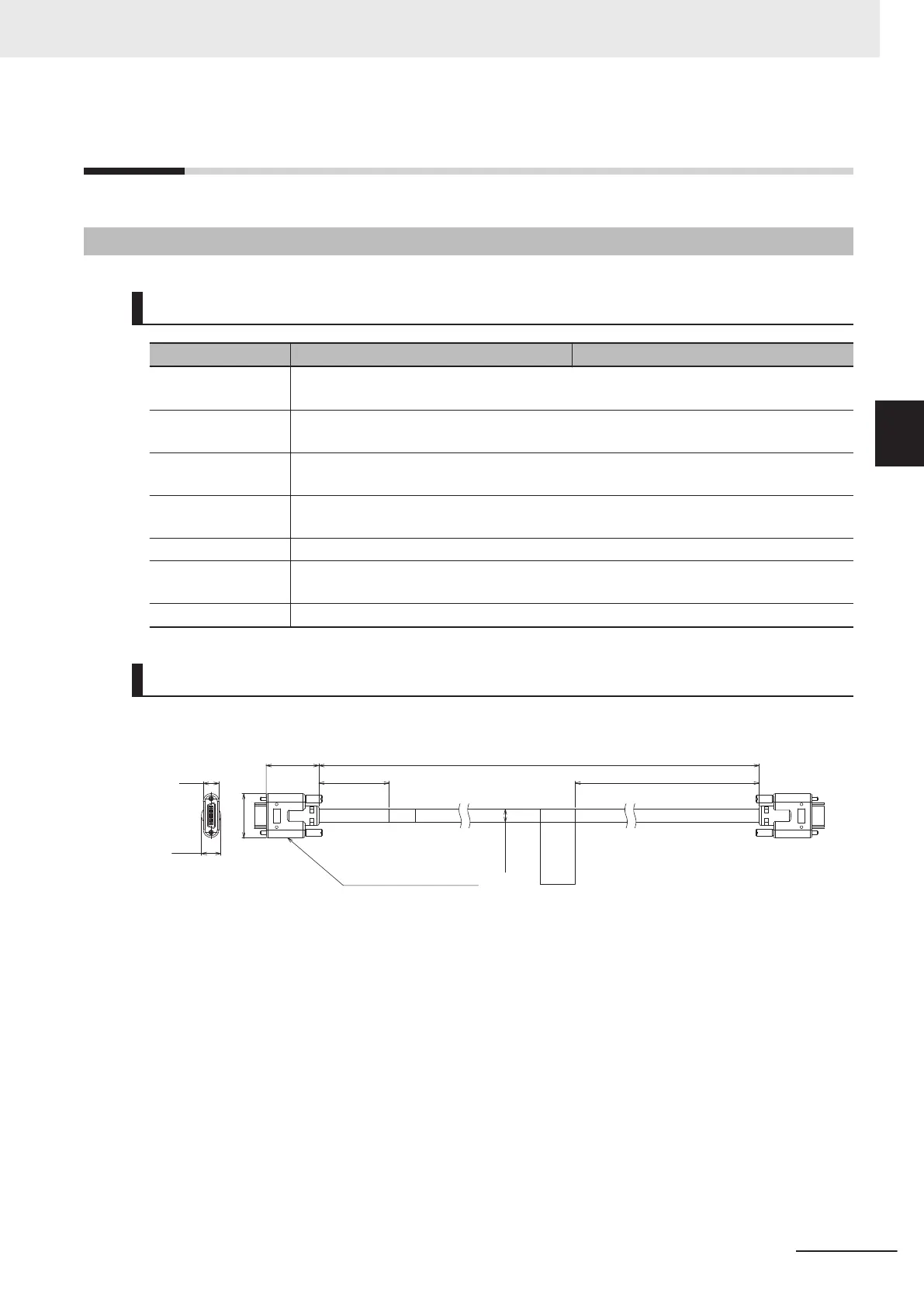

3-3
Camera Cable
3-3-1
Camera Cable and Right-angle Camera Cable
Specification
Model FZ-VS3 (2m) FZ-VSL3 (2m)
Vibration (resisnt-
ance)
10 to 150 Hz, Single amplitude 0.15 mm, 3 directions, 8 strokes, 4 times
Ambient tempera-
ture range
Operation and storage: 0 to +65°C (with no icing or condensation)
Ambient humidity
range
Operation and storage: 40 to 70% (with no condensation)
Ambient atmos-
phere
No corrosive gases
Material Cable sheath, connector: PVC
Minimum bending
radius
69 mm
Weight Approx. 170g
Dimensions
l
Camera Cable: FZ-VS3
26-pin
rectangular connector
(40)
(100)
7.5 dia.
(25)
L (*1)
(*2)
(30)
(9)
(11)
*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity
. Please ensure that the name plate side of the cable is con-
nected to the controller.
(Unit: mm)
3 Configuration
3-39
FH Series Vision System Hardware Setup Manual (Z366-E1)
3-3 Camera Cable
3
3-3-1 Camera Cable and Right-angle Camera Cable
