4-2
FH-1000/2000/3000 Series
Precautions for Correct Use
Ambient Temperature
• Install and store the product in a location that meets the following conditions:
• Surrounding temperature of 0 to +50°C
*1
(-20 to +65°C in storage)
*1. FH-5000 Series: Surrounding temperature of 0 to 45°C
• Relative humidity of between 35 to 85%
• Do not let the ambient temperature exceed 50°C (122°F).
• Provide a forced-air fan cooling or air conditioning if the ambient temperature is near 50°C
(122°F) so that the ambient temperature never exceeds 50°C (122° F).
Orientation of Product

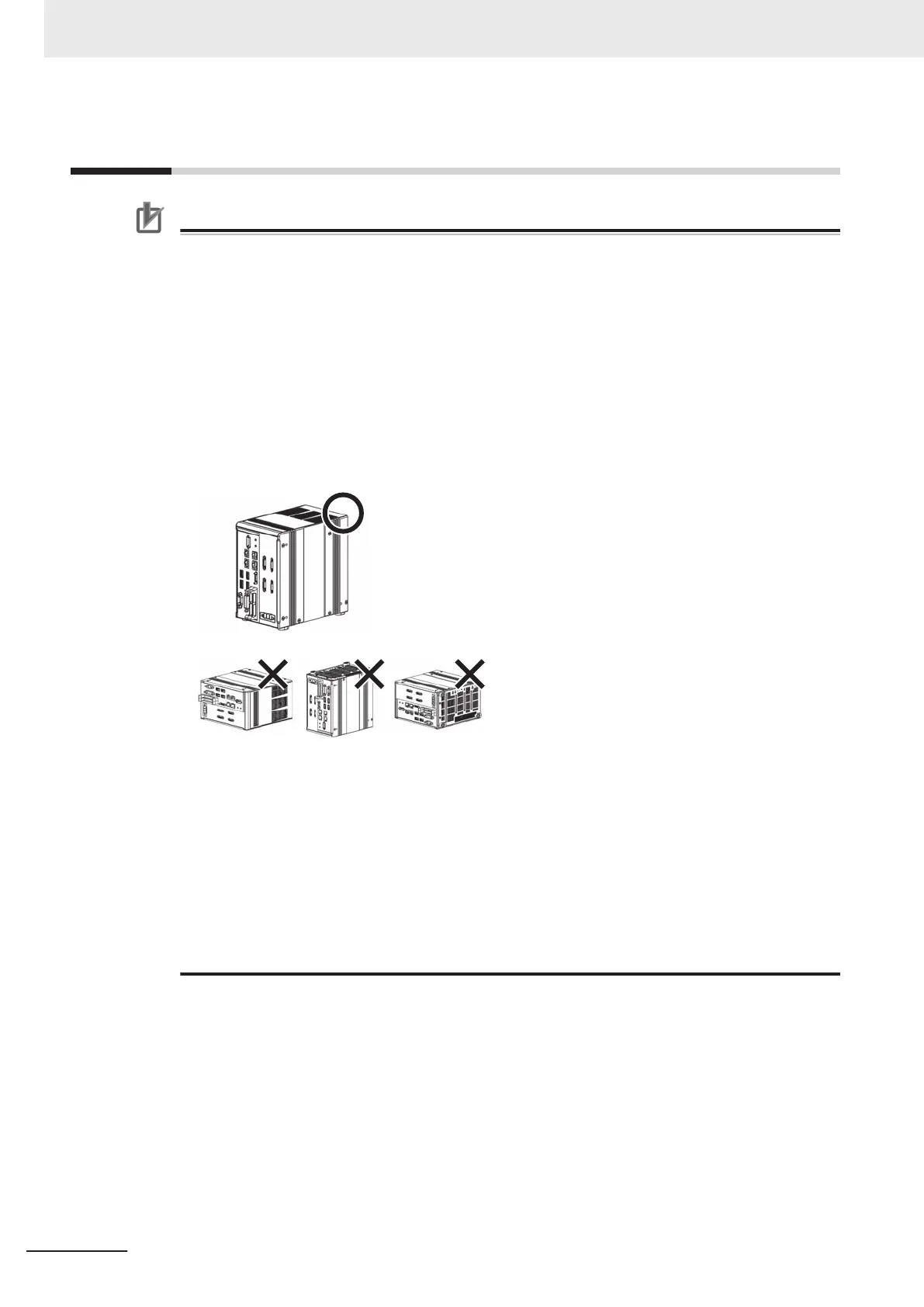

• For good heat dissipation, install the product only in the position shown below so as not to
block the ventilation holes.Install the product so that the air can flow freely through its cooling
vents.
• Do not install the product in the following positions.
• For good ventilation, provide a clearance of 50 [mm] or more above the Sensor Controller
away from other devices in the normal floor mounting. For the right and left sides, provide a
clearance of 30 [mm] or more, and for the back side, 15 [mm] or more. These clearances are
also required when mounting multiple Sensor Controllers side by side. For the back mount-
ing, the back-side clearance of 15 [mm] is not required.
Handling a SD memory card
•
Before removing a SD memory card, make sure that data is not being read or written to them.
• For SD memory card, the SD BUSY LED flashes or lights while data is being read or written,
so make sure that it is turned OFF before removing the memory.
• Do not insert an SD memory card in the reverse orientation, at an angle, or in a twisting man-
ner.
4 Handling and Installation Environment
