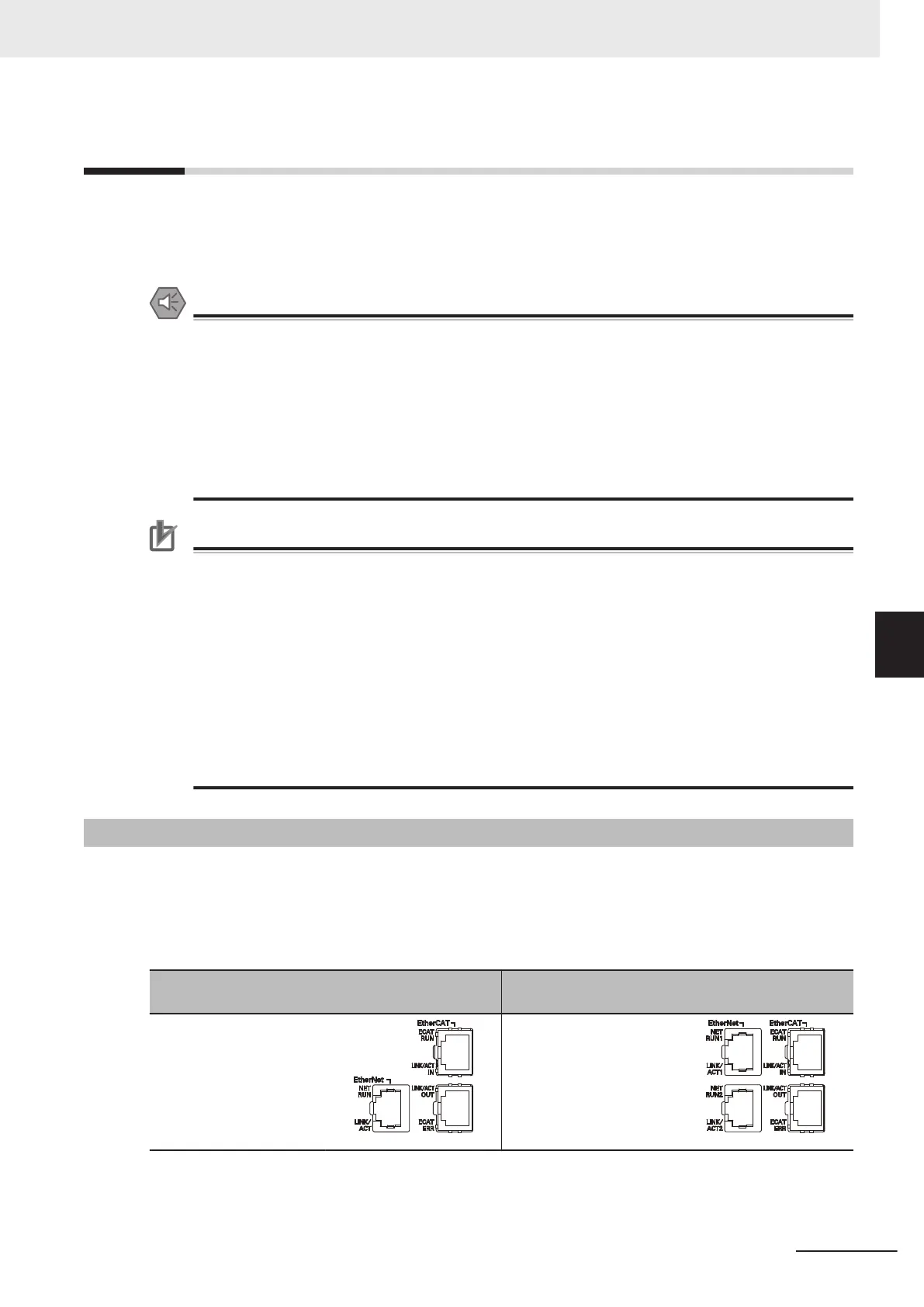

6-4
Ethernet Interface
Ethernet port of Sensor Controller is used for EtherNet/IP or Serial (Ethernet) communication. The
Ethernet port can be changed depending on Sensor Controller series. Be sure to check the series you
are attempting to use.
Precautions for Safe Use
Use only the cables designed specifically for the product. Use of other products may result in
malfunction or damage of the product.
Always turn OFF the power of the FH-L series Sensor Controller and peripheral devices be-
fore connecting or disconnecting a camera or cable. Connecting the cable with power sup-
plied may result in damage of the camera or peripheral devices.
Since cables to which bending is frequently applied is easily broken, use the robotic cable
type (bending resistant cable) to prevent damages.
Do not apply torsion stress to cables. If not, it may cause damage to cables.
Secure the minimum bending radius of cables. If not, it may cause damage to cables.
Precautions for Correct Use
Check the following items on the communications cables that are used in the network.
- Are there any breaks?
- Are there any shorts?
- Are there any connector problems?
When you connect the cable to the communications connectors on devices, firmly insert the
communications cable connector until it locks in place.
Do not lay the communications cables together with high-voltage lines.
Do not lay the communications cable near devices that generate noise.
Do not lay the communications cables in locations subject to high temperatures or high hu-
midity.
Do not lay the communications cables in locations subject to excessive dirt and dust or to oil
mist or other contaminants.
6-4-1
FH-1000/2000/3000/5000 Series
Ethernet port differ depending on the Sensor Controller series. Refer to the followings, and confirm the
number of ports. FH-1050/3050 (Camera 2ch type); Ethernet port is 1. FH-2050/5050/5550 (Camera
2ch type) and FH-1050-£0/2050-£0/3050-£0/5050-£0/5550-£0 (Camera 4ch and 8ch type): Ether-
net port is 2.
FH-1050/FH-3050
FH-1050-10/FH-1050-20/FH-3050-10/FH-3050-20
FH-2000/FH-5000 series
Ethernet port and Ether-
Net/IP port are sharing
use.
Upper port: Ethernet
port
Lower port: Ethernet
port and EtherNet/IP
port are sharing use.
6 I/O Interface
6-35
FH Series Vision System Hardware Setup Manual (Z366-E1)
6-4 Ethernet Interface
6
6-4-1 FH-1000/2000/3000/5000 Series
