Omron FHV Series User Manual

6-4-2
Cables

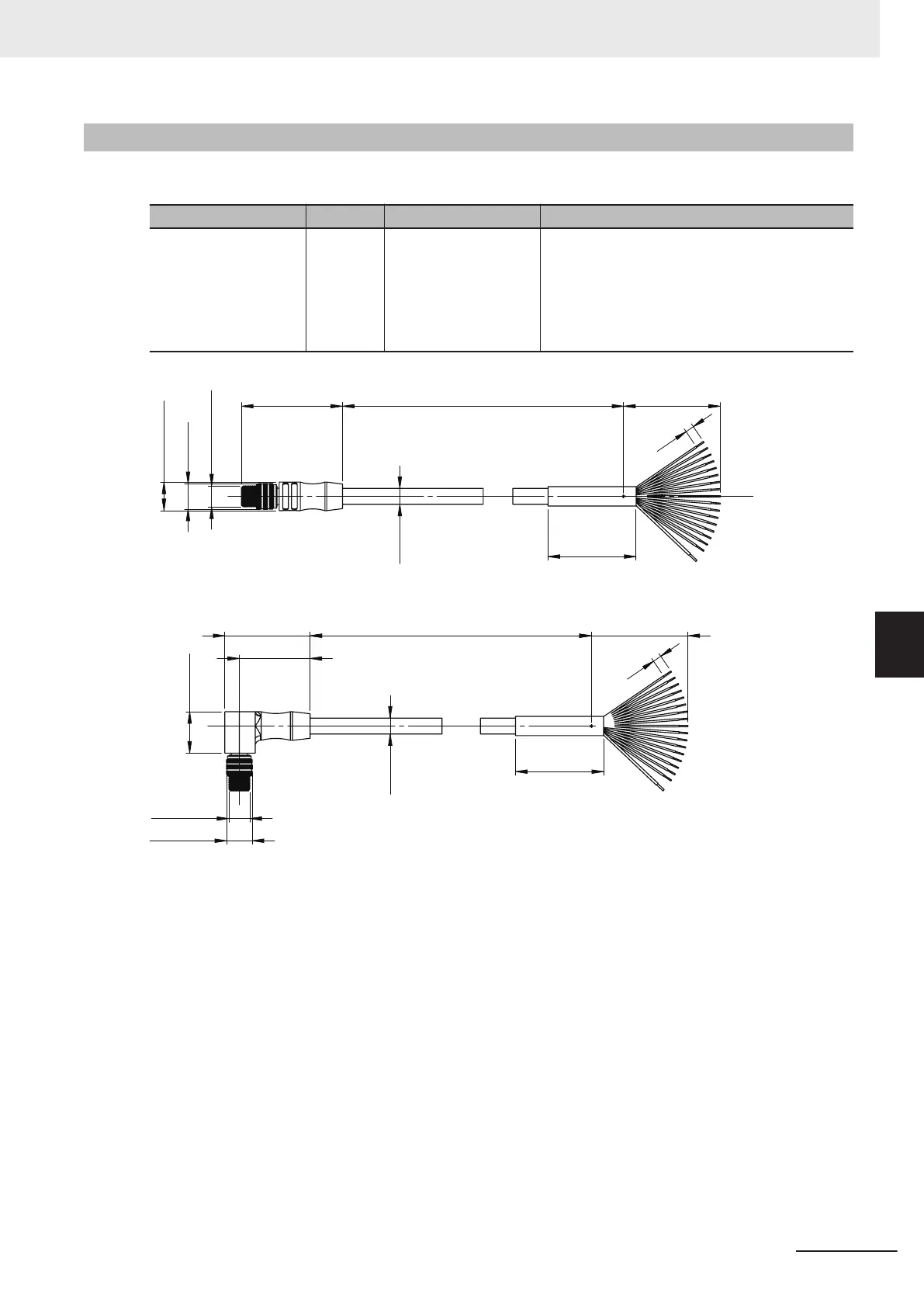

Please use the following I/O cables.
Name Model Description Note
I/O Cable FHV-VDB
□□ / FHV-
VDLB □□
FHV Series only
Cable lengths: 2m,
3m, 5m, 10m, 20m
Minimum bending radi-
us: Fixed use 54 mm,
Sliding use 72 mm
• One end of the cable is a connector and other
end is non-terminated wires.
• Connect with the cable, ensuring not to ex-
ceed the minimum bending radius.
FHV-VDB □□
M12x1.0
16.20 dia.
57.50
50
9 dia.
5
15 dia.
55 L
*1. Cable lengths (L) are 2 m/3 m/5 m/10 m/20 m.
FHV-VDLB □□
48.45
23.50
M12x1
9 dia.
50
5
15 dia.
40.20
55
L
*1. Cable lengths (L) are 2 m/3 m/5 m/10 m/20 m.
6 Power Supply and I/O Interface
6 - 7
FHV Series Smart Camera Setup Manual (Z408-E1)
6-4 I/O Cable Interface (Power Supply, I/O, RS-232C)
6
6-4-2 Cables
