3-4-2

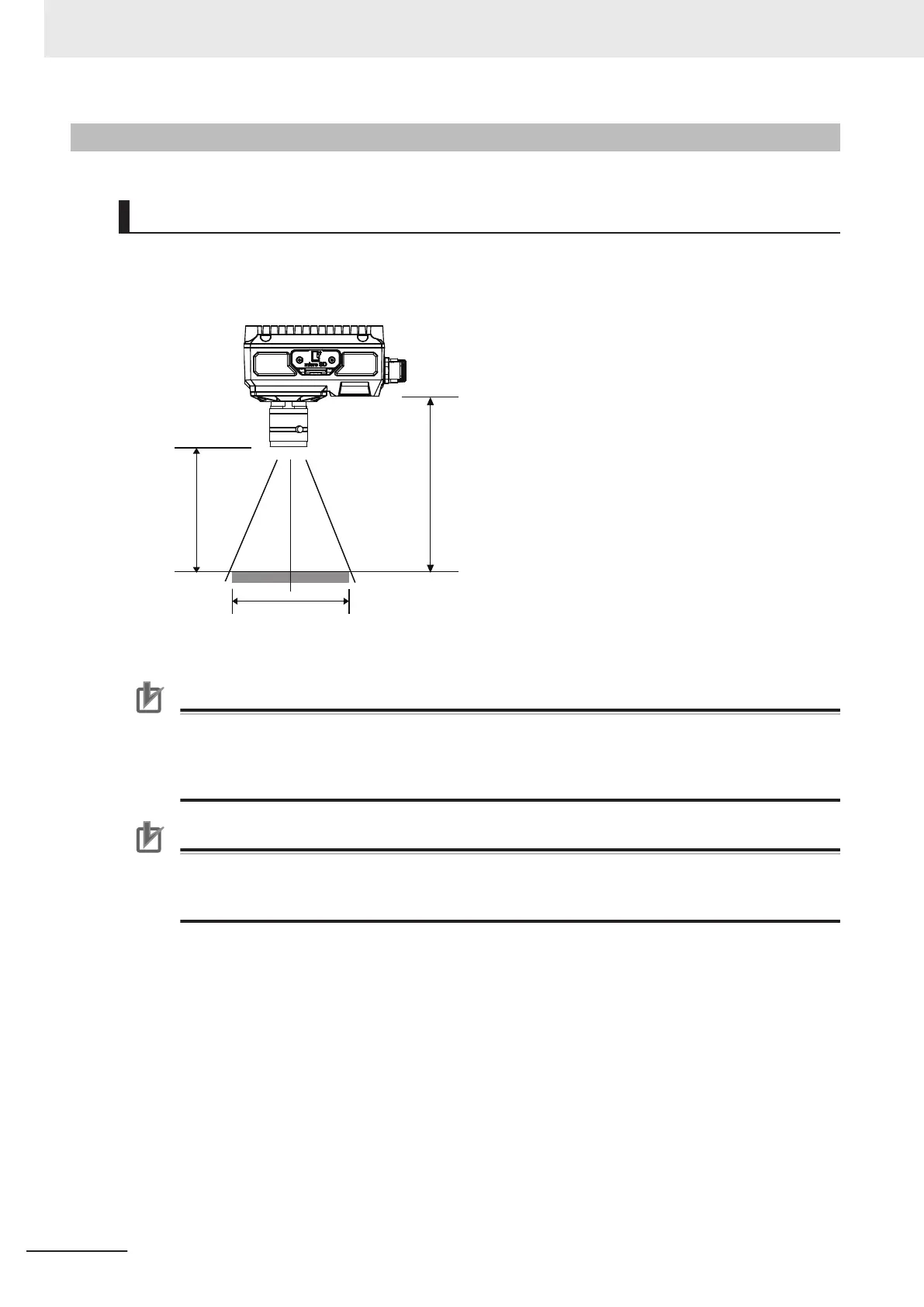

Meaning of Optical Chart
How to View the Optical Chart
The X axis of the optical chart shows the field of view [mm].
The Y axis of the optical chart shows the camera installation distance [mm] or WD.
FHV7H--C
Mounting surface
of front side
Camera distance
(mm)
WD (mm)
Y field of view (mm)
The lengths of the fields of view given in the optical charts are the lengths of the Y axis.
Precautions for Correct Use
The optical axis may vary product by product. When mounting this module, be sure to confirm
the center position of the video on the monitor. The optical axis of this product may vary over a
couple of pixels due to the variation of ambient temperature because of the material character-
istics.
Precautions for Correct Use
Select the model by confirming the field of view and camera installation distance on the optical
diagram. In addition, the field of view may vary product by product.
When mounting this product, be sure to confirm video using the monitor.
3 Configuration
3 - 30
FHV Series Smart Camera Setup Manual (Z408-E1)
