6-5-2

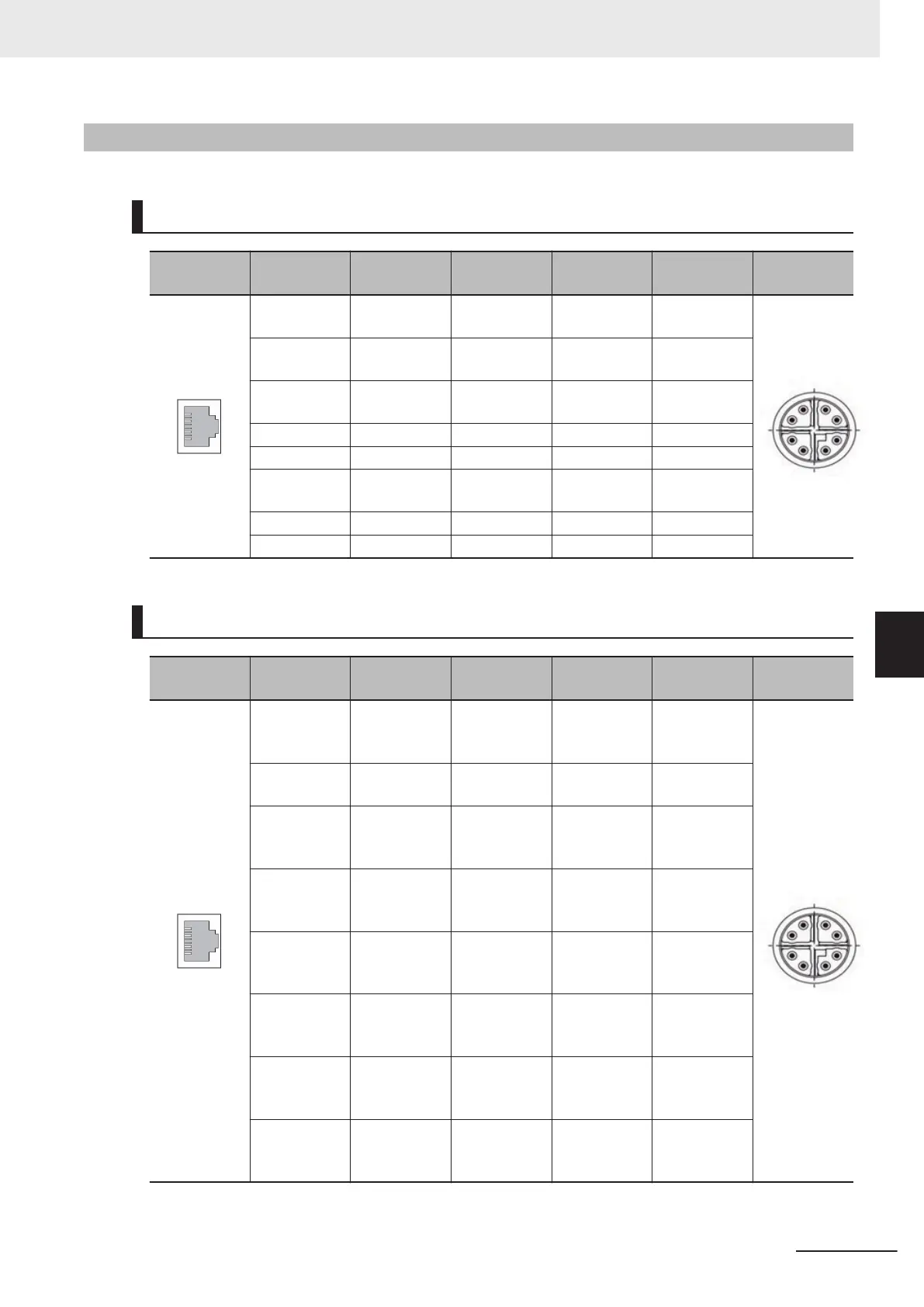

Pin Layout
10BASE-T / 100BASE-T
RJ45
Pin No.
(RJ45)
Signal name Abbr.
Signal direc-
tion
Pin No.
(M12)
M12
1 Transmit data
＋
TD+ Output 1
1
23
4
85
7
6
2 Transmit data
-
TD- Output 2
3 Received da-
ta ＋
RD+ Input 3
4 Not used - - 8
5 Not used - - 7
6 Received da-
ta－
RD- Input 4
7 Not used - - 5
8 Not used - - 6
1000Base-T
RJ45
Pin No.
(RJ45)
Signal name Abbr.
Signal direc-
tion
Pin No.
(M12)
M12
1 Communica-
tion data DA
+
BI_DA + Output 1
1
23
4
85
7
6
2 Communica-
tion data DA -
BI_DA - Output 2
3 Communica-
tion data DB
＋
BI_DB + Input/Output 3
4 Communica-
tion data DB
－
BI_DB - Input/Output - 8
5 Communica-
tion data DC
＋
BI_DC + Input/Output 7
6 Communica-
tion data DC
－
BI_DC - Input/Output 4
7 Communica-
tion data DD
＋
BI_DD + Input/Output 5
8 Communica-
tion data DD
－
BI_DD - Input/Output 6
6 Power Supply and I/O Interface
6 - 17
FHV Series Smart Camera Setup Manual (Z408-E1)
6-5 Ethernet Interface
6
6-5-2 Pin Layout
