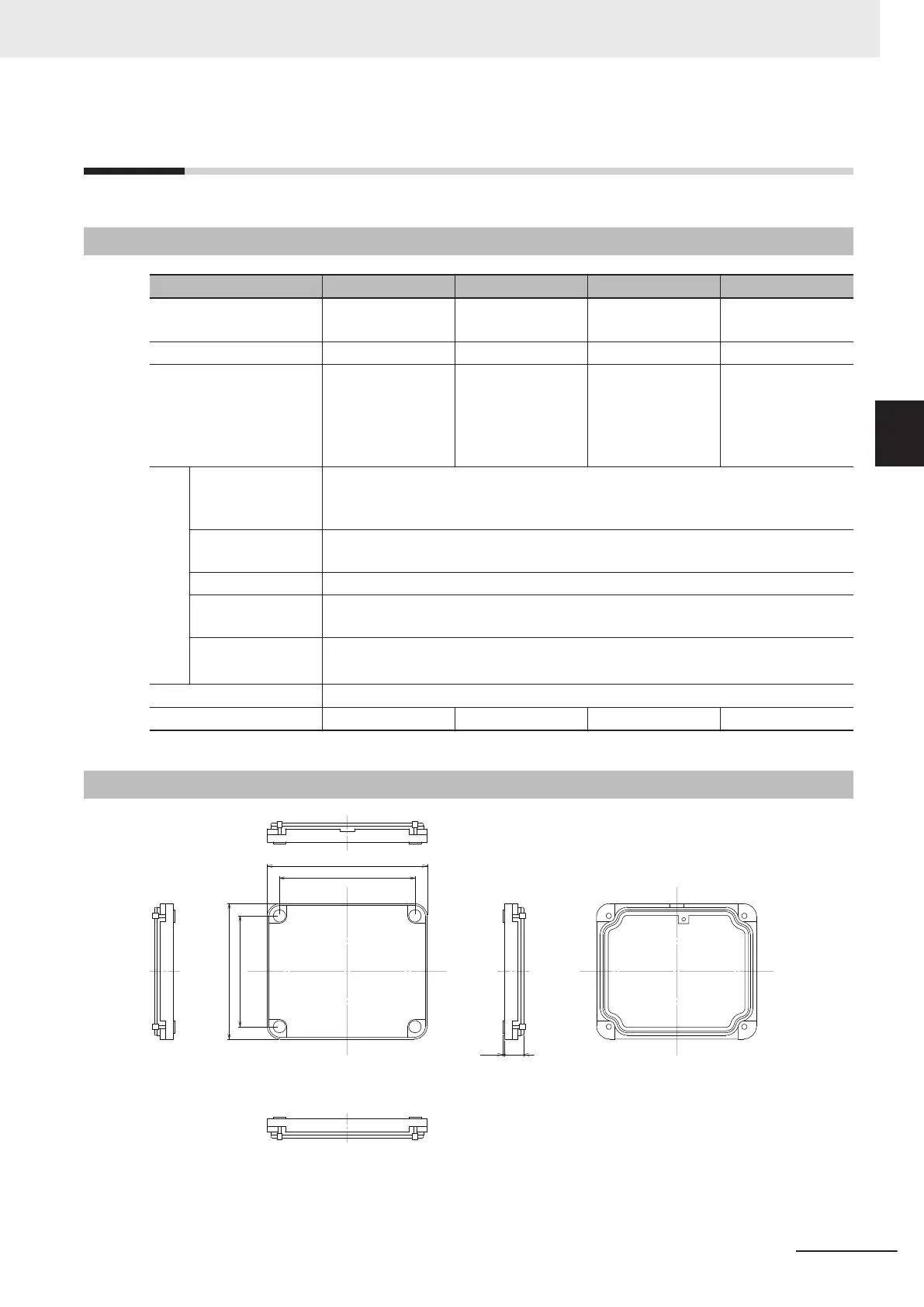

Omron FHV Series User Manual

3-6
Optical Filters
3-6-1
Specifications
Model FHV-XDF FHV-XPL FHV-XPL-IR FHV-XCV
Filter type Diffusion filter Polarization filter Polarization filter Lighting cover for
replacement
Wavelength Visible to infrared Visible Visible to infrared Visible to infrared
Adapted lighting module FHV-LTM-W
FHV-LTM-R
FHV-LTM-IR
FHV-LTM-MC
FHV-LTM-W
FHV-LTM-R
FHV-LTM-MC (In-
frared light is not
used.)
FHV-LTM-W
FHV-LTM-R
FHV-LTM-IR
FHV-LTM-MC
FHV-LTM-W
FHV-LTM-R
FHV-LTM-IR
FHV-LTM-MC
Usage environment
Ambient
temperature
range
Operating: 0 to +40℃, Storage: -25 to +65℃ (with no icing or condensation)
Ambient humidity
range
Operating & Storage: 35 to 85%RH (With no condensation)
Vibration tolerance No corrosive gases
Shock resistance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction:
X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Vibration tolerance
Impact force: 150 m/s
2
, Test direction: 6 directions, three time each (up/down, front/
behind, left/right)
Material Aluminum (A6061), polycarbonate
Weight Approx. 70 g Approx. 70 g Approx. 70 g Approx. 70 g
3-6-2
Dimensions
77
63
91
77
1.1 10.7
(Unit: mm)
3 Configuration
3 - 39
FHV Series Smart Camera Setup Manual (Z408-E1)
3-6 Optical Filters
3
3-6-1 Specifications
