Omron LD Platform User Manual

Chapter 10: Technical Specifications
10.1 Dimension Drawings
[15.1]
383
[7.9]
201
[14.9]
379
[2.0]
50
[19.7]
500
[27.5]
699
Mounting
Surface
Top of
covers
Units are mm [inches]

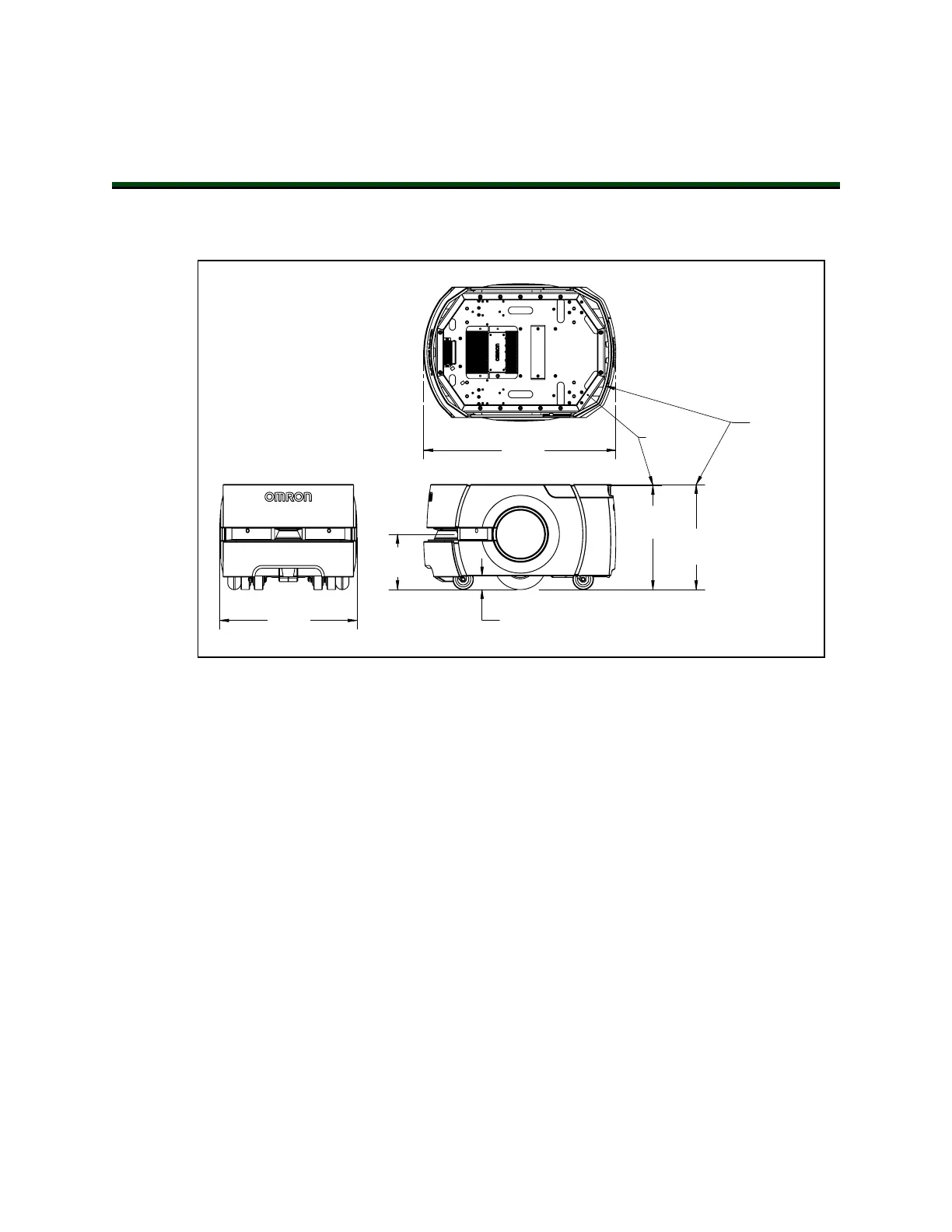

Figure 10-1. Platform Top, Side, and Front Dimensions
NOTE:Refer also to Platform Deck Dimensions, with M6-threaded Holes on page
53 and Platform Deck Dimensions, with M5-threaded Holes on page 54 for mount-
ing hole dimensions for the payload structure.
11970-000 Rev H1 LD Platform OEM User's Guide 133
