28 LD Platform OEM User's Guide 11970-000 Rev H1
3.3 Unpacking
Platform
The platform comes packed in a wooden crate, mounted on a pallet, with wooden covers. See
the following figure.
The docking station, joystick, and platform are shipped in the same crate.
Retain all parts and fasteners removed for possible repacking.
1.
Remove the two Klimp clips from the front panel and back of the crate at the bottom.

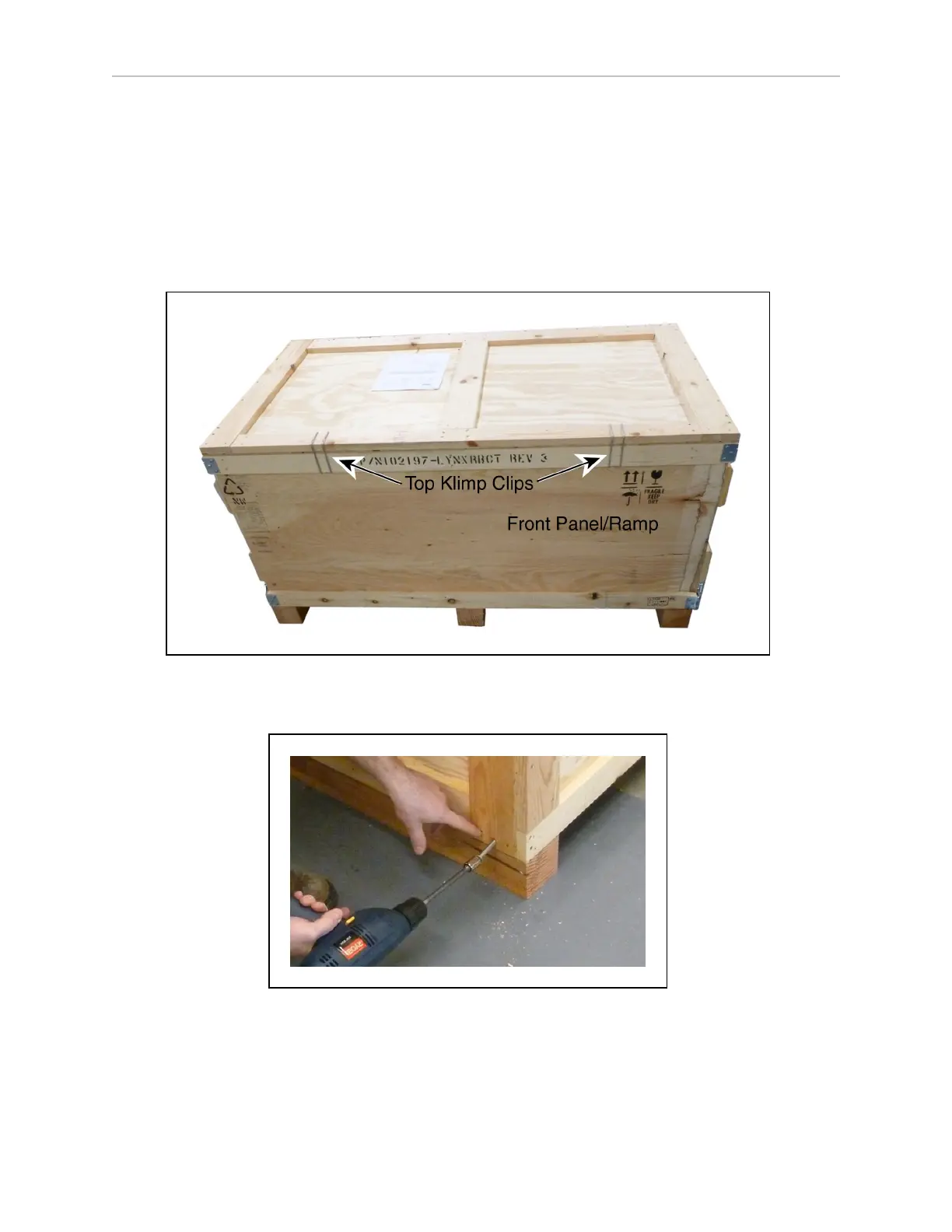

Figure 3-2. Front Panel of Shipping Crate
2.
Remove the two lag screws at the bottom of each end of the crate cover.
Figure 3-3. Lag Screw at Bottom of Crate End
3.
Undo the four spring-loaded latches and remove the front panel of the crate.
