Omron LD Platform User Manual

134 LD Platform OEM User's Guide 11970-000 Rev H1
10.2 Platform Specifications
406
[16.0]
495 [19.5]
Free Standing
89 [3.5]
114 [4.5]
267 [10.5]
247
[9.7]
123 [4.9]
121 [4.8]
356 [14.0]
315 [12.4]
369 [14.5]
384 [15.1]
Wall Mount and Floor Mount
Units are mm [inches]
Wall Mount Bracket
98±20
[3.8±0.8]
3x 6 dia. [0.25]
8x 25 [1.0]
18x 6 dia. [0.25]
349 [13.75]
146°
146°

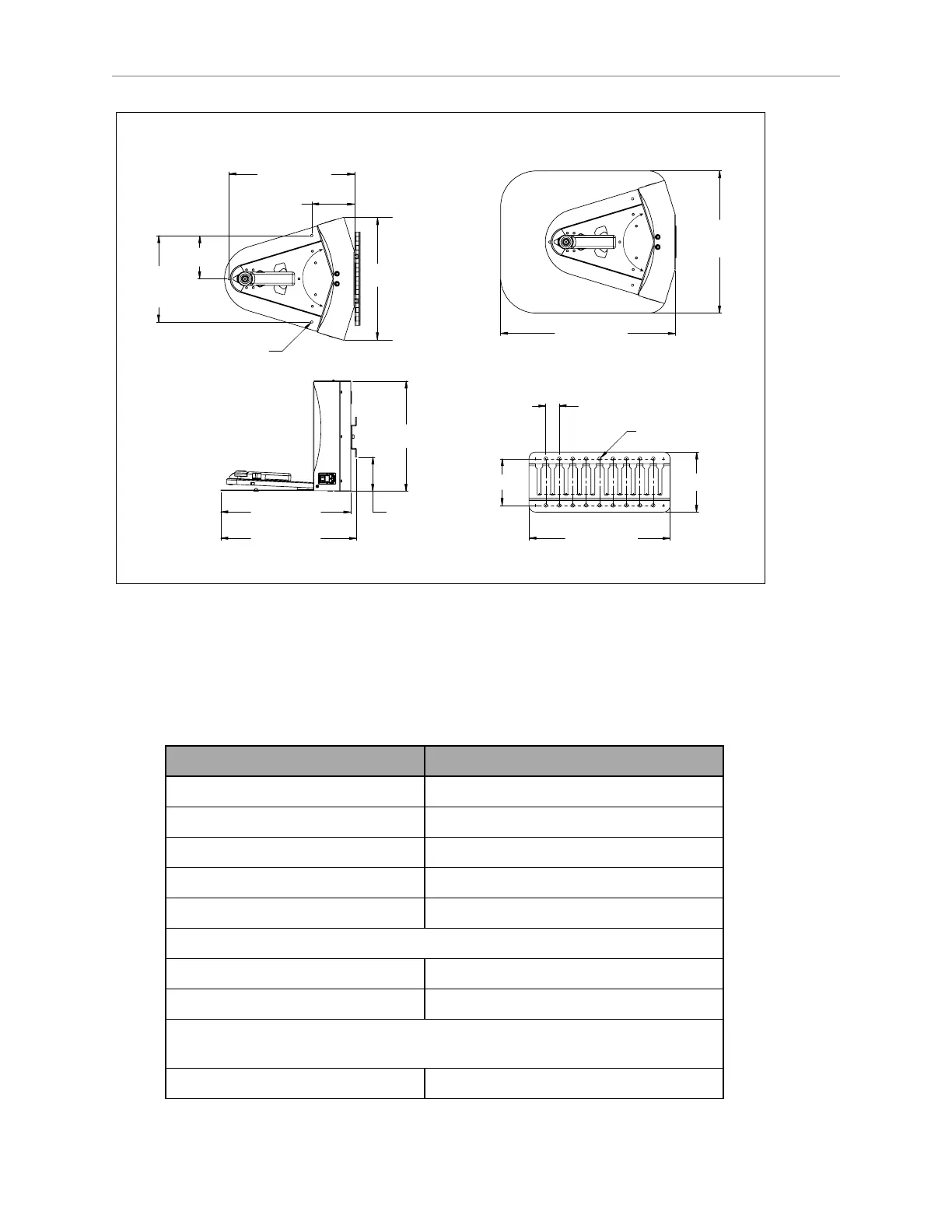

Figure 10-2. Docking Station Dimensions
10.2 Platform Specifications
Physical
Description Specification
Length 699 mm (27.5 inches)
Width 500 mm (19.7 inches)
Height (body) 383 mm (15.1 inches)
Body clearance 50 mm (2.0 inches)
Weight (with battery) 62 kg (132 lb)
Rating
IP Rating IP20
Cleanroom rating Fed Class 100, ISO Class 5
NOTE:Fed Class 10 (ISO Class 4) is attainable in many cases.
Contact your local Omron Support
Joystick IP rating IP56
