32 LD Platform OEM User's Guide 11970-000 Rev H1
3.3 Unpacking

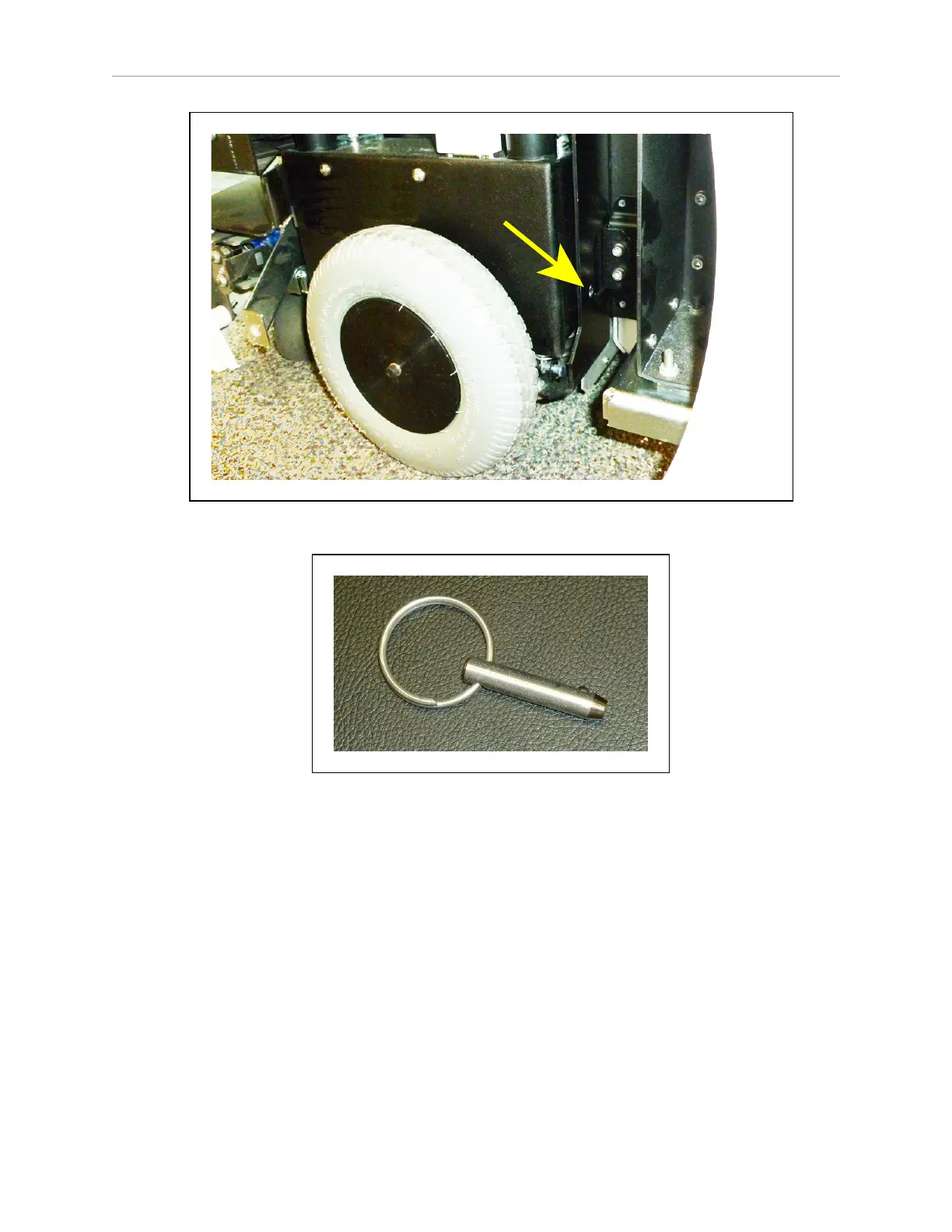

Figure 3-8. Wheel Pin Hole
Figure 3-9. Wheel Pin
c.
Reinstall the two side skins.
11.
Install the battery in the platform.
The platform brakes cannot be released until the battery is installed. Refer to Installing
the Battery on page 33.
Repacking for Relocation
If the platform or other equipment needs to be relocated, reverse the steps in the installation
procedures in this chapter. Reuse the original packing crate and materials and follow all safety
notes used for installation. Improper packaging for shipment will void your warranty.
Always ship the platform in an upright orientation.
