Omron LD Platform User Manual

Chapter 5: Payload Structures
60 kg
1500
1000
500
0
500
0
-500
300
200
100
-100
-200
-300
0
1500
1400
1300
1200
1100
1000
900
800
700
600
500
400
-300
-200
-100
0
100
200
300
Side View
Front View
Isometric View
200
100
0
-100
-200

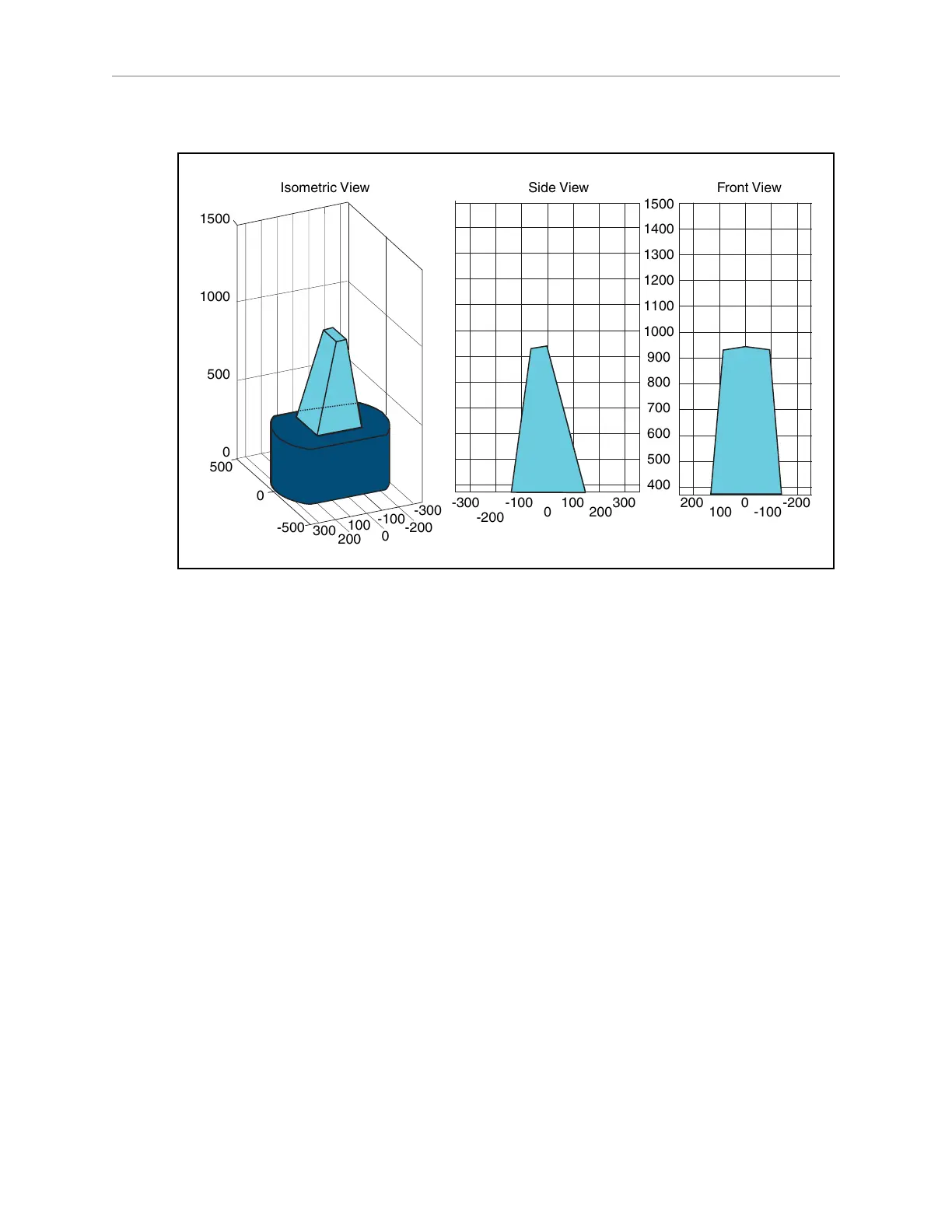

Figure 5-6. Center of Gravity Graphs, 60 kg
5.3 Payload-Related Tradeoffs
If you have to extend your center of gravity beyond the guidelines given here, you will need to
adjust various parameters in MobilePlanner software to compensate for that. If your para-
meters differ from those shown here, contact your local Omron Support.In general, you will
need to lower the maximum accel, decel, and rotation speeds. Refer to Acceleration, Decel-
eration, and Rotation Limits on page 49.
11970-000 Rev H1 LD Platform OEM User's Guide 57
