Omron M1 Series User Manual

Parameter
No.
Function name Data Description
Default
data
Unit

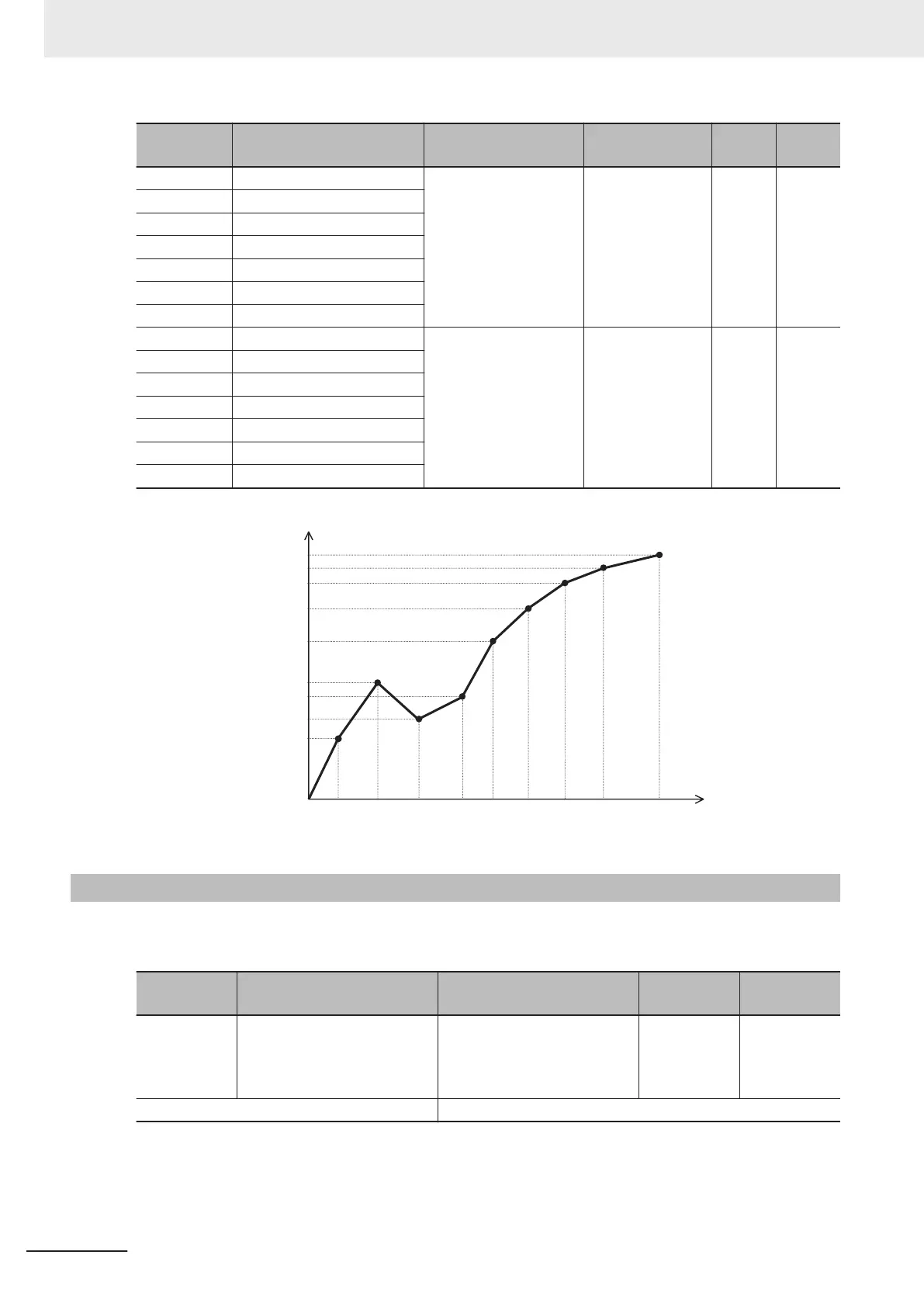

E166 Non-linear V/f Frequency 1
0.0: Disable
0.1 to 590.0 Hz
Sets the frequen-
cy at each break
point.
0.0 Hz
E168 Non-linear V/f Frequency 2
E170 Non-linear V/f Frequency 3
E172 Non-linear V/f Frequency 4
E174 Non-linear V/f Frequency 5
E176 Non-linear V/f Frequency 6
E178 Non-linear V/f Frequency 7
E167 Non-linear V/f Voltage 1
0 to 240 V (200-V
class)
0 to 500 V (400-V
class)
Sets the voltage
at each break
point.
0 V
E169 Non-linear V/f Voltage 2
E171 Non-linear V/f Voltage 3
E173 Non-linear V/f Voltage 4
E175 Non-linear V/f Voltage 5
E177 Non-linear V/f Voltage 6
E179 Non-linear V/f Voltage 7
E167
E175
E173
E169
E171
E177
F05
E179
F06
E166
E168
E174
E172 E170 E176 F04 E178 F03
Output voltage
Output frequency
5-2-2
Load Mode Selection
Select either of the heavy load mode (HHD/HD) or the light load mode (HND/ND) according to the ap-
plication.
Parameter
No.
Function name Data Default data Unit
F80 Load Mode Selection
0: HHD
1: HND
3: HD (only for 400 V)
4: ND (only for 400 V)
0 -
Related function F42/A14, F09/A05, F44/E147, F26, F21/A10
• Load modes that can be selected differ depending on the voltage specifications and capacity of the
inverter.
5 Basic Settings
5-12
M1 Series Standard Type User's Manual (I669)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
