102
Section 4 APPENDIX
ZFV
User’s Manual
Section 4

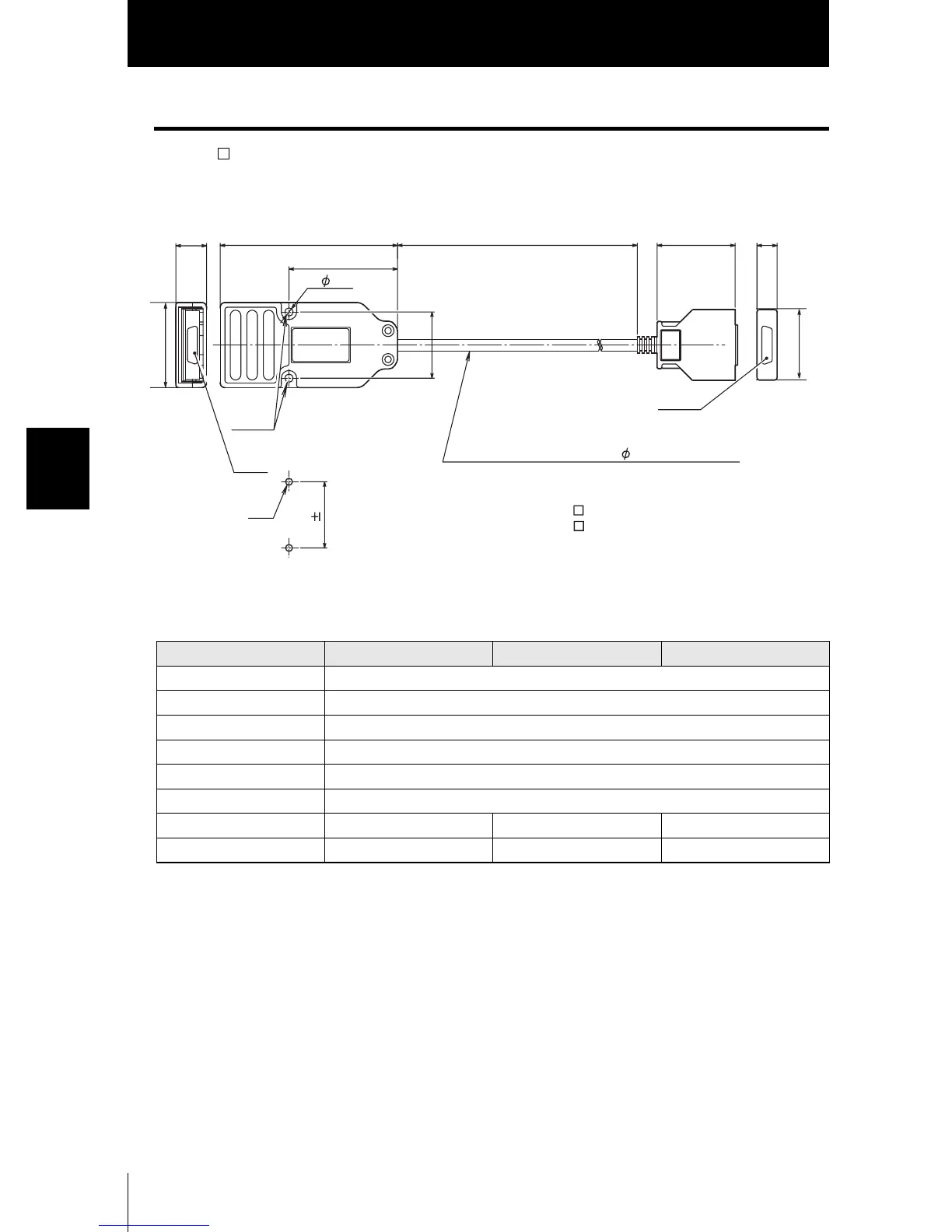

Specifications and External Dimensions
Extension Cord
ZFV-XC B(R)V2
* Model Nos. appended with “R” are robot cable types.
Item ZFV-XC3BV2 ZFV-XC8BV2 ZFV-XC3BRV2*
Applicable Amplifier Units ZFV-A Series
Applicable Sensor Head ZFV-S Series
Ambient temperature Operating: 0 to +40°C, Storage: -25°C to +65°C (with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Connection type Double-sided connector
Material Case: Polycarbonate (PC)
Weight Approx. 220g Approx. 500g Approx. 220g
Cord length 3m 8m 3m
Note 1:
Mounting
holes
Mounting hole dimensions
2-M3
PVC insulated round cable: 6.2, 20 pins
3375
13
8.5
45.9
L (Note 1)
28 0.1
28
2- 3.5
20 pins
20 pins
30
36
For ZFV-XC BV2, L=3m or 8m
For ZFV-XC BRV2, L=3m
(Unit: mm)
