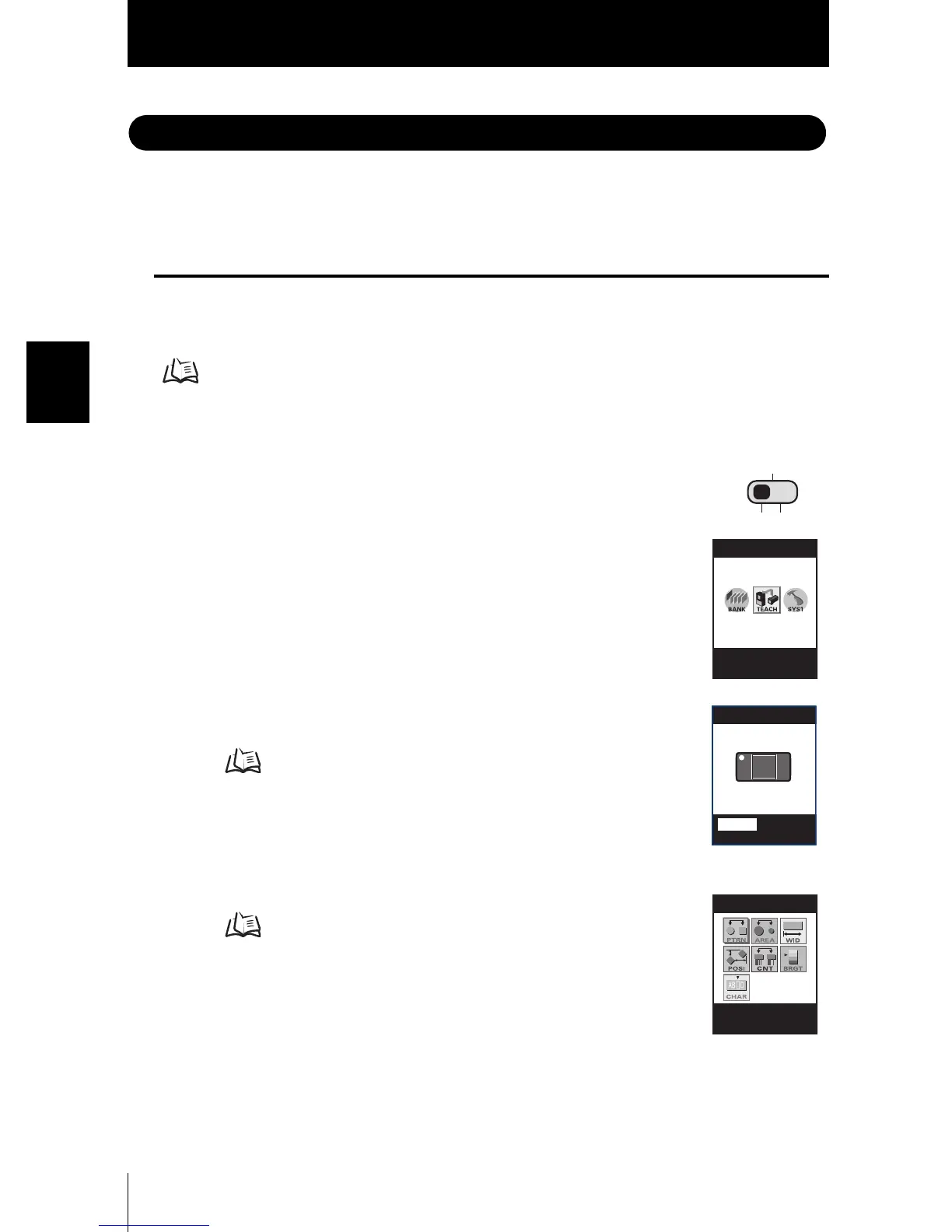

Executing Teaching
Executing Teaching
Execute teaching, and set the measurement conditions. Project the image to be used as
the accepted image as the details set in teaching are used as the reference in judgment.
Teaching Flow
There are two ways of executing teaching, by key operation and by external signals.
The following shows a procedure for teaching by key operation
For external input teaching p.35
1. Switch to MENU mode.
2. Put the cursor on [TEACH] then press the SET key.
3. Adjust the position to display workpiece to the monitor
while checking the image.
For still image teaching p.63
4. Put the cursor on [1.ITEM] then press the SET key.
5. Select teaching type.
Types of Teaching p.51
ADJ
RUNMENU
MENU
TEACH
TEACH/SEARCH
1.ITEM 2.MOVE
3.SIZE
ABCDE
TEACH/ITEM
PATTERN
