Section 3 SETUP
Section 3
Executing Teaching
51
ZFV
User’s Manual

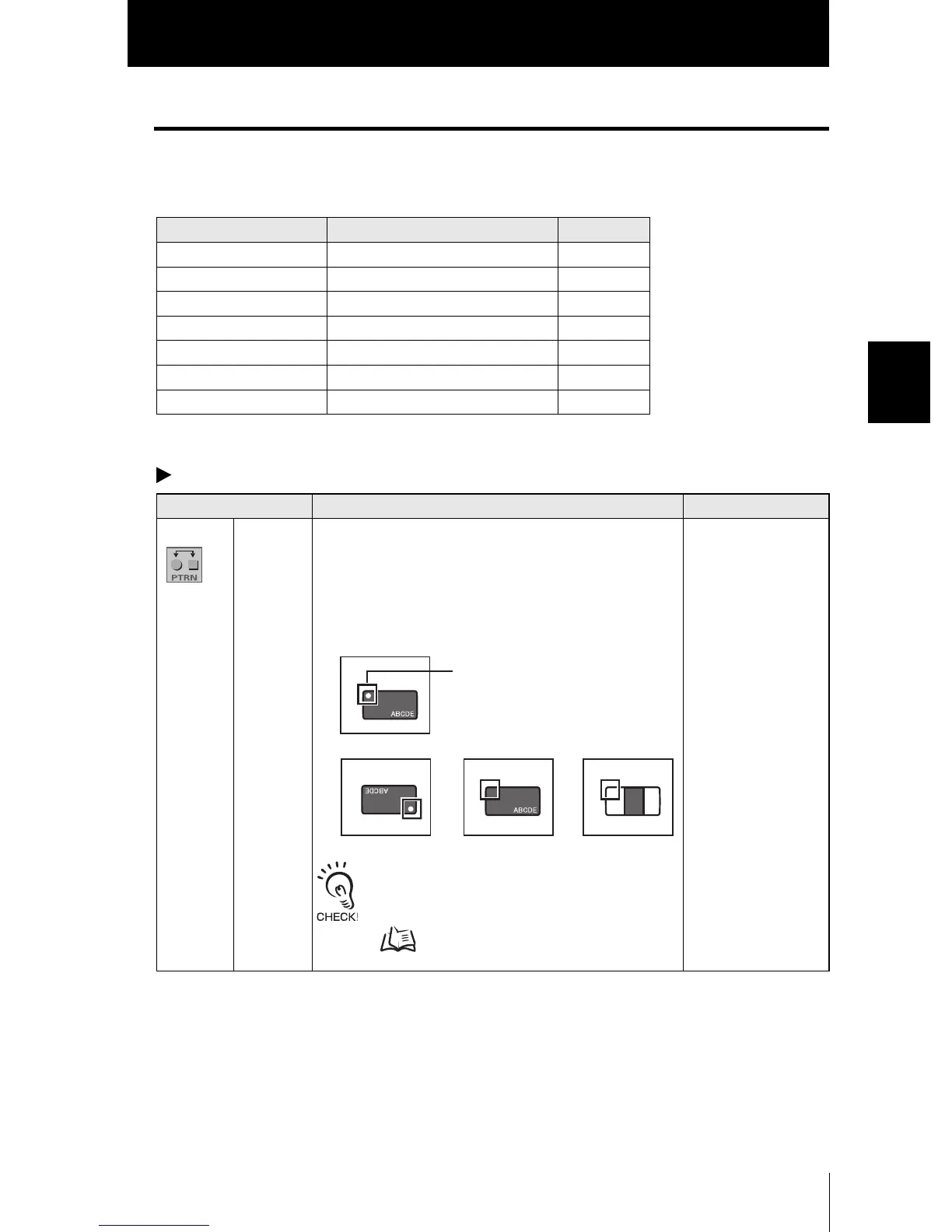

Types of Teaching
Select the type of teaching according to the detection content.
The details that are displayed differ according to the model of Amplifier Unit that you are
using.
* : These items are displayed only when standard type Amplifier Unit is in use.
MENU mode-[ITEM]
Detection Content Type of Teaching to Select Pages
Pattern/shape/presence PATTERN/SEARCH, MATCH p.51, p.52
Brightness/scratches, dirt BRIGHT p.52
Size/area AREA* p.52
Width WIDTH* p.53
Position POSITION* p.53
Number COUNT* p.53
Characters CHARA/CHARA 1, CHARA 2* p.54
Item Description
Example of Application
PATTERN SEARCH Select this item to detect the presence of a workpiece. This
item supports workpieces tilted to an angle of ±45°. Teach
the image pattern to be recognized, and register this pattern
as a model. Judgment is performed by whether the regis-
tered model “is” or “is not” in the detected image.
Example) To recognize by the presence of a mark
Measurement is unstable when there are two or
more of the same pattern. Register unique pat-
terns in the screen or restrict the search range.
Changing the search area p.81
Detection of presence
of sales campaign
seals
Recognition of top/
rear side and orienta-
tion of electronic com-
ponents
Model
NG
NG
Non-defective item
OK
