Setting the System Environment
63
ZFV
User’s Manual
Checking the version
Displays the type of Sensor Head, type of Amplifier Unit and system version information of
the software.
MENU Mode-[SYS2]-[VERSION]
Changing image capture timing on teaching screen
Select status of image to be displayed in the teaching screen.
MENU Mode-[SYS2]-[TEACH IMAGE]
Setting Description
THROUGH (default value) Display the latest raw image being inputted from the sensor head.
FREEZE Freeze the image and display.
The still image is displayed when the TRIG signal is input from the teaching
screen.

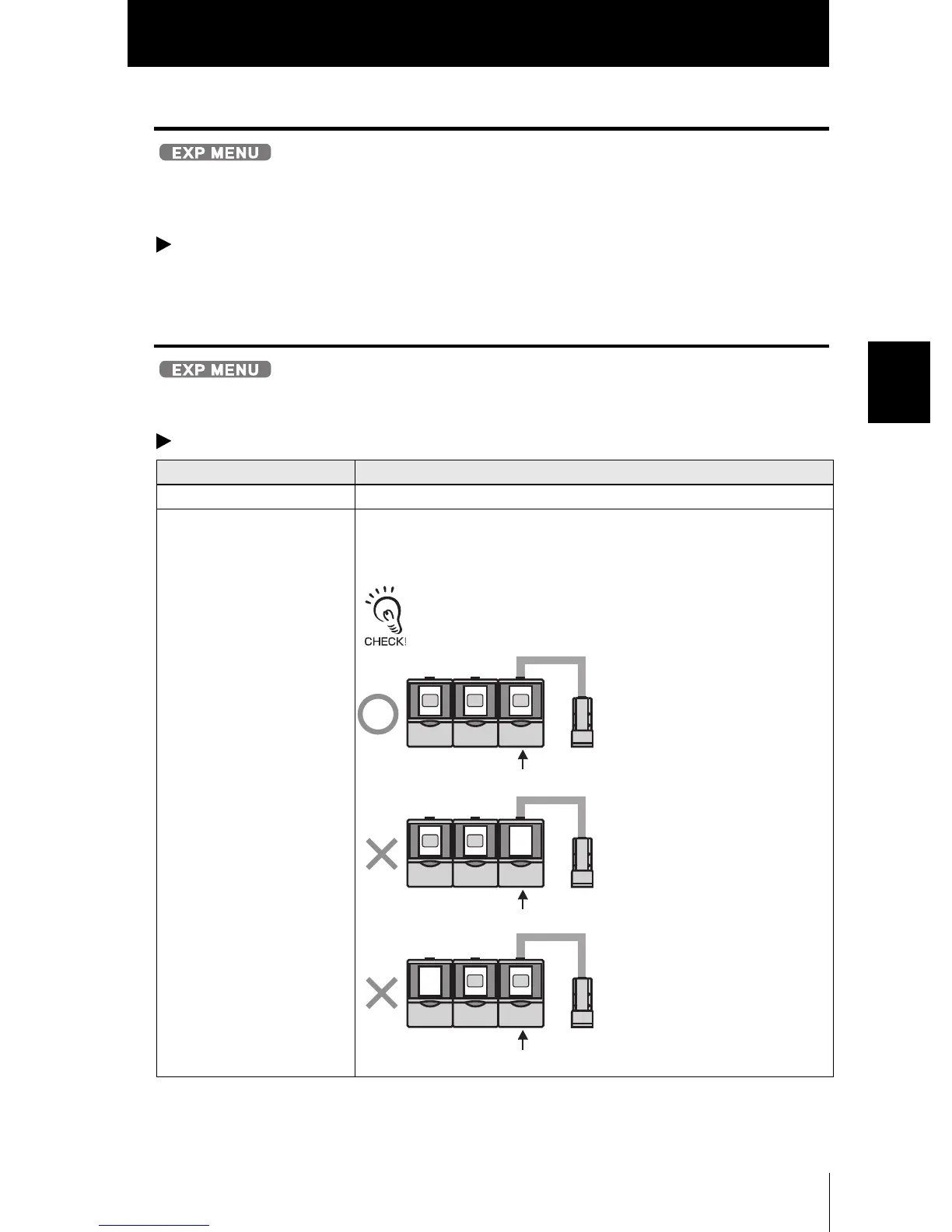

When amplifier units are gang-mounted, set all amplifier units to the
teaching screen then input the TRIG signal to the amplifier unit (fur-
thest to the right) where the sensor head is connected.
TRIG signal
TRIG signal
TRIG signal
Images are not loaded to all
amplifier units when the amplifier
where the sensor head is
connected is not set to the teaching
screen.
Images are not loaded to the far
left amplifier when the far left
amplifier is not at the teaching
screen.
Images are loaded to all amplifier
units when all amplifier units are
set to the teaching screen.
