Section 3 SETUP
Section 3
About Setup
45
ZFV
User’s Manual

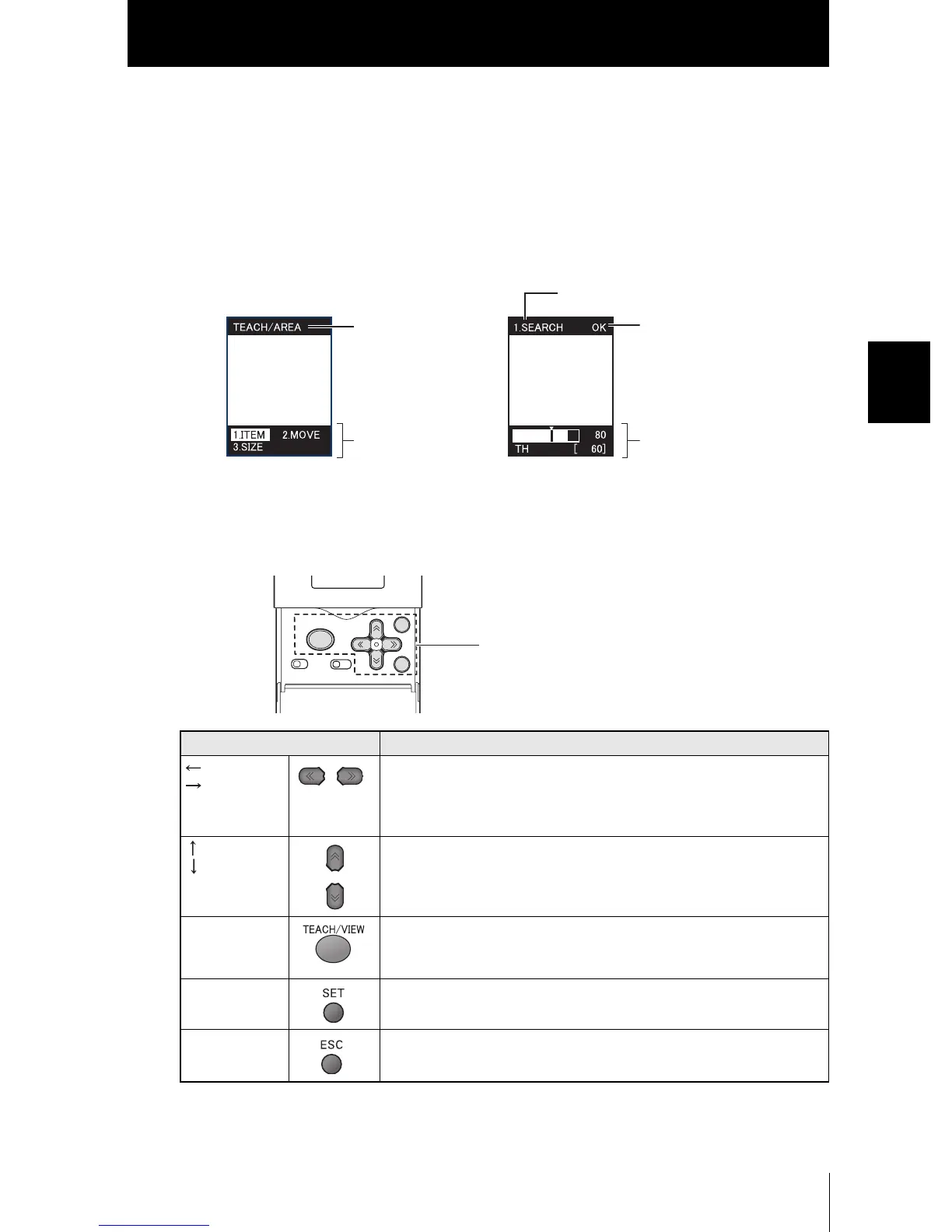

■ Displays and Key Operations
Make setups using the control keys while viewing the menus and the image displayed
on the LCD monitor.
● Display
The details that are displayed differ according to the operating mode.
● Key Operations
Key Description
LEFT key
RIGHT key
The function of these keys differs according to the operating mode.
In MENU mode: Moves through menus.
In ADJ mode: Changes the adjustment item (type of threshold value).
In RUN mode: Changes the display details (type of measurement value).
UP key
DOWN key
The function of these keys differs according to the operating mode.
In MENU mode: Moves between menus, selects parameters, and sets
numerical values.
In ADJ mode: Changes numerical values.
TEACH/VIEW
key
The function of these keys differs according to the operating mode.
In MENU mode: Executes teaching.
In RUN and ADJ modes: Switches the screen display.
SET key • Selects menus.
• Selects/applies items.
ESC key Returns to the previous menu.
Setting item
Settings
The currently selected
item is displayed
inverted.
• MENU mode • ADJ mode/RUN mode
Bank No. and measurement item
Judgment
Threshold value or mea-
surement result
Control keys
To Next Page
