C. LAN Port
D. USB 3.0 Ports (2 ports)
E. HDMI Port
Connector for HDMI compatible digital display.
It is not compatible with the analog display.
The display specifications of the maximum resolution, etc. that can be output differ according to the specifications of the device con-
nected. For details, refer to the specifications of the device connected.
F. VGA Port
G. Serial Port
It does not support serial mouse.

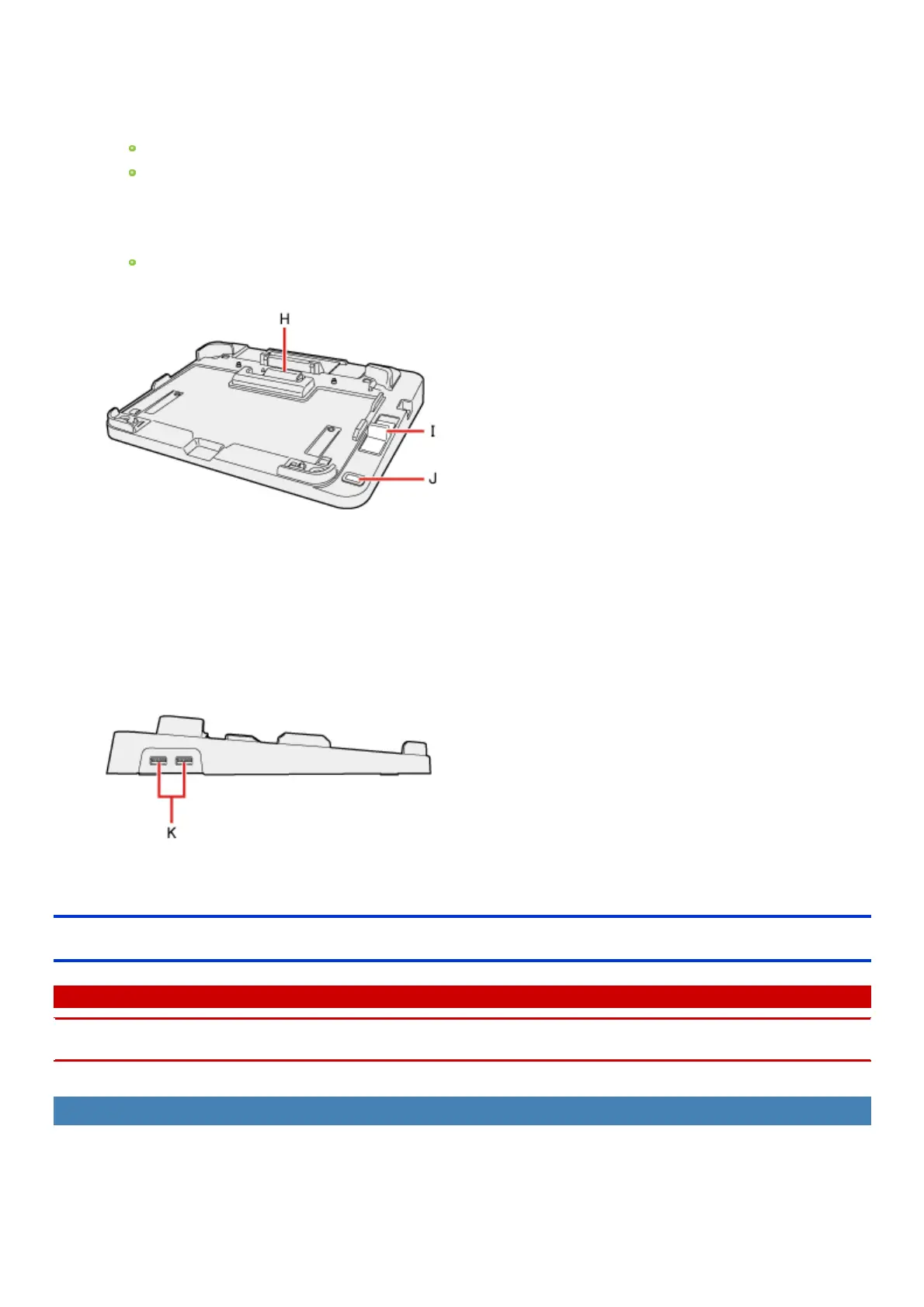

<Front>
H. Expansion Bus Connector
Thisconnects to the expansion bus connector on the bottom of the computer.
I. Lever
Slide the lever allthe way backto release the computer.
J. Power Switch
Thisoperates identically to the power switch on the computer.
<Left>
K. USB 2.0 Ports (2 ports)
Connecting/Disconnecting the Computer
C A U T I O N
n Make sure to turn the computer off for connection/disconnection.
n Do not connect or disconnect the port replicator while the computer is powered on or in the sleep or hibernation mode.
Connecting
1. Turn off the computer.
Disconnect allthe devices and cables and close the terminal cover and close the display.
2. Connect the AC adaptor to DC-IN jack of the port replicator.
Connect the AC cord to the AC adaptor, and connect to an AC outlet.
To Next Page
