Before Use

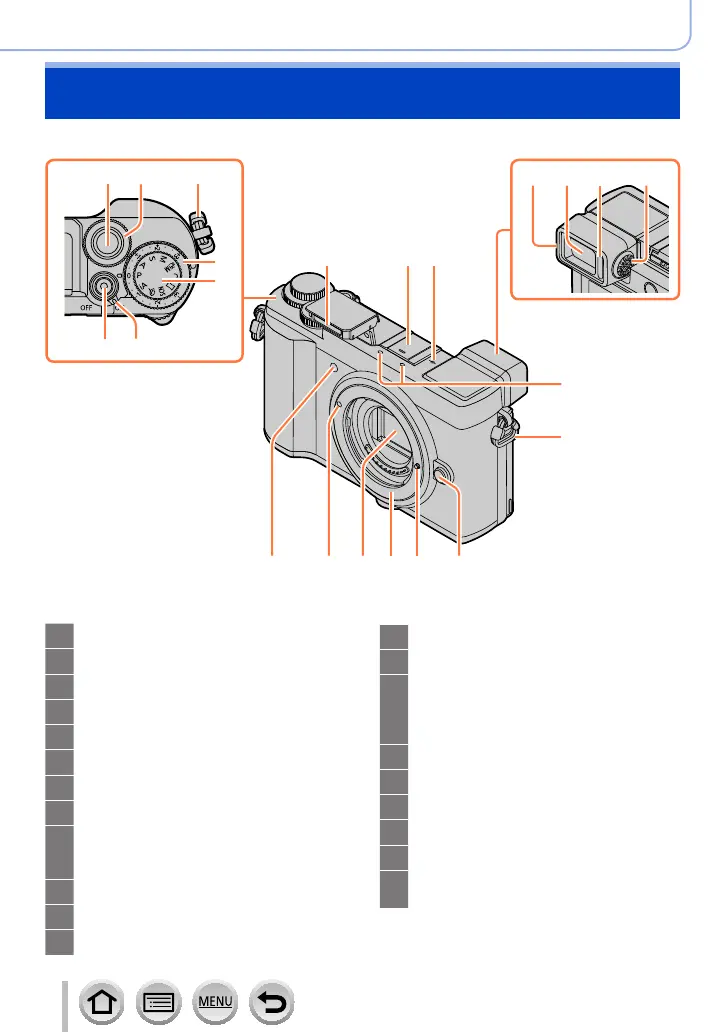

Names and Functions of Main Parts
1
Shutter button (→46)
2
Front dial (→47)
3
Shoulder strap eyelet (→21)
4
Exposure compensation dial (→112)
5
Mode dial (→47)
6
Camera [ON/OFF] switch (→40)
7
Motion picture button (→46, 171)
8
Flash (→42, 161)
9
Hot shoe (Hot shoe cover) (→313)
Keep the hot shoe cover out of reach of
children to prevent swallowing.
10
Focus distance reference mark (→110)
11
Eyecup (→334)
12
Viewfinder (→45, 315)
13
Eye sensor (→45)
14
Dioptre adjustment dial (→45)
15
Stereo microphone (→42, 206)
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
16
Lens release button (→36)
17
Lens lock pin
18
Mount
19
Sensor
20
Lens fitting mark (→36)
21
Self-timer indicator (→140) /
AF Assist Lamp (→42, 209)
1 2 3
4
5
7 6
141312
8 9 10
15
3
161718192021
11
â–
Camera body
