Pioneer VSX 1020 User Manual

Controls and displays02
10
En
9 MASTER VOLUME dial
10
PHONES jack
Connect the headphones. When the
headphones are connected, there is no sound
output from the speakers.
11 Listening mode buttons
AUTO/ALC/DIRECT – Switches between
Auto Surround
(page 56) , Auto Level Control
mode and Stream Direct mode
(page 59) .
STEREO – Switches between stereo
playback and Front Stage Surround
Advance modes (page 59).
STANDARD – Press for Standard decoding
and to switch between the various 2 Pro
Logic IIx and Neo:6 options (page 56).
ADV SURROUND – Switch between the
various surround modes (page 58).
12 iPod iPhone DIRECT CONTROL
Change the receiver’s input to the iPod and
enable iPod operations on the iPod (page 44).
13 MCACC SETUP MIC jack
Connect the supplied microphone (page 37).
14 iPod/iPhone/USB terminals
Connect your Apple iPod as an audio and video
source, or connect a USB device for audio and
photo playback (page 33).
15 HDMI input connector
Use for connection to compatible HDMI device
(Video camera, etc.)(page 32).

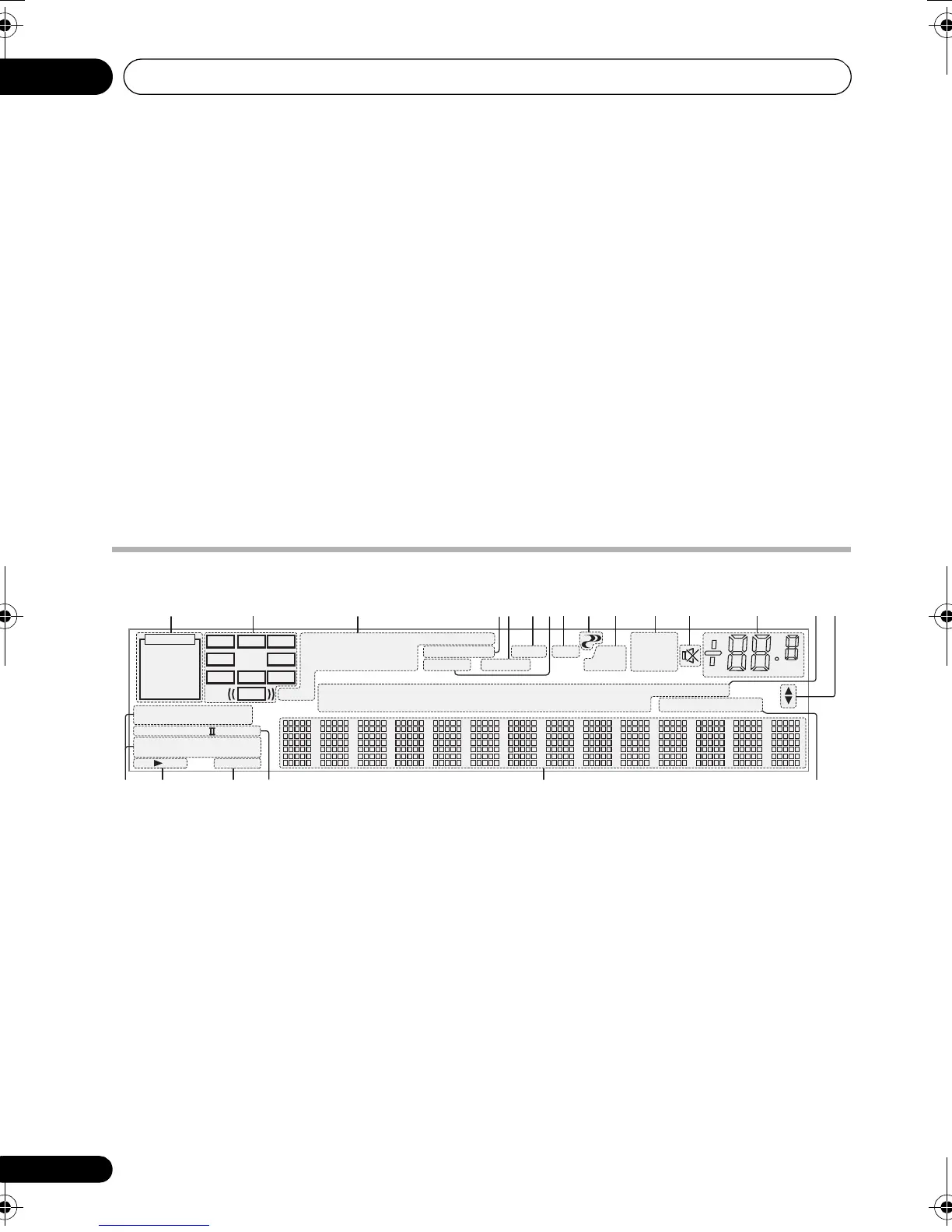

Display
1 SIGNAL indicators
Light to indicate the currently selected input
signal. AUTO lights when the receiver is set to
select the input signal automatically (page 60).
2 Program format indicators
Light to indicate the channels being digital
input.
L/R – Left front/Right front channel
C – Center channel
SL/SR – Left surround/Right surround channel
LFE – Low frequency effects channel (the (( ))
indicators light when an LFE signal is being input)
XL/XR – Two channels other than the ones above
XC – Either one channel other than the ones
above, the mono surround channel or matrix
encode flag
3 Digital format indicators
Light when a signal encoded in the corresponding
format is detected.
2 DIGITAL – Lights with Dolby Digital decoding.
2 DIGITAL PLUS – Lights with Dolby Digital
Plus decoding.
2 TrueHD – Lights with Dolby TrueHD decoding.
DTS – Lights with DTS decoding.
DTS HD – Lights with DTS-HD decoding.
96/24 – Lights with DTS 96/24 decoding.
WMA9 Pro – Lights to indicate that a WMA9 Pro
signal is being decoded.
DSD PCM – Light during DSD (Direct Stream
Digital) to PCM conversion with SACDs.
PCM – Lights during playback of PCM signals.
MSTR – Lights during playback of DTS-HD
Master Audio signal.
PCM
HDMI
DIGITAL
ANALOG
L C R
SL SR
XL XR
XC
LFE
AUTO
DIGITAL PLUS
AUTO SURROUND
STREAM DIRECT
PROLOGIC x Neo:6
ADV.SURROUND
STEREO STANDARD
SP AB SLEEP
DSD PCM
DTS HD ES 96/24
MSTR
S.RTRV SOUND UP MIX OVER
MONO
dB
2
MULTI-ZONE STEREO TrueHD WMA9Pro
TUNED
PQLS ALC ATT
2
2
USB
VIDEO
TV
DVD
HDMI
DVR BD
CD
TUNER
SIRIUS
CD-R
iPod
[ 2 ]
[ 3 ]
[ 4 ]
21 3 106 854 119 12 13 14
19 2016 17 18
15
8
7
VSX-1020_UC.book 10 ページ ２０１０年１月７日 木曜日 午後６時０分

Pioneer VSX 1020 Specifications

General

Impedance	6 Ω
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	1 %
Audio system	Dolby TrueHD, DTS-HD Master Audio
Output power	140 W
Channels quantity	63 channels
Dimensions (WxDxH)	420 x 379 x 158 mm
Power requirements	AC 220 - 230 V, 50/60 Hz
HDMI ports quantity	7
Connectivity technology	Wired
Digital audio optical in	2
Product color	Black
Power consumption (standby)	0.6 W
Power consumption (typical)	245 W
Headphone connectivity	3.5 mm

Weight and Dimensions

Weight	10200 g
