Connecting your equipment 03
17
En
English
Français
Deutsch
Nederlands
Italiano
Español

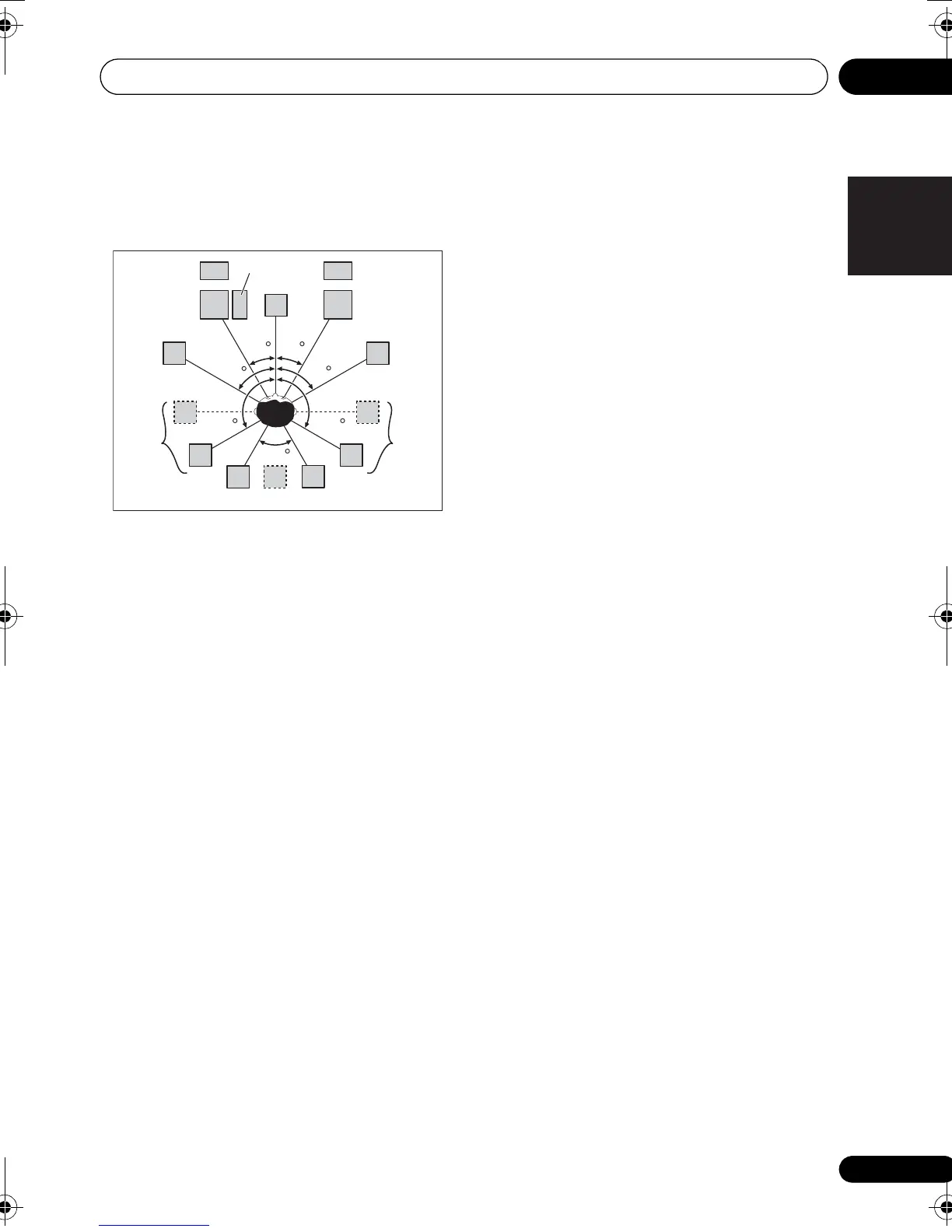

Placing the speakers
Refer to the chart below for placement of
speakers you intend to connect.
• Place the surround speakers at 120º from
the center. If you, (1) use the surround back
speaker, and, (2) don’t use the front height
speakers / front wide speakers, we
recommend placing the surround speaker
right beside you.
• If you intend to connect only one surround
back speakers, place it directly behind you.
• Place the left and right front height
speakers at least 1 m (3.3 ft.) directly above
the left and right front speakers.
Some tips for improving sound quality
Where you put your speakers in the room has a
big effect on the quality of the sound. The
following guidelines should help you to get the
best sound from your system.
• The subwoofer can be placed on the floor.
Ideally, the other speakers should be at
about ear-level when you’re listening to
them. Putting the speakers on the floor
(except the subwoofer), or mounting them
very high on a wall is not recommended.
• For the best stereo effect, place the front
speakers 2 m to 3 m (6 ft. to 9 ft.) apart, at
equal distance from the TV.
• If you’re going to place speakers around
your CRT TV, use shielded speakers or
place the speakers at a sufficient distance
from your CRT TV.
• If you’re using a center speaker, place the
front speakers at a wider angle. If not, place
them at a narrower angle.
• Place the center speaker above or below
the TV so that the sound of the center
channel is localized at the TV screen. Also,
make sure the center speaker does not
cross the line formed by the leading edge
of the front left and right speakers.
• It is best to angle the speakers towards the
listening position. The angle depends on
the size of the room. Use less of an angle
for bigger rooms.
• Surround and surround back speakers
should be positioned 60 cm to 90 cm (2 ft.
to 3 ft.) higher than your ears and tilted
slight downward. Make sure the speakers
don’t face each other. For DVD-Audio, the
speakers should be more directly behind
the listener than for home theater playback.
• Try not to place the surround speakers
farther away from the listening position
than the front and center speakers. Doing
so can weaken the surround sound effect.
L
SW
C
FHL
FWL
SL
SBL
SBR
SB
SR
FWR
R
FHR
30 30
60
60
60
120 120
VSX-1020_UC.book 17 ページ ２０１０年１月７日 木曜日 午後６時０分

Pioneer VSX 1020 Specifications

General

Impedance	6 Ω
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	1 %
Audio system	Dolby TrueHD, DTS-HD Master Audio
Output power	140 W
Channels quantity	63 channels
Dimensions (WxDxH)	420 x 379 x 158 mm
Power requirements	AC 220 - 230 V, 50/60 Hz
HDMI ports quantity	7
Connectivity technology	Wired
Digital audio optical in	2
Product color	Black
Power consumption (standby)	0.6 W
Power consumption (typical)	245 W
Headphone connectivity	3.5 mm

Weight and Dimensions

Weight	10200 g
