Connecting your equipment03
32
En

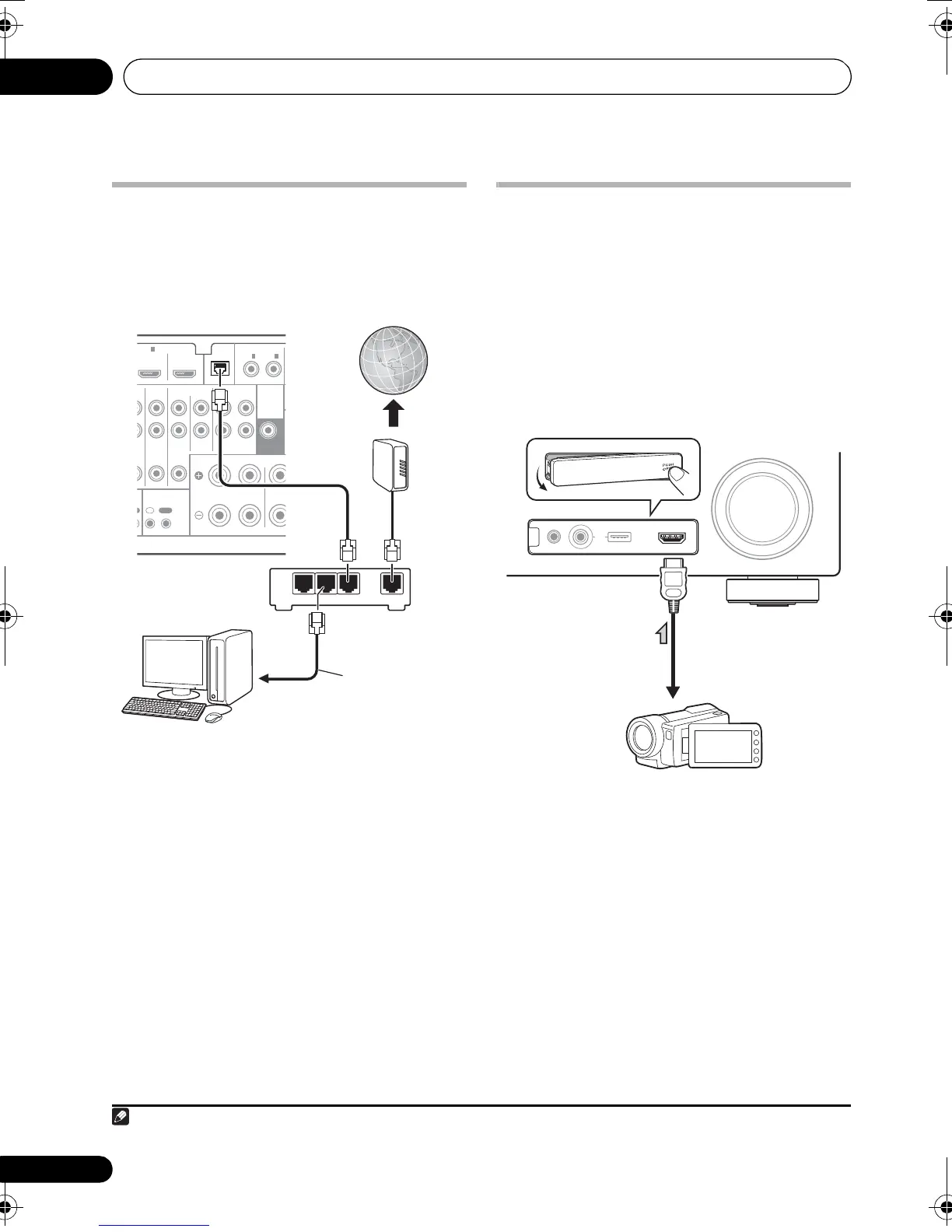

Connecting to the network
through LAN interface
By connecting this receiver to the network via
the LAN terminal, you can listen to Internet
radio stations.
1
Connect the LAN terminal on this receiver to
the LAN terminal on your router (with or
without the built-in DHCP server function) with
a straight LAN cable (CAT 5 or higher).
Turn on the DHCP server function of your
router. In case your router does not have the
built-in DHCP server function, it is necessary
set up the network manually. For details, see
Network Setup menu on page 103.
The specifications of a LAN terminal
LAN terminal . . . . . . . . . . . . . . . . . . Ethernet jack
10BASE-T/100BASE-TX
Connecting an HDMI-equipped
component to the front panel
input
There is an HDMI input terminal on the front
panel. High quality pictures can be viewed via
the receiver simply by connecting an HDMI-
equipped video camera with a single HDMI
cable. HDMI-equipped components other than
video cameras can also be connected to this
terminal.
1 To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.
ASSIGNABLE
(
DVD
)
R
FRONT CENT
L
CD-R/TAPE
OUT IN
CD
IN
TV/SAT
IN
VIDEO
IN
(
CD
)
SUBWOOFER
PRE OUT
CONTROL
LAN
COAXIAL
IN
OUT
(
10/100
)
IN
1
IN
2
4
IN
OUT
WAN
321
LAN
LAN cable
(sold separately)
to LAN port
Router
Modem
Internet
PC
CONTROL ON
/
OFF
MASTER
VOLUME
MCACC
SETUP MIC
VIDEO CAMERA
iPod
iPhone
USB HDMI 5
