Connecting your equipment 03
23
En
English
Français
Deutsch
Nederlands
Italiano
Español

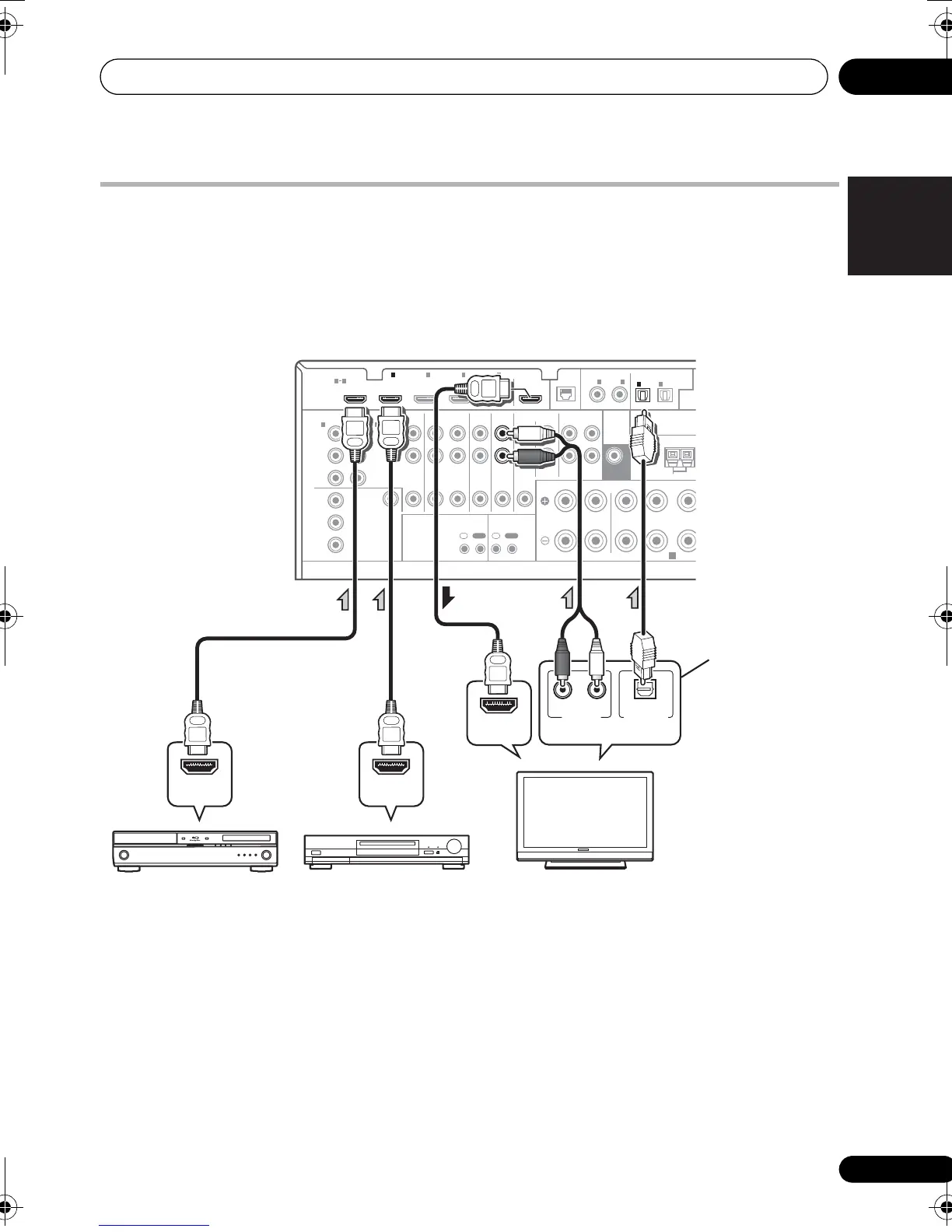

Connecting your TV and playback components
Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped component (BD: Blu-ray disc player, etc.), you
can connect it to this receiver using a commercially available HDMI cable.
If the TV and playback components support the Control with HDMI feature, the convenient
Control with HDMI functions can be used (see Control with HDMI function on page 62).
• For input components, connections other
than HDMI connections are also possible
(see Connecting your DVD player with no
HDMI output on page 25).
• If you want to listen to the sound of the TV
over the receiver, connect the receiver and
TV with audio cables.
HDMI
ASSIGNABLE
P
B
P
R
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
(
DVD
)
(
DVR/BDR
)
(
DVD
)
Y
P
B
P
R
Y
P
B
P
R
Y
L
R
R
FRONT CENTER SURROUND
LR
ZONE 2
OUT
DVR/BDR
DVD
OUT IN
CD-R/TAPE
OUT ININ
CD
IN
TV/SAT
IN
VIDEO
IN
(
DVR/BDR
)
(
OUTPU
(
CD
)
SUBWOOFER
(
TV/SAT
)
AM LOOP
COMPONENT VIDEO
AUDIO
PRE OUT
ANTENNA
OPTICAL
VIDEO
IR CONTROL
SPEAKERS
MONITOR
OUT
LAN
COAXIAL
BD IN IN IN IN IN
OUT
(
10/100
)
IN
1
IN
2
1
IN
1
IN
2
1 4
2 3 4
IN
1
A
IN
2
IN
OUT
IN
OUT
HDMI IN
HDMI OUT HDMI OUT
DIGITAL OUT
OPTICAL
ANALOG
RL
AUDIO OUT
Other HDMI/DVI-
equipped component
HDMI/DVI-compatible
Blu-ray disc player
HDMI/DVI-compatible TV
Select one
This connection is
required in order to
listen to the sound of
the TV over the receiver.
VSX-1020_UC.book 23 ページ ２０１０年１月７日 木曜日 午後６時０分
