7.57
FINAL DRIVE
7

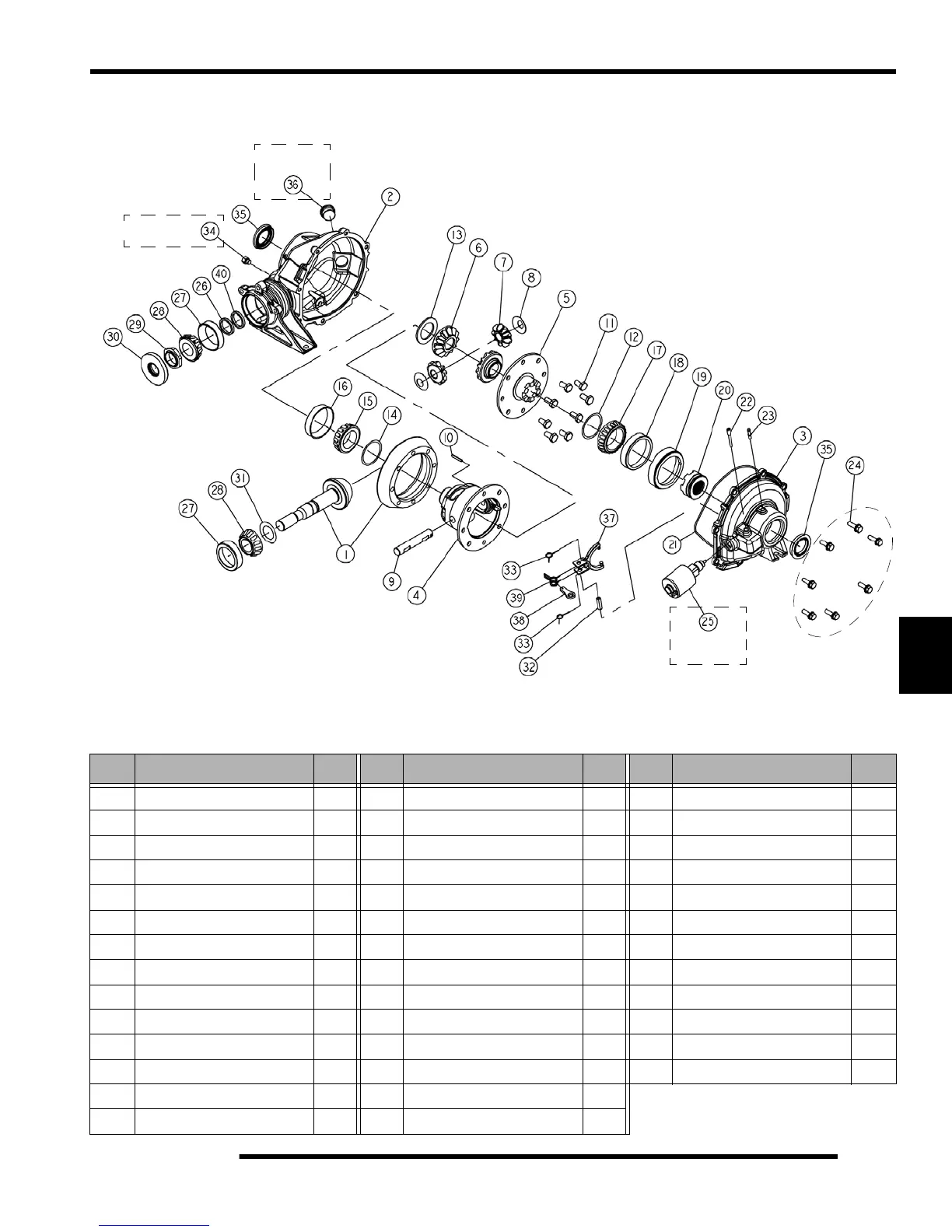

Rear Gearcase Exploded View (4x4 CREW)
REF# DESCRIPTION QTY REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Hypoid Gear Assembly 1 15 Bearing Cone - Diff 1 29 Pinion Nut 1
2 Carrier Housing Half 1 16 Bearing Cup - Diff 1 30 Oil Seal - Pinion 1
3 Carrier Cover Half 1 17 Bearing - Roller 1 31 Pinion Thrust-Washer AR
4 Diff Case Half 1 18 Bearing - Cup 1 32 Lock Pin Bushing 1
5 Diff Case Cover Half 1 19 Bearing Assembly - Collar 1 33 Shift Return Spring 2
6 Diff Side Gear 2 20 Clutch Gear 1 34 Drain Plug 1
7 Diff Pinion Mate Gear 2 21 O-Ring - Housing Halves 1 35 Oil Seal - Shaft 2
8 Pinion Mate Thrust-Washer 2 22 Lock Assembly Pin 1 36 Fill Plug 1
9 Diff Cross Pin 1 23 Vent Tube 1 37 Shift Yoke 1
10 Diff Roll Pin 1 24 Flanged Hex Bolt - Housing 7 38 Shift Lever 1
11 Hex Bolt - Ring Gear 8 25 Diff Solenoid 1 39 Shift Lever Spring 1
12 Diff Case Thrust-Washer AR 26 Spacer - Kit AR 40 Pinion Spacer 1
13 Side Gear Thrust-Washer 1 27 Bearing Cup - Pinion 2
14 Diff Case Thrust-Washer AR 28 Bearing Cone - Pinion 2
30-45 in. lbs.
(3-5 Nm)
40-50 ft. lbs.
(54-68 Nm)
25-35 ft. lbs.
(34-48 Nm)
30-40 ft. lbs.
(41-54 Nm)
