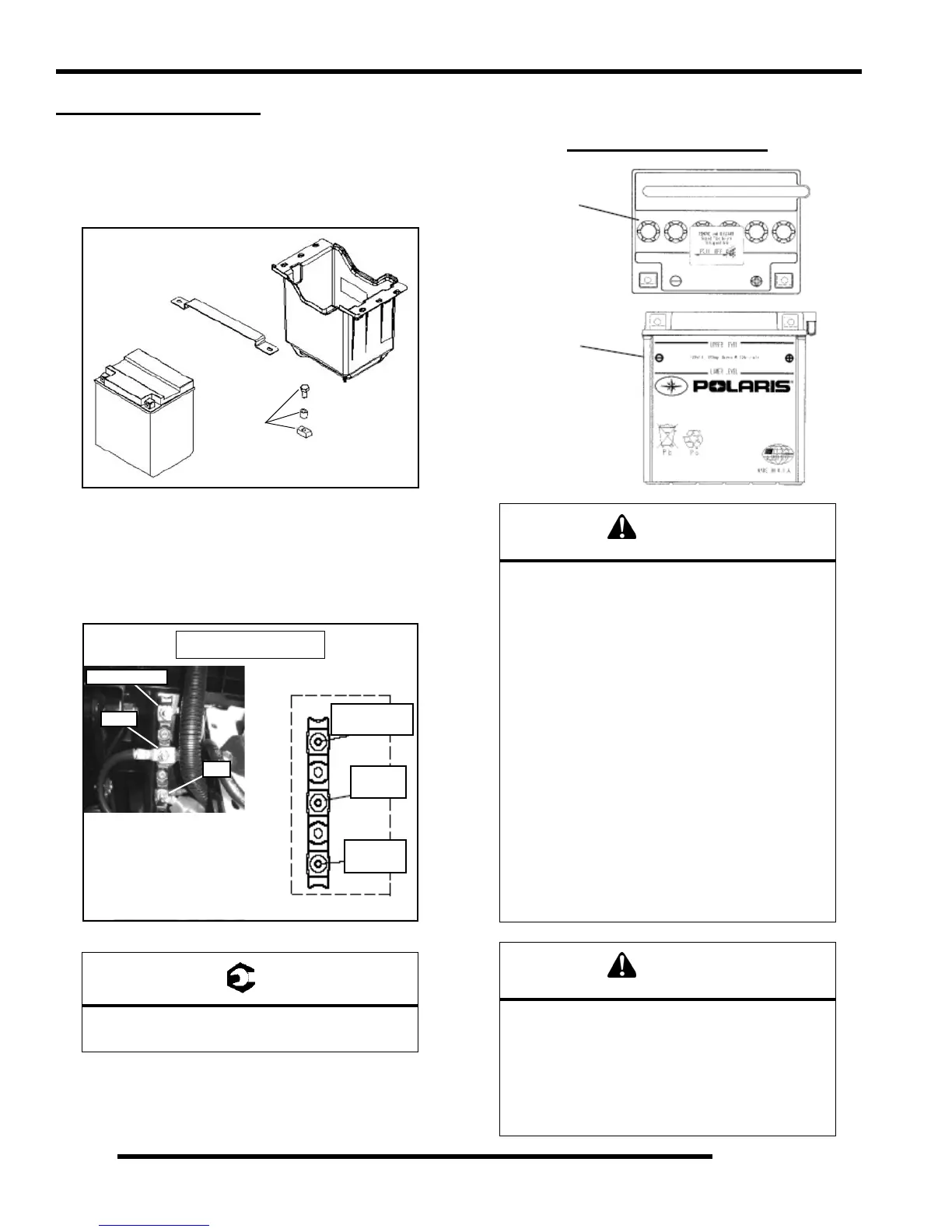

10.26
ELECTRICAL
BATTERY SERVICE
Battery Terminals / Bolts
Use Polaris corrosion resistant Nyogel™ grease (PN 2871329)
on battery terminal bolts.
Battery Terminal Block
The terminal block is located under the front hood next to the
battery. The terminal block provides easy access to the main
battery and starting cables. The terminal block also provides
easy hookup for accessories.
Battery Activation
= T
Terminal Block Nuts:
20-25 in. lbs. (2.3-2.8 Nm)
Apply
Nyogel™
TERMINAL BLOCK
Orange/White
Black
Red
Orange/White
(Accessories)
Black
(Ground)
Red
(Battery+)
WARNING
Battery electrolyte is poisonous. It contains
sulfuric acid. Serious burns can result from
contact with skin, eyes or clothing. Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk.
Follow with milk of magnesia, beaten egg, or
vegetable oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes etc. away. Ventilate
when charging or using in an enclosed space.
Always shield eyes when working
near batteries.
KEEP OUT OF REACH OF CHILDREN.
WARNING
The gases given off by a battery are explosive.
Any spark or open flame near a battery can
cause an explosion which will spray battery acid
on anyone close to it. Should there be contact
with battery acid, wash the affected area with
large quantities of cool water and seek
immediate medical attention.
CONVENTIONAL BATTERY
Top View
Electrolyte Level
Side View
Removable
Caps
Indicator
