9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

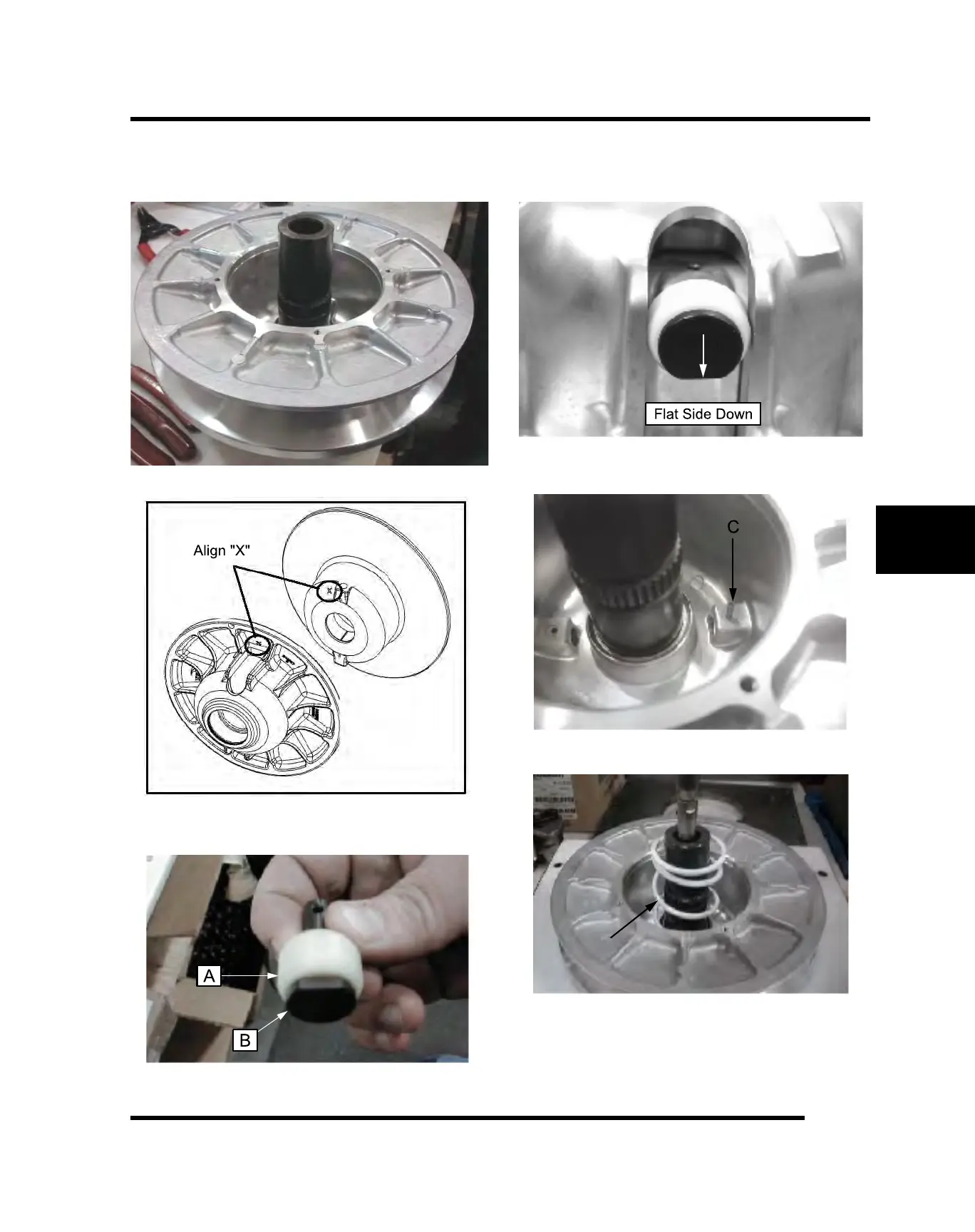

3. Line up the “X” on the moveable sheave with the “X”
on the stationary sheave or use the marks previously
used. Put the sheaves together.
4. Install the roller (A) onto the roller pin (B) on both
sides.
5. Install the roller pin into the sheave assembly on both
sides. The flat side of the roller pin faces downward
when the shaft side is laying flat on the bench.
6. Install the spring pins (C) to secure the roller pins.
Install until flush with sheave surface.
7. Install the spring over the shaft.
8. Install the clutch rollers (D) onto each side of the
outside spider. Install the washers (E) and E-clips (F)
to secure the rollers. The rollers should spin freely.
