7.54
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

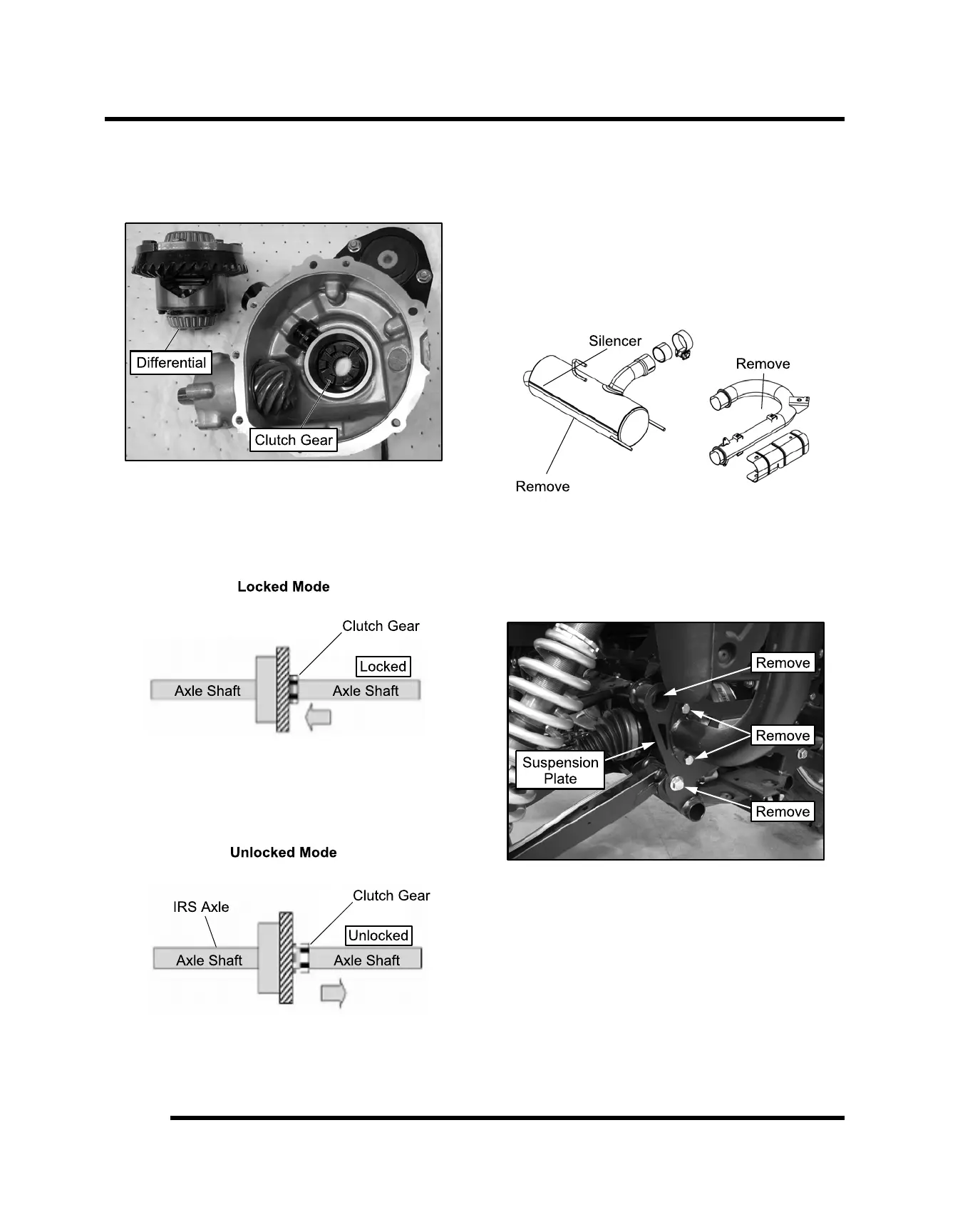

When the clutch gear is unlocked the rear drive shafts
are dependent on the differential allowing tighter turns.
When it’s locked it becomes a solid rear axle increasing
traction.
Gearcase Removal
1. Drain the fluid from the rear gearcase and remove
the rear drive shafts from each side of the rear
gearcase.
See “REAR DRIVE SHAFT”, page 7.35
2. Remove the exhaust pipe and exhaust silencer to
allow for gearcase removal.
3. Remove upper A-arm bolts, lower rear A-arm bolts
and suspension plate. NOTE: If accessory rear
rack cab frame is installed, remove the (4) bolts
retaining it to the suspension plate (see photo).
FINAL DRIVE
