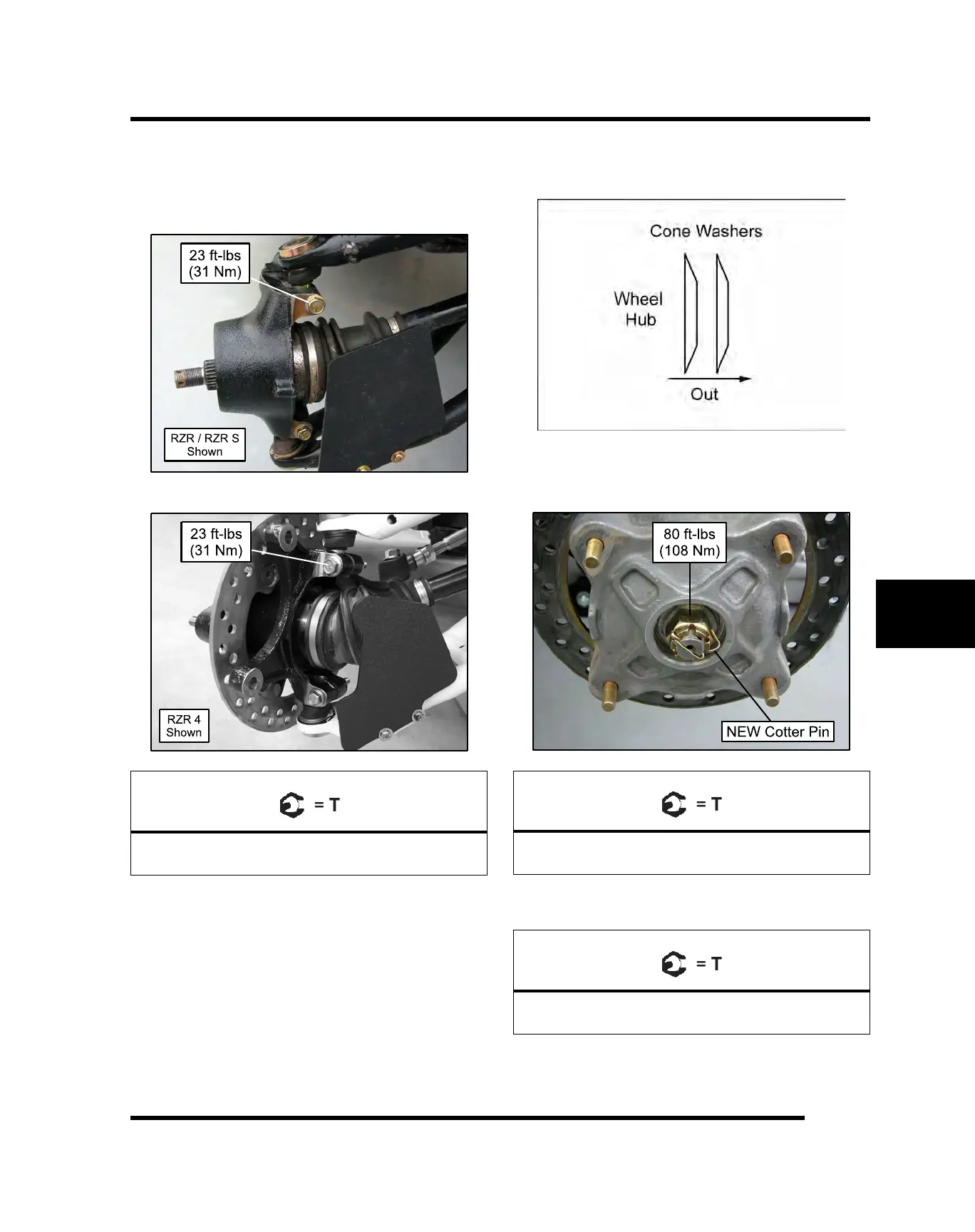

4. Install the upper ball joint end into the front bearing
carrier.
5. Install the upper pinch bolt and torque to
specification.
Ball Joint Pinch Bolts:
23 ft-lbs (31 Nm)
6. Apply grease to drive shaft axle splines.
7. Install front wheel hub assembly, cone washers, and
hand tighten the castle nut. Install washers with
domed side out.
8. Torque wheel hub nut to specification and install a
new cotter pin. Tighten nut slightly if necessary to
align cotter pin holes.
Wheel Hub Castle Nut:
80 ft-lbs (108 Nm)
9. Install brake caliper mounting bolts and torque to
specification.
Front Caliper Mounting Bolts:
31-34 ft-lbs (42-46 Nm)
