Ricoh SR5050 User Manual

Stapler Rotation Motor

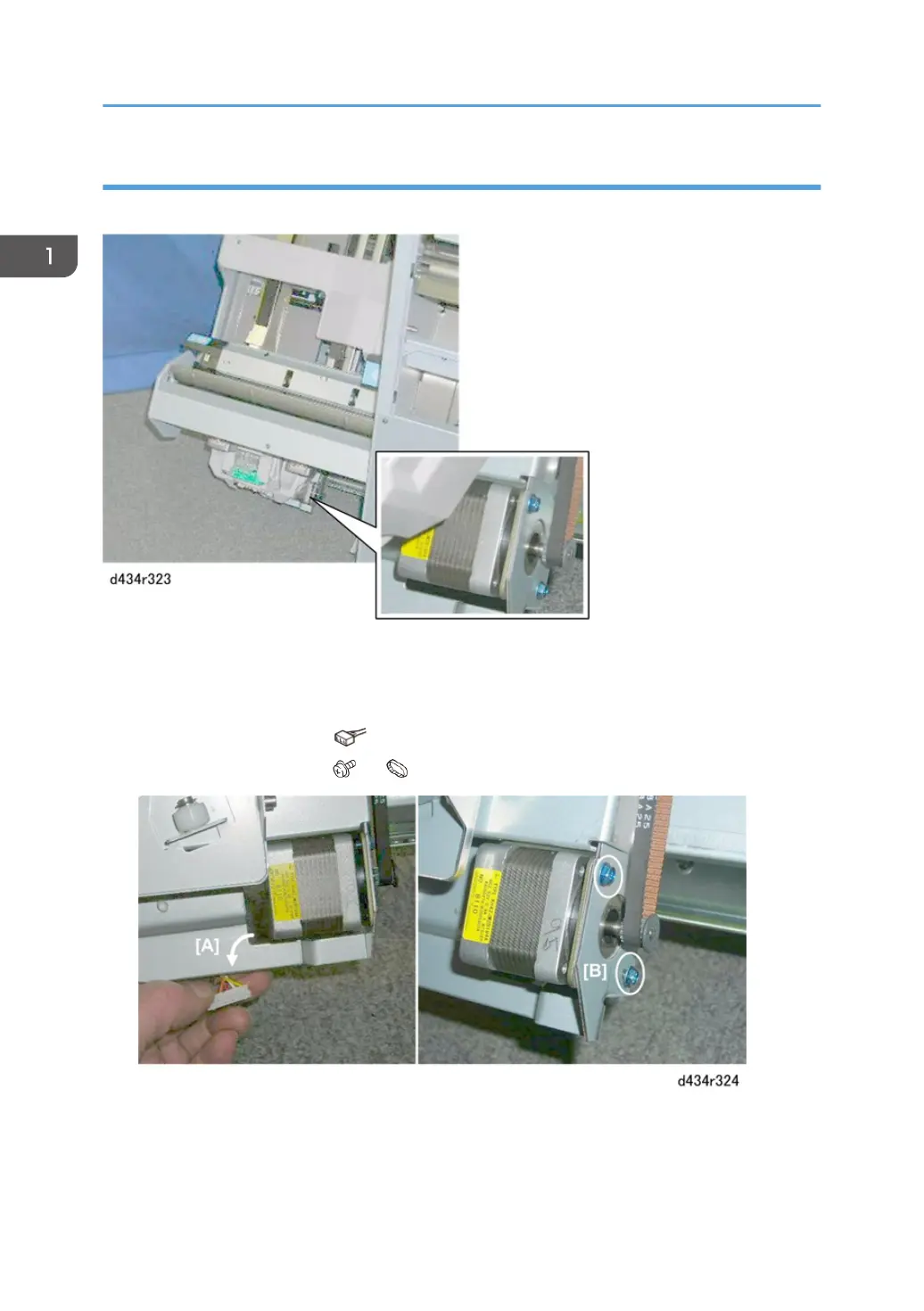

You can see the stapler rotation motor on the bottom of the corner stapler unit next to the corner stapler.
Preparation
• Open the front door.
• Pull out the stack/staple unit with handle Rb12.
1. Disconnect the motor at [A] ( x1).
2. Disconnect the motor at [B] ( x2, x1).
3. Remove the motor.
1. Replacement and Adjustment
118
