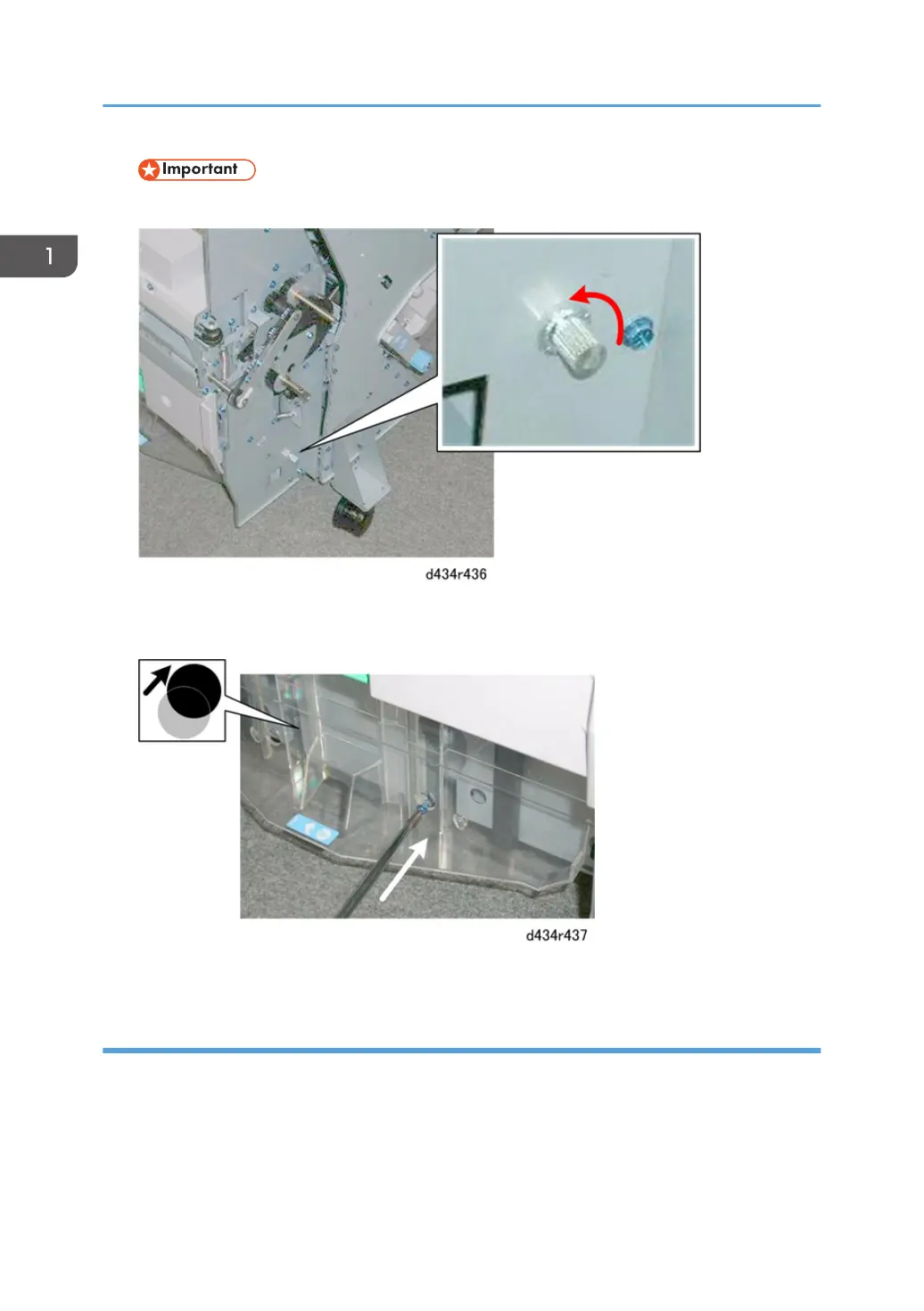

• Every notch adjusts the height 0.1 mm.
Turning the adjustment screw to the right may raise the rear fence so the holes at the rear will no
longer be aligned.
2. Re-attach the screw in the front hole where the holes are aligned.
[B] Adjustment: Front Fence Low
1. For [B] type skew, turn the adjustment screw on the front of the booklet unit to the right (clockwise)
to raise the front fence.
1. Replacement and Adjustment
176
