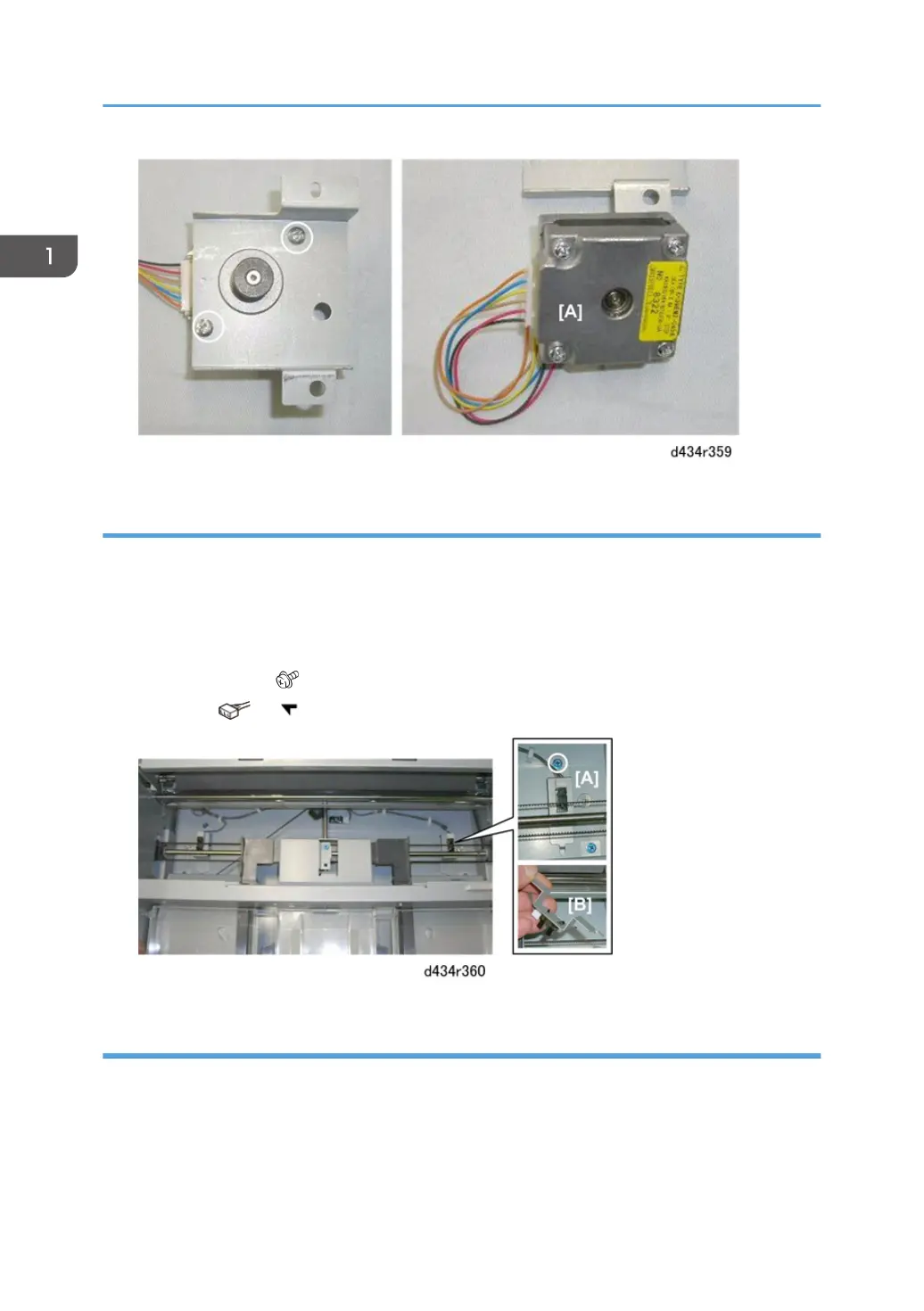

Booklet Stapler Side Fence HP Sensor (Front)
Preparation
• Booklet unit page 29)
• Booklet stapler (page 28)
1. Remove:
[A] Sensor bracket ( x1)
[B] Sensor ( x1, x5)
Booklet Stapler Jogger HP Sensor (Rear)
Preparation
• Booklet unit (page 29)
• Booklet stapler (page 28)
1. Remove:
1. Replacement and Adjustment
138
