Pre-Stack Release Motor, Pre-Stack Roller HP Sensor

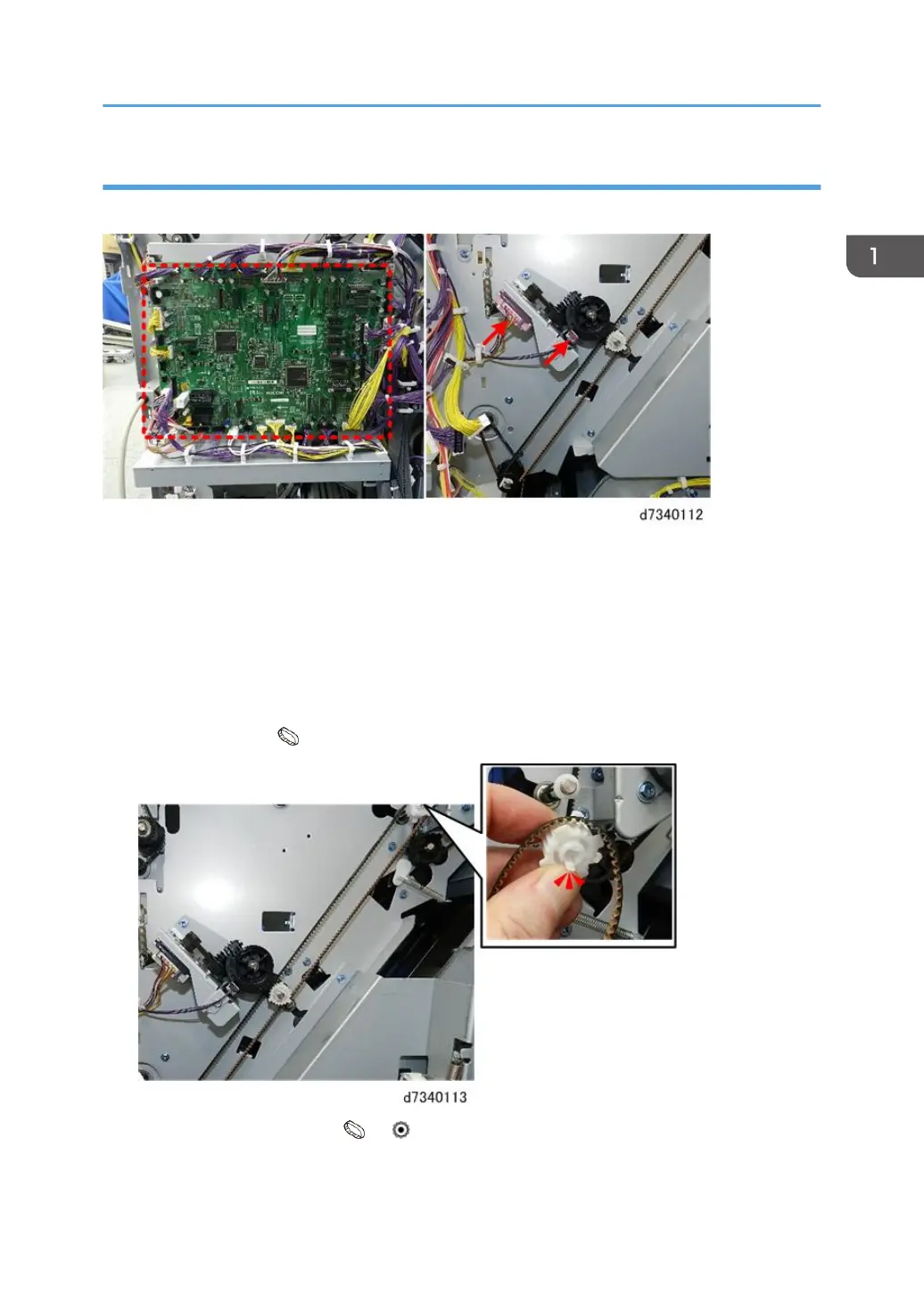

The pre-stack release motor and pre-stack roller HP sensor are behind the main board.

Preparation

Remove:

• Rear upper cover (page 15)

• Rear lower cover (page 16)

• Main board (page 159

Pre-stack Release Motor

1. Remove upper belt ( x1). The white gear can be released by a tab with your fingernail.

2. Remove lower belt and gear ( x1, x1). The white gear can be released by a tab with your

fingernail.
