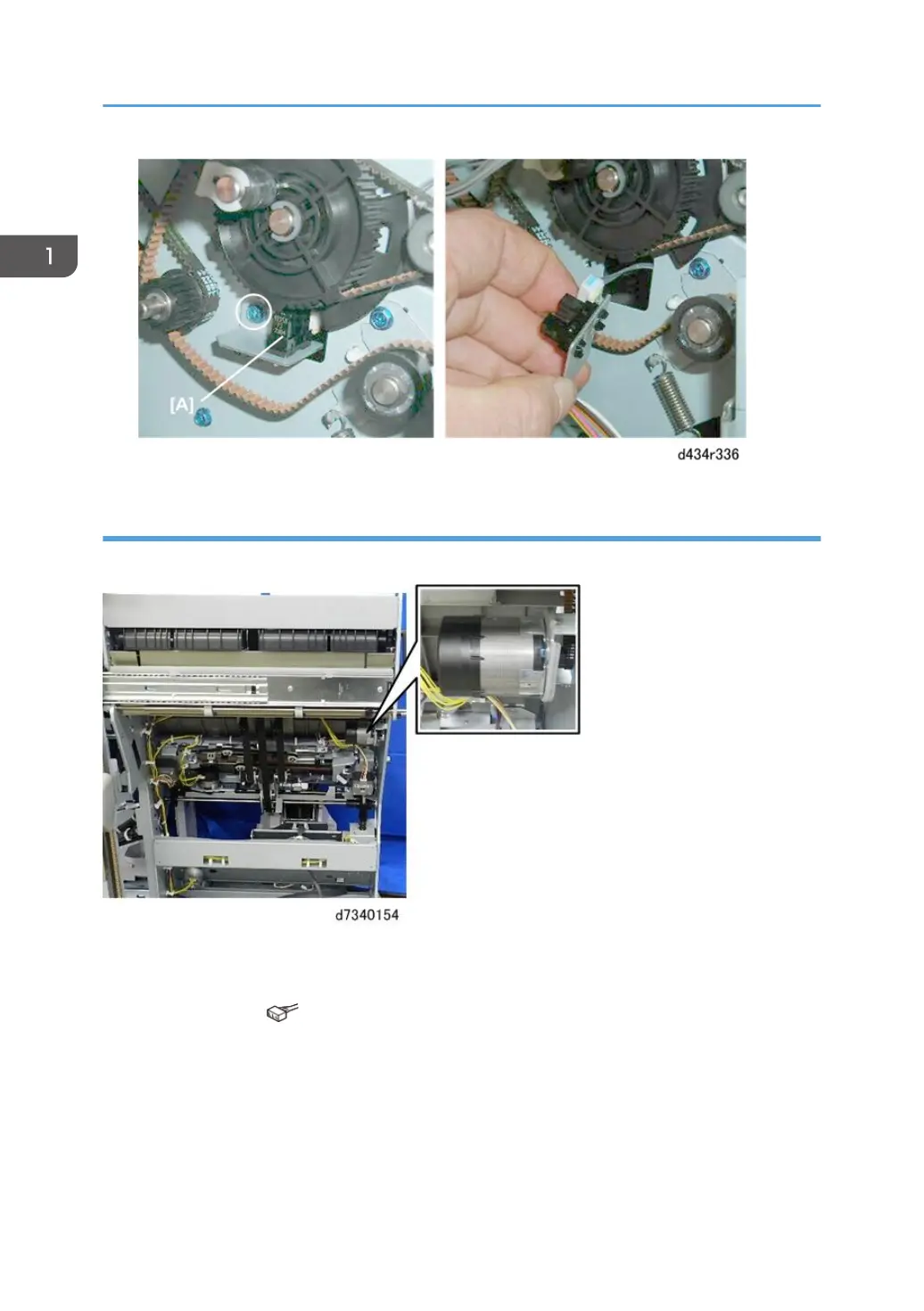

Stack Feed-Out Belt Motor
The stack feed-out belt motor is behind the front plate of the corner stack/staple unit.
Preparation
• Booklet unit (page 29)
1. Disconnect motor ( x1).
1. Replacement and Adjustment
126
