Booklet Folding
Fold Roller Motor

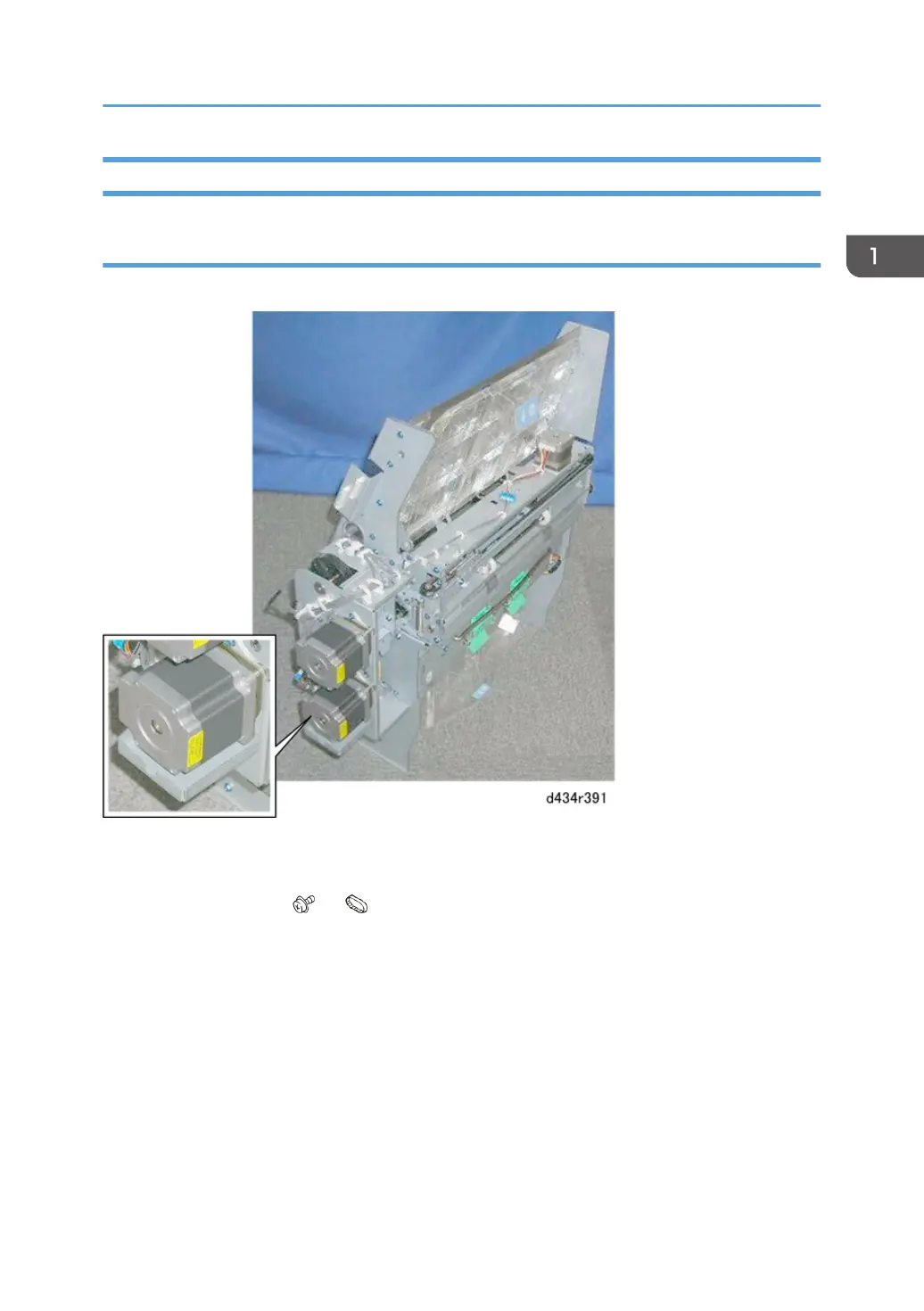

The fold plate motor is on the back of the booklet unit, below the fold roller motor.
Preparation
• Booklet unit (page 29)
1. Disconnect motor [A] ( x2, x1).
Booklet Unit
153
