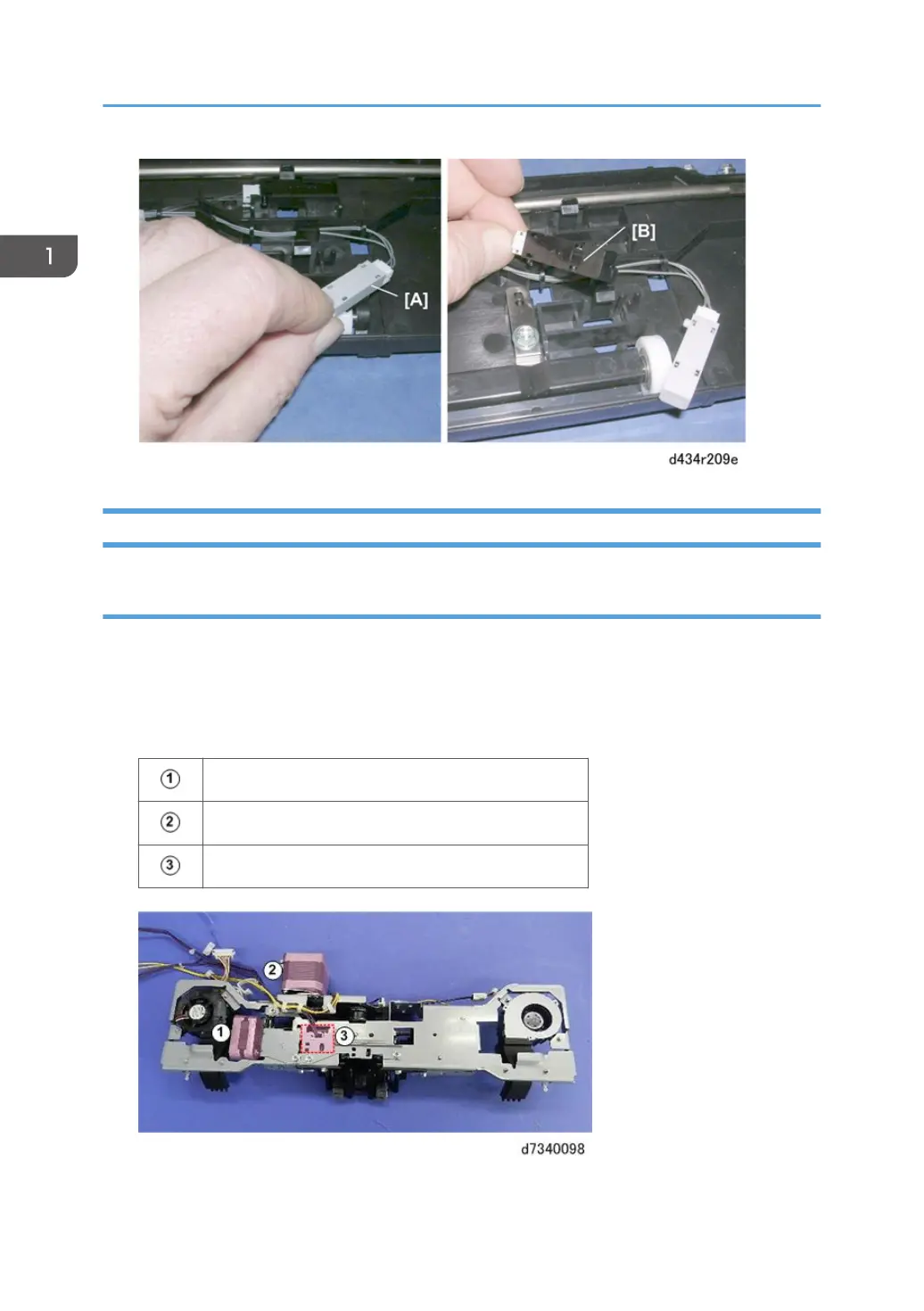

Drag Roller Motors, Sensors
Preparation
Remove:
• End fence (page 20)
• Drag roller unit (page 41)
These three components require removal of the drag roller unit.
Drag roller motor
Drag roller drive motor
Drag roller HP sensor
1. Replacement and Adjustment
70
