Ricoh SR5050 User Manual

Booklet Top Fence HP Sensor
Preparation
• Booklet unit (page 29)

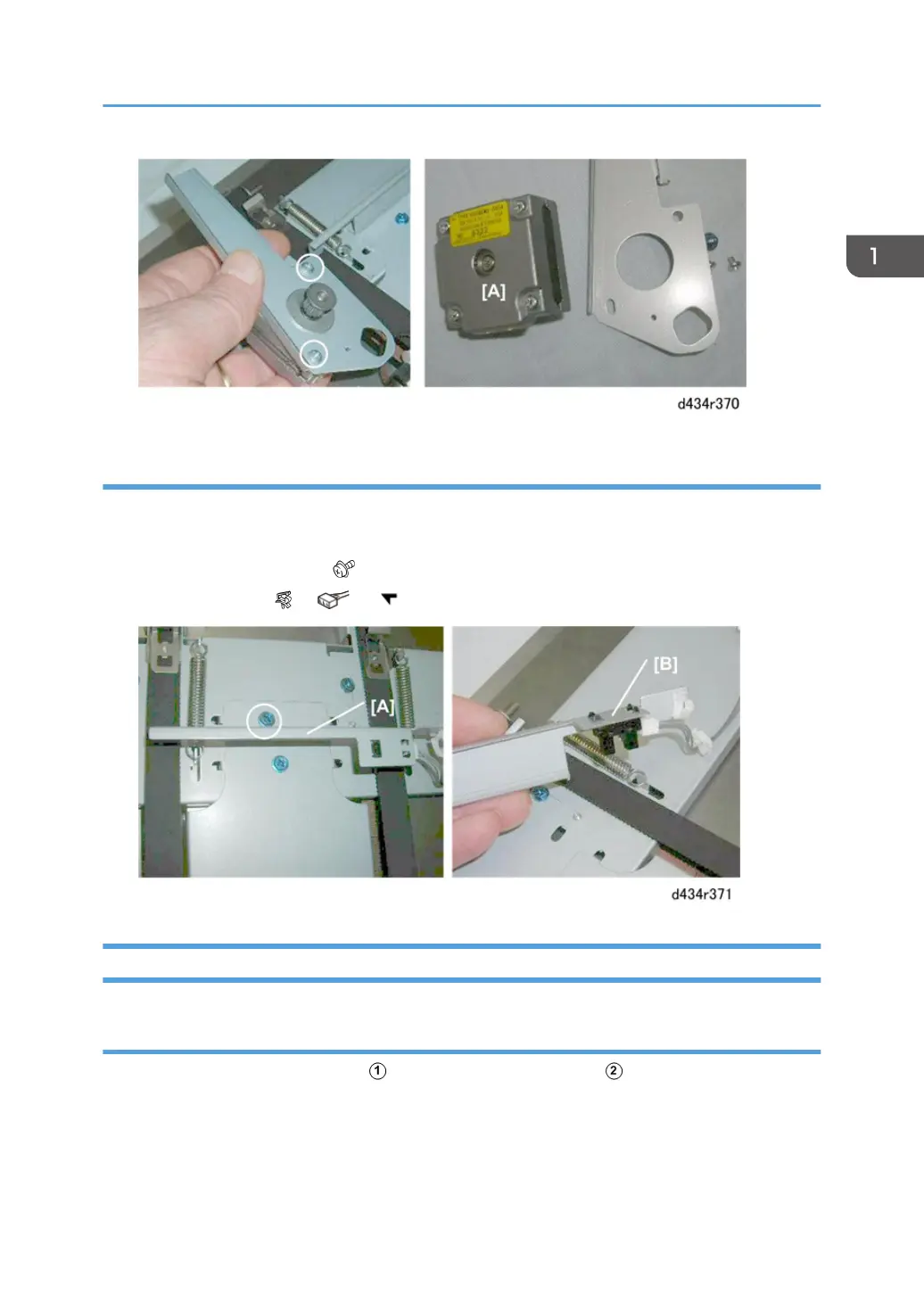

1. Remove sensor bracket [A] ( x1).
2. Remove sensor [B] ( x1, x1, x5)
Booklet Press for Stapling
Booklet Stapler Clamp Roller Motor, Booklet Stapler Exit Sensor
The booklet stapler clamp roller motor and booklet stapler exit sensor cannot be removed until the
motor base has been removed.
Booklet Unit
143
