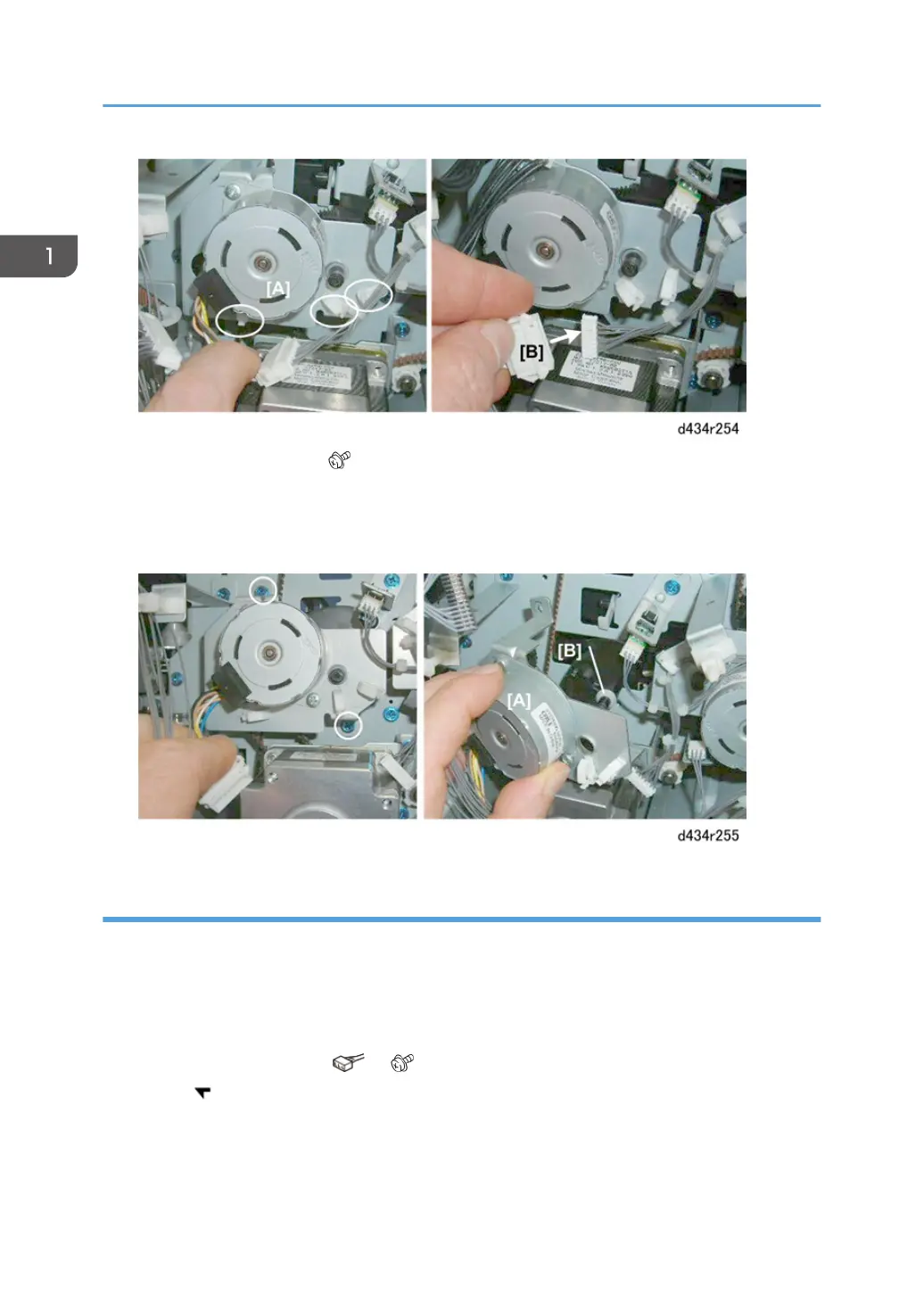

3. Remove motor bracket [A] ( x2)
• Slowly, pull the bracket away.
• Make sure the Teflon collar [B] does not fall off the end of the junction gate shaft. Remove it so
that it does not accidentally slip off the end of the shaft.
Stapler JG HP Sensor
Preparation
Remove:
• Rear upper cover (page 16)
• Punch unit PCB (page 161)
1. Remove sensor bracket [A] ( x1, x1).
2. Sensor ( x5).
1. Replacement and Adjustment
98
