Ricoh SR5050 User Manual

Lower Inner Cover: Rb10, Rb11

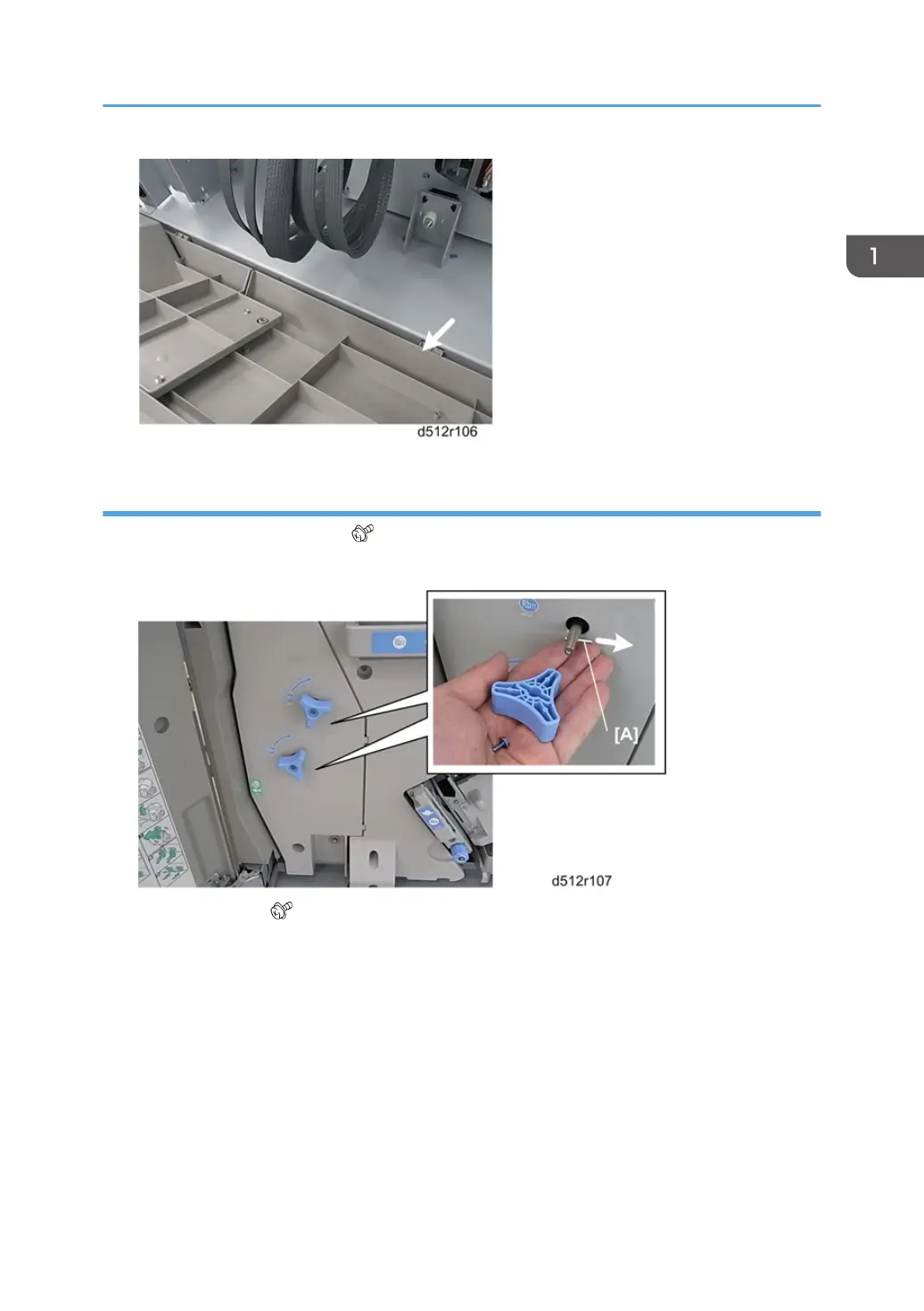

1. Remove handles Rb11, Rb12 ( x1 each, Pin x1 each).
2. Make sure that the pins [A] are removed and stored with the screws.
3. Remove the cover ( x2, Tabs x2).
Common Procedures
17
