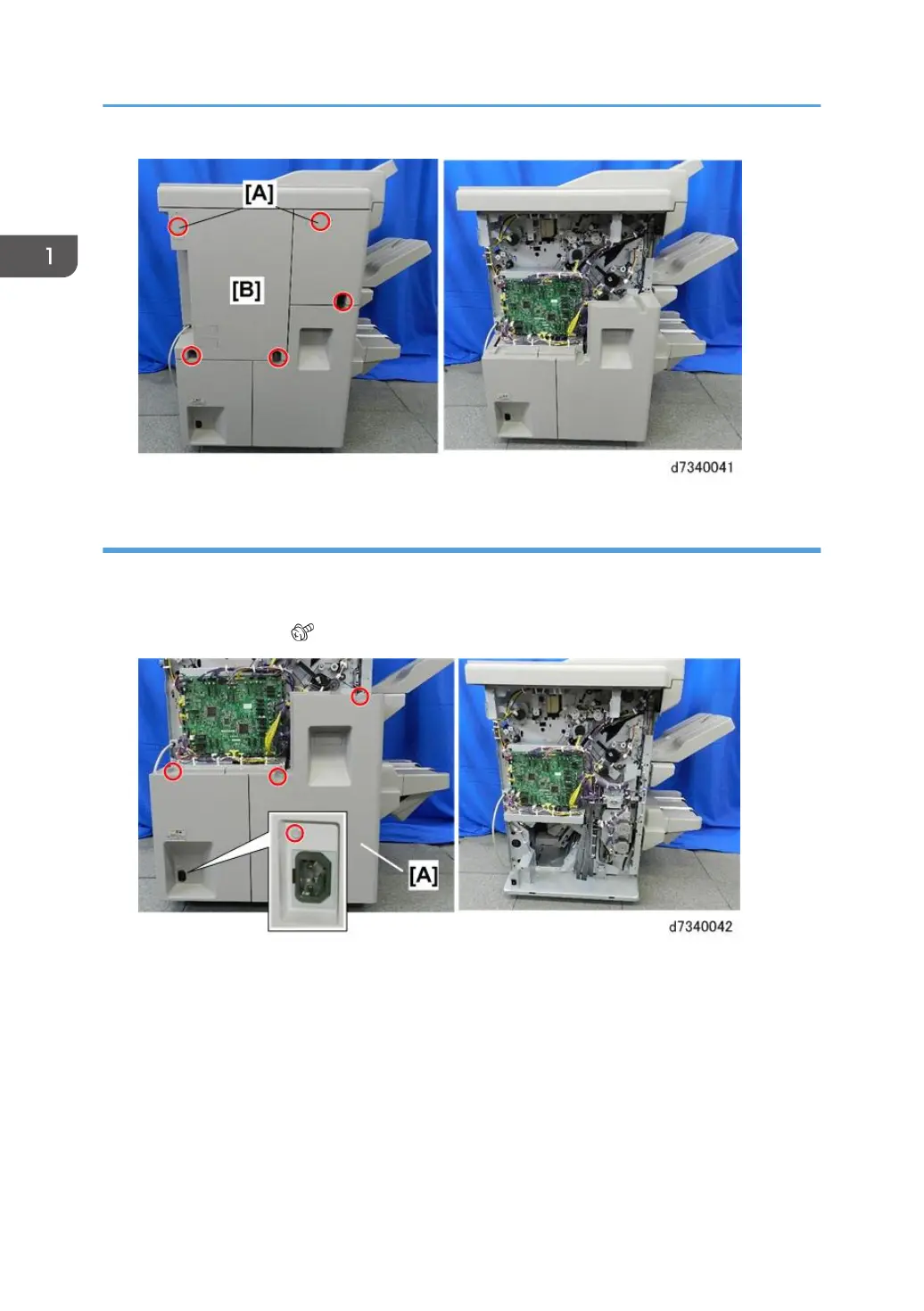

Rear Lower Cover

Preparation

• Rear upper cover

1. Rear lower cover [A] ( x4). The screw near the power connection point is difficult to see.

Re-installation

1. Engage both tabs on the bottom of the rear lower cover before fastening the screws.

1. Replacement and Adjustment
