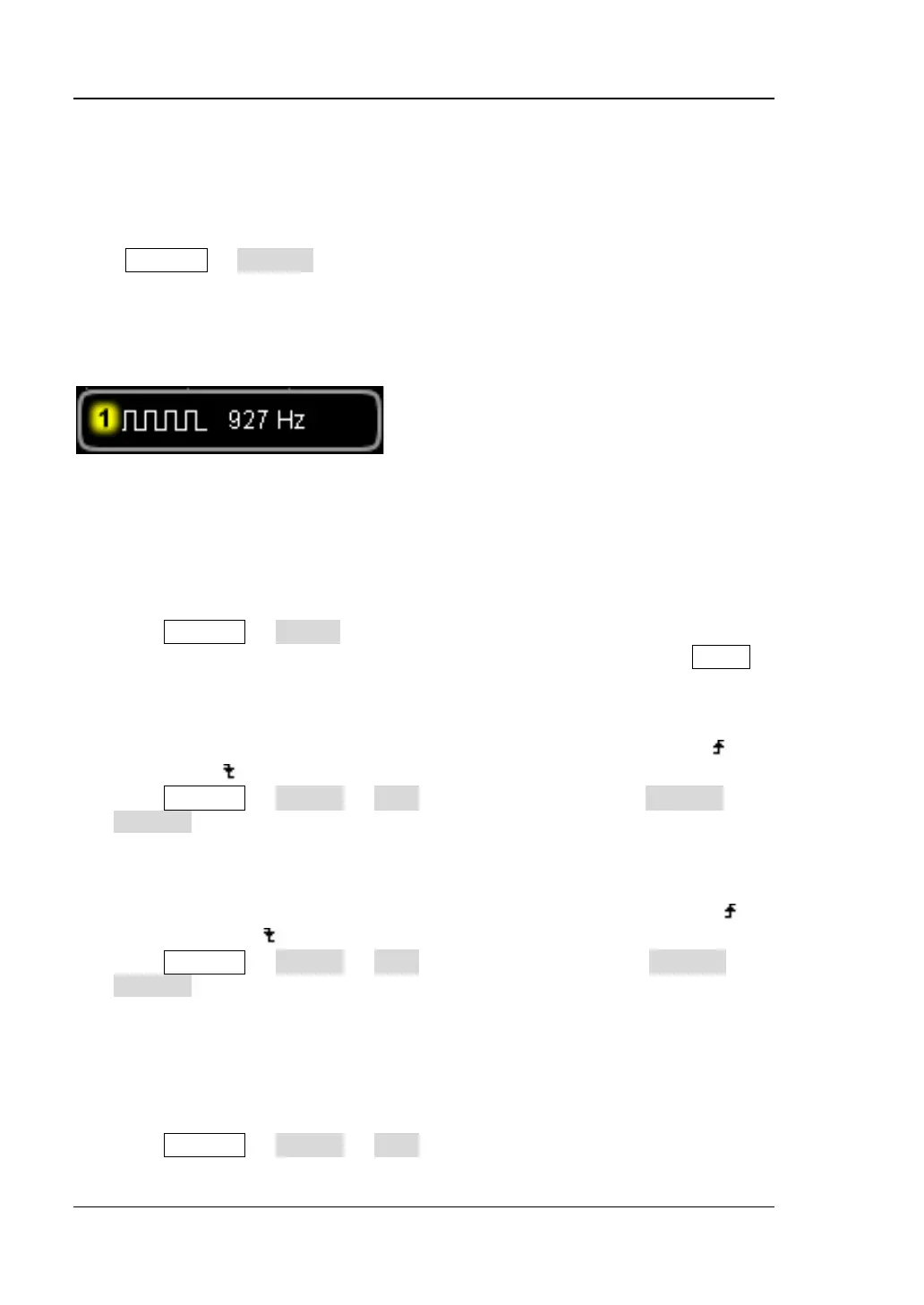

Frequency Counter Measurement
The hardware frequency counter supplied with MSO1000Z/DS1000Z oscilloscope can
make more precise measurement of the input signal frequency.
Press Measure  Counter to select CH1-CH4 or D0-D15 as the measurement
source. The measurement result is displayed at the upper right corner of the screen
and you can identify the current measurement source according to the color of the
icon and channel number. The following figure is the result of the frequency
measurement of the input signal of CH1.
Select “OFF” to disable the frequency counter measurement function.
Measurement Setting
 Source Selection
Press Measure  Source to select the desired channel for measurement
(CH1-CH4, MATH or D0-D15). The color of the parameter icons under MENU at
the left of the screen will change with the source selected.
 Delay Measurement Setting
Specify the source1 and source2 in the measurement items “Delay 1→2 ” and
“Delay 1
→2 ”.
Press Measure  Setting  Type  “Delay” and then press SourceA and
SourceB to set the two channel sources (CH1-CH4 or D0-D15) of delay
measurement respectively.
 Phase Measurement Setting
Specify the source1 and source2 in the measurement items “Phase 1→2 ”
and “Phase 1
→2 ”.
Press Measure  Setting  Type  “Phase” and then press SourceA and
SourceB to set the two channel sources (CH1-CH4 or D0-D15) of phase
measurement respectively.
 Threshold Measurement Setting
Specify the upper limit, lower limit and middle value of the auto measurement of
the analog channel. Measurements of all the time, delay and phase parameters
will be influenced by this setting.
Press Measure  Setting  Type  “Threshold” and then:
