RIGOL Chapter 6 MATH and Measurement
6-30 MSO1000Z/DS1000Z User’s Guide
Table
Measurement Result Display Type

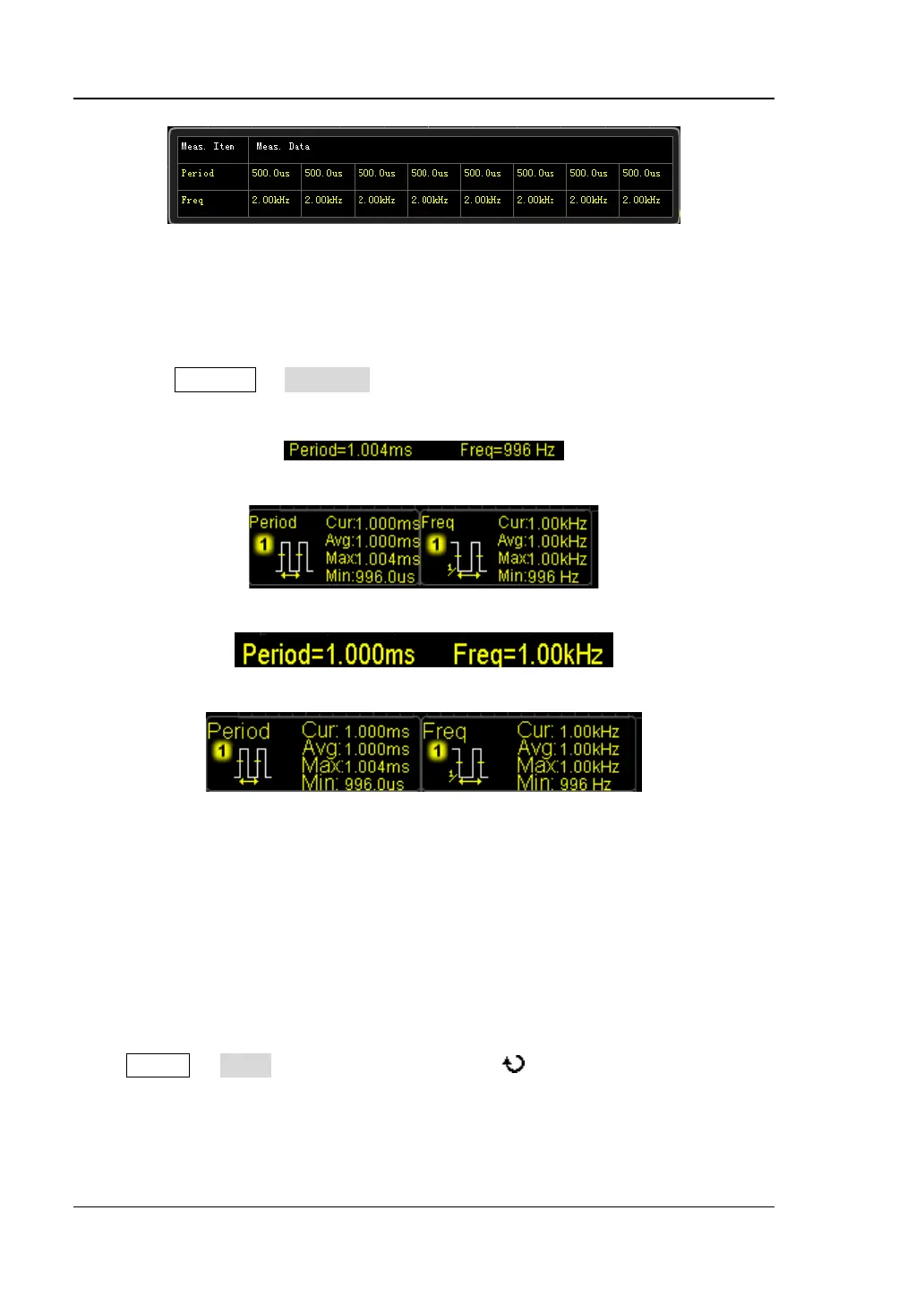

The measurement results can be displayed at the bottom of the screen in two font
sizes. Press Measure  Font Size to select “Normal” or “Large”. The display effects
are as shown in the figures below.
Normal (Statistic Function Disabled)
Normal (Statistic Function Enabled)
Large (Statistic Function Disabled)
Large (Statistic Function Enabled)
Cursor Measurement
Cursor measurement can measure the X axis values (usually Time) and Y axis values
(usually Voltage) of the selected waveform. Before making cursor measurement,
connect the signal to the oscilloscope and acquire stable display. All the “Auto
Measurement” parameters can be measured through cursor measurement.
Press Cursor  Mode at the front panel and use to select the desired cursor
mode (the default is “OFF”) and then press down the knob. The modes available are
“Manual”, “Track” and “Auto”. When the
Time Base Mode is set to XY, you can
select the XY cursor measurement mode.
