RIGOL Chapter 15 Accessibility Setting
15-2 MSO1000Z/DS1000Z User’s Guide
Remote Interface Configuration
MSO1000Z/DS1000Z provides three remote control interfaces: USB Device (TMC and
SICD static image capture devices share this port), LAN and GPIB (expanded from
the USB HOST interface by the USB-GPIB interface converter). The priority order of
the three ports is USB Device, LAN and GPIB. You can press Utility  IO Setting
 RemoteIO to select the desired communication interface according to the
particular condition.

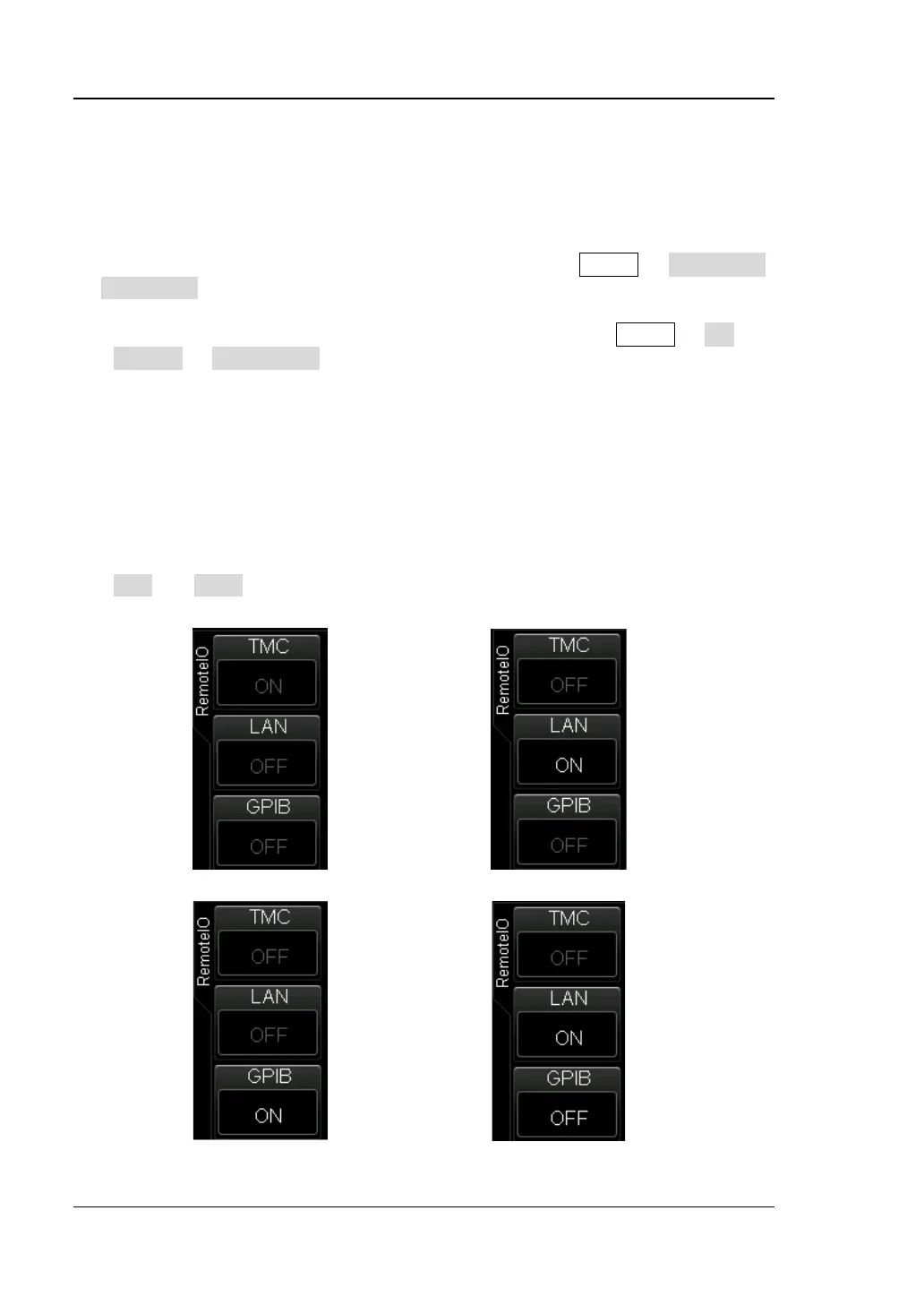

 When only the USB-Device interface is connected and press Utility  IO
Setting  USB Device ”Computer”, the system will select the USB-Device
interface automatically as the only valid port no matter whether the LAN and
GPIB interfaces are connected or not. At this point, the RemoteIO menu is
disabled as shown in figure (a).
 When only the GPIB or LAN interface is connected, the system will automatically
detect the corresponding port of which the display status is “ON”. At this point,
pressing the correnponding key can turn on or off the remote connection. The
RemoteIO menu is as shown in figure (b) and figure (c).
 When GPIB and LAN are connected at the same time, the system will set LAN
(the display status is “ON”) as the current control port by default. At this point,
LAN and GPIB are available. You can select the communication interface
according to the needs. The RemoteIO menu is as shown in figure (d).
Figure (a) Figure (b)
Figure (c)
Figure (d)
