LAN Configuration
Press Utility  IO Setting  LAN Conf. to turn on the LAN setting interface. You
can view the network connection status and configure the network parameters.

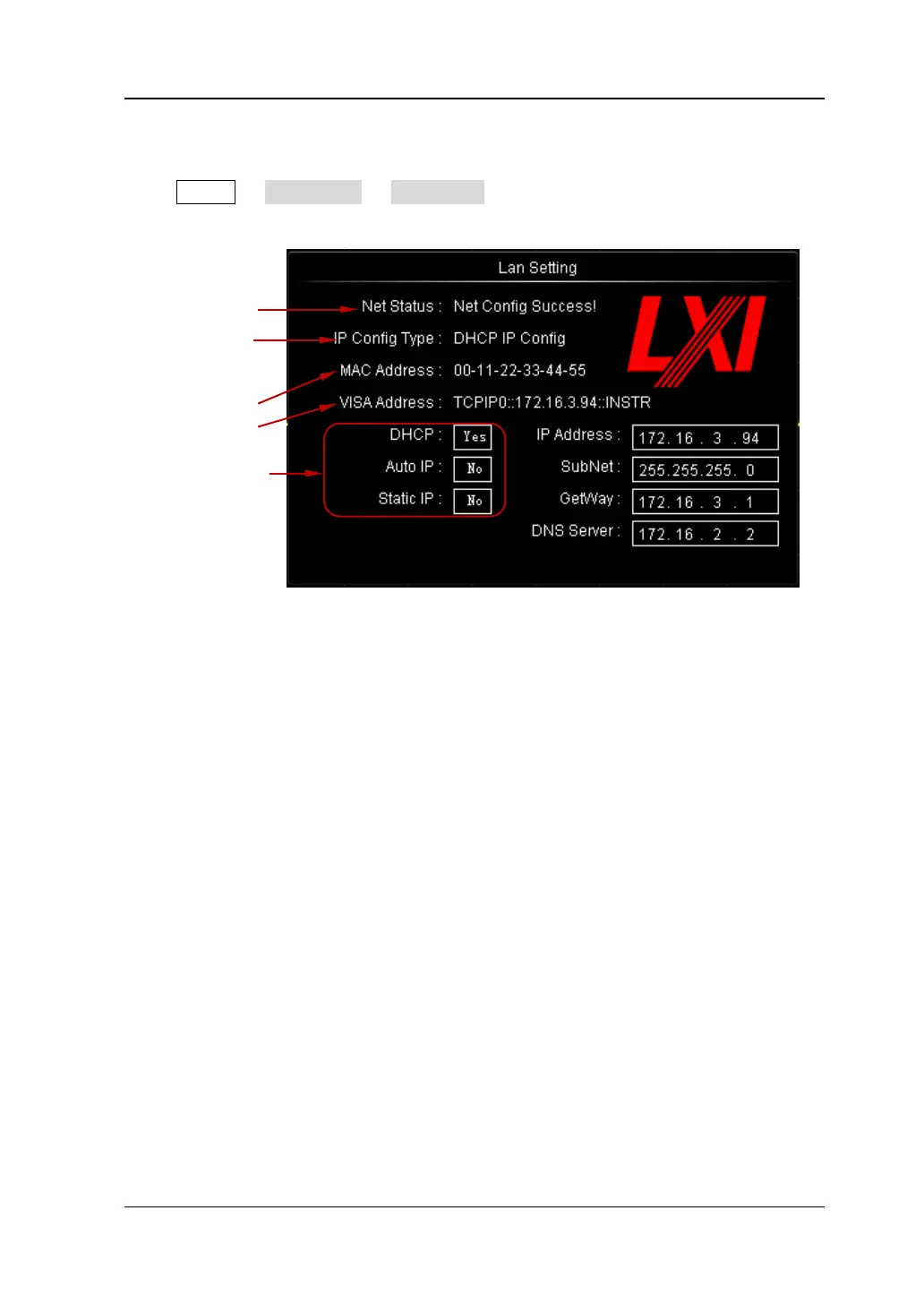

Figure 15-1 LAN Setting Interface
Network Status
Connect the oscilloscope to your local area network using a network cable. The
network interface of the oscilloscope is at the rear panel. The oscilloscope will give
different prompts according to the current network connection status.
 Net Config Success！
 Acquire IP...
 IP Conflict!
 Unconnected!
 DHCP Fail!
 Read Status Fail!
IP Configuration Type
The configuration type of the IP address can be DHCP, auto IP or static IP. In
different IP configuration type, the configuration mode of the network parameters
(such as the IP address) is different.
Network Status
Current IP
Config Type
MAC Address
VISA Address
IP Config Type
Status
