Chapter 1 Quick Start RIGOL
MSO1000Z/DS1000Z User’s Guide 1-5
Power-on Inspection
When the oscilloscope is energized, pressing the power key
at the lower-left
corner of the front panel can start the oscilloscope. During the start-up process, the
oscilloscope performs a series of self-tests. After the self-test, the welcome screen is
displayed. The instrument is installed with the trial versions of the options before
leaving factory and the remaining trial time is about 2000 minutes. The “Current
Options” dialog box will be displayed if your instrument currently installs the trial
versions of options. From this dialog box you can view the names, detail, versions
and the remaining trial time of the options currently installed.
To Connect the Probe
RIGOL provides passive probe for the DS1000Z series as well as passive probe and
logic probe for MSO1000Z series. For detailed technical information of the probes,
please refer to the corresponding Probe User’s Guide. The following are the probes
recommended for this oscilloscope.
150 MHz, passive probe, standard
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input terminal of
the oscilloscope at the front panel.
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal and connect the probe tip to the circuit point to be tested.

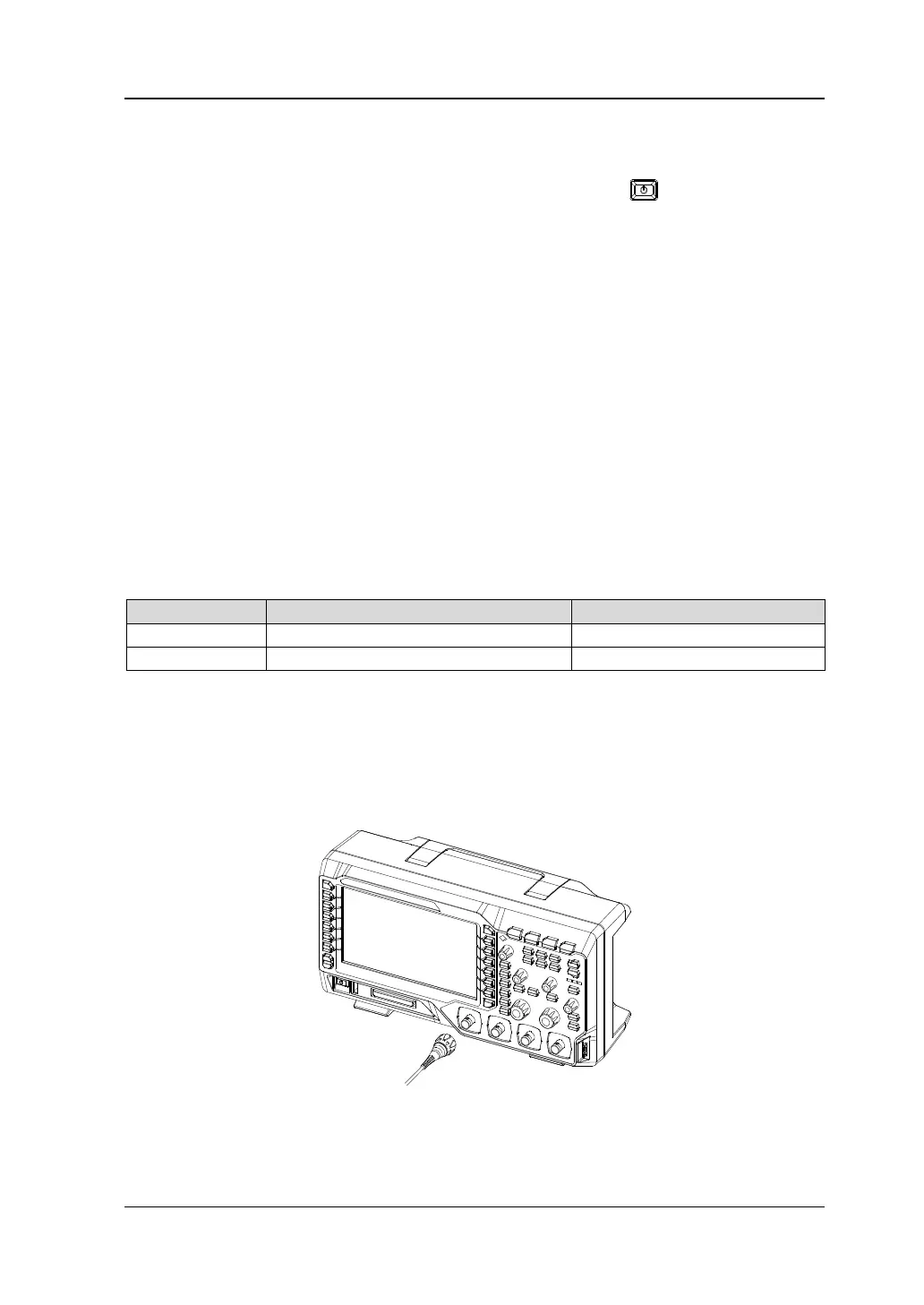

Figure 1-5 To Connect the Passive Probe
