RIGOL Chapter 16 Remote Control
16-2 MSO1000Z/DS1000Z User’s Guide
Remote Control via USB
1. Connect the device
Connect the USB Device interface of the oscilloscope at the rear panel with the
USB HOST interface of your PC using a USB cable
2. Install the USB driver
This oscilloscope is a USB-TMC device. Assuming that your PC has already been
installed with Ultra Sigma, after you connect the oscilloscope to the PC and turn
both on for the first time (the oscilloscope is automatically configured to USB

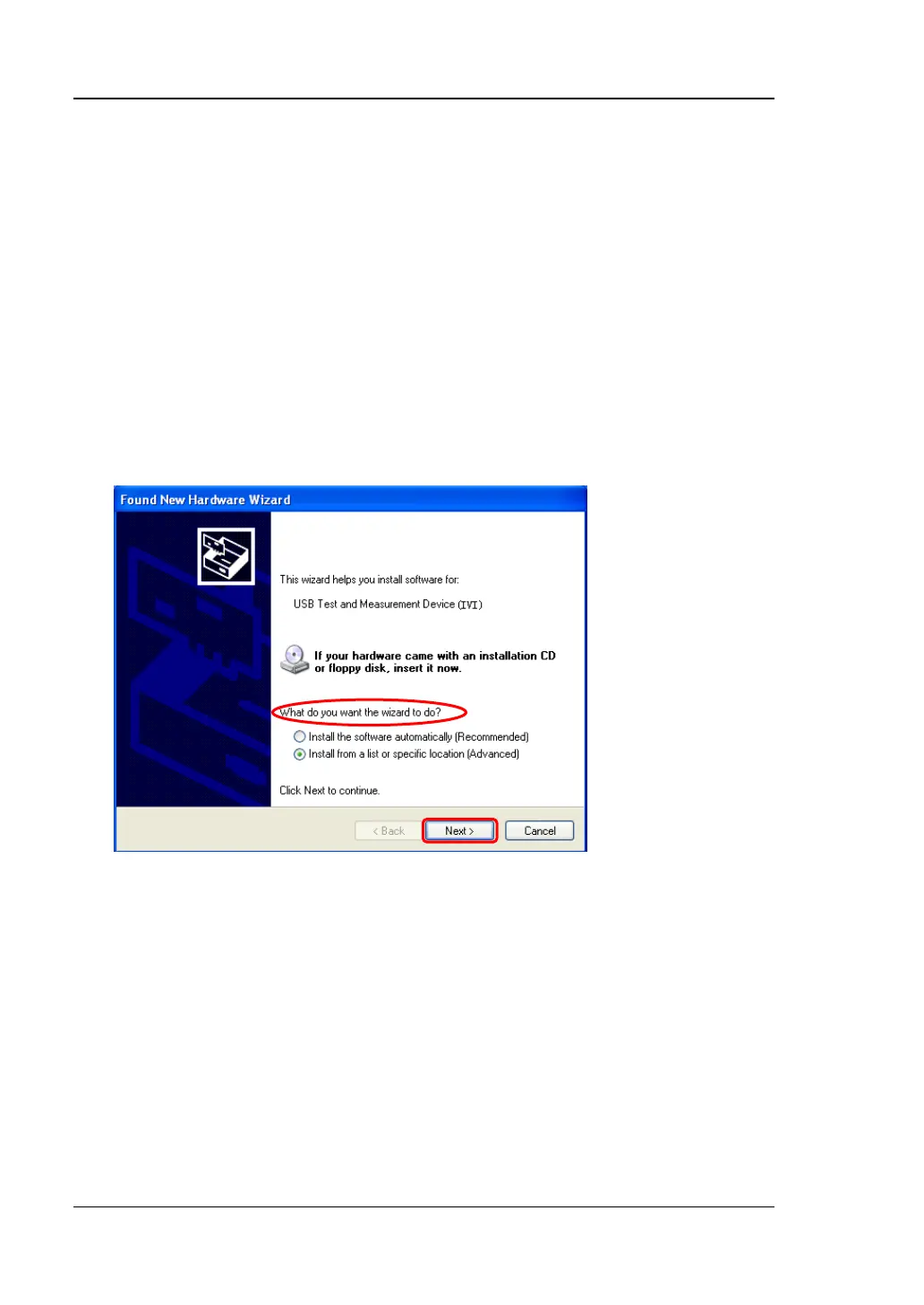

interface), the Found New Hardware Wizard as shown in the figure below is
displayed on the PC. Please install the “USB Test and Measurement Device (IVI)”
driver following the directions in the wizard. The steps are as follows.
To Next Page
